2016 Cadillac CTS ECM/PCM Replacement Guide
The Engine Control Module in a 2016 Cadillac CTS manages fuel delivery, ignition timing, and emissions monitoring. Failure of this unit may trigger a range of diagnostic codes and cause loss of engine power or no‑start conditions.
Quick Summary
- ECM removal and installation typically requires 0.6 hours of labor for the 2.0L engine.
- A post‑install relearn or reset can add 0.3‑0.5 hours depending on the procedure.
- Factory caution advises the ignition be off when handling ECM connectors.
- Common trouble codes include P0601 through P0630 for this model.
When a 2016 Cadillac CTS experiences intermittent power loss or diagnostic trouble codes, the engine control module is often the focus. This guide explains what the ECM does, how to locate and replace it, and what factory programming steps are normally required. By following the information here, you can understand the scope of the repair and assess whether a new or refurbished unit meets your needs.
What the PCM Does in a 2016 Cadillac CTS
In the 2016 Cadillac CTS the Engine Control Module serves as the brain for the 2.0L powertrain, interpreting sensor data to regulate fuel injection, spark timing, and emissions controls. Its proper operation is essential for smooth acceleration, fuel efficiency, and compliance with emission standards. The module works in tandem with the Powertrain Control Module to coordinate transmission shifts and overall vehicle performance. replacement engine computers for the 2016 Cadillac CTS ensure that the vehicle maintains factory‑specified behavior after any service event.

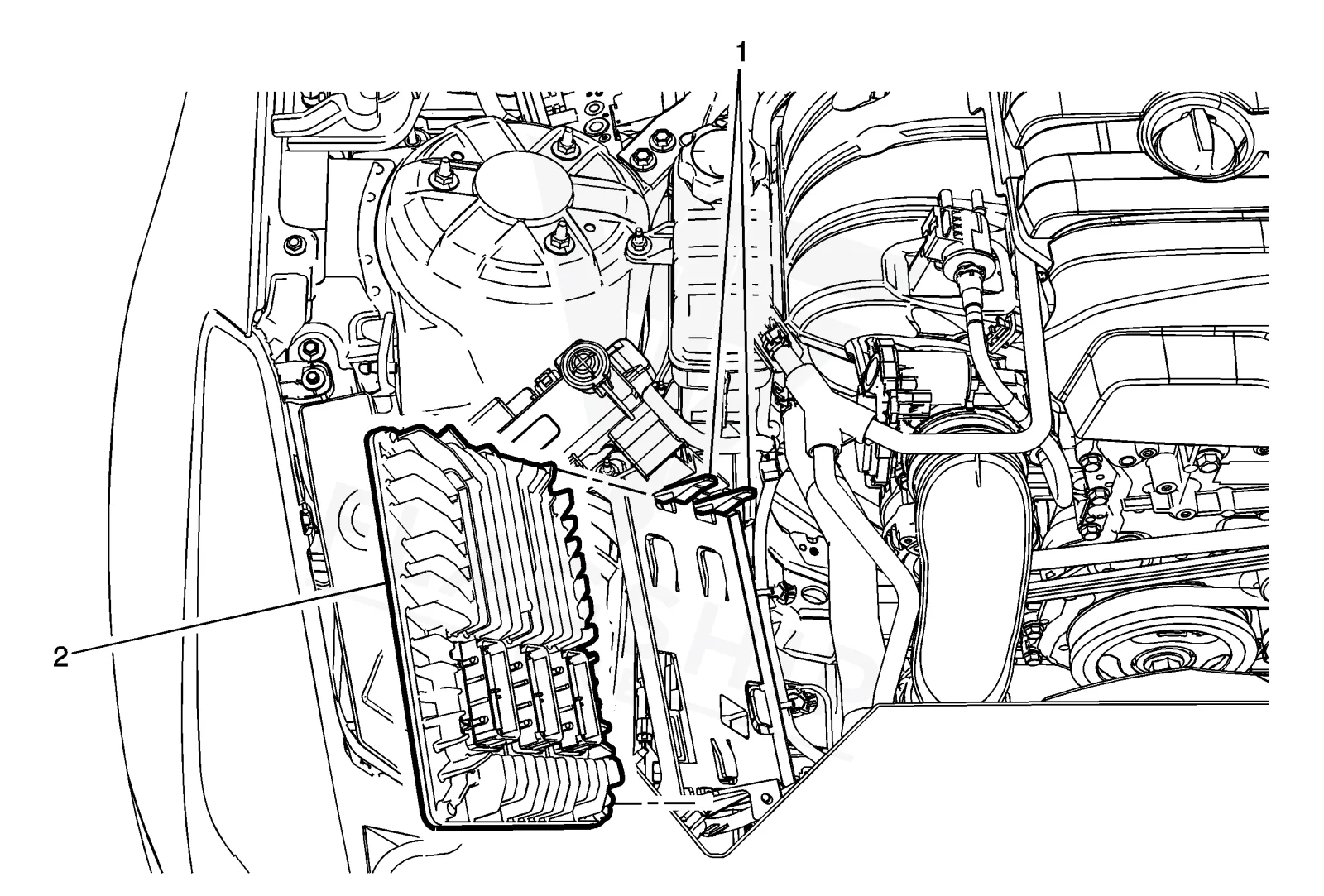

Where the PCM Is Located and What Replacement Involves
The ECM is mounted within the engine compartment, accessible without removing major components. Replacement involves disconnecting the ECM connectors with the ignition turned off, as the factory caution specifies, to avoid damage. Labor time for removal and installation on the 2.0L engine is listed as 0.6 hours. After the unit is seated, the technician may need to perform a relearn (0.5 hours) or a simple reset (0.3 hours) depending on the diagnostic situation.
How to Reach the PCM on the 2016 Cadillac CTS
- Disconnect the negative battery cable.
- Remove the front compartment fuse block housing.
- Remove any debris from around the control module connector.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | 3.6L | 1.5 hr |
| Engine Control Module R&R | 6.2L | 0.6 hr |
| Engine Control Module R&R | 2.0L | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Powertrain Control Module R&R | 3.6L | 1.5 hr |
| Powertrain Control Module R&R | 2.0L | 0.6 hr |
| Powertrain Control Module R&R | 6.2L | 0.6 hr |
Programming Requirements After Replacement
After installing a new ECM, the factory procedure calls for a relearn or reset sequence to synchronize the module with the vehicle’s existing parameters. Flagship One units arrive VIN‑programmed so those steps are already completed. a VIN-programmed replacement unit therefore eliminates the need for additional on‑site coding.
Symptoms of a Failing PCM
Typical signs of a failing ECM in a 2016 Cadillac CTS include a no‑start condition, rough idle, stalling during acceleration, and loss of power‑train communication. Drivers may also see the check engine light flash and retrieve codes such as engine control module memory failure during a scan. These symptoms often correlate with the internal trouble codes listed for this model.
Module Trouble Codes on the 2016 Cadillac CTS
The following diagnostic trouble codes are commonly stored by the ECM in a 2016 Cadillac CTS:
Factory Service Bulletins Worth Knowing
Service Bulletin PIP5373B (June 11 2018) addresses programming errors E4491 and E4423. Bulletin PIP5597 (October 8 2018) notes that technicians may be prompted to enter the engine identification number during ECM programming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Program ECM Error E4491/E4423 – (Jun 11, 2018) | — |
| — | Engine identification Number Requested When Programming ECM – (Oct 8, 2018) | During the programming of some ECM’s, the technician may be prompted to input the engine identification |
Protecting the PCM in Your 2016 Cadillac CTS
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ECM connectors and ground points regularly.
- Use surge‑protective devices when jump‑starting to limit voltage spikes.
- Address diagnostic codes promptly to prevent further module stress.
- Keep connector seals intact to protect against moisture intrusion.
Frequently Asked Questions
What should I do if the ECM fails during a cold start in my 2016 Cadillac CTS?
Check for stored trouble codes, verify battery voltage, and inspect the ECM connectors. If codes point to the ECM, a replacement may be required.
Is a factory‑reset sufficient after installing a new ECM in a 2016 Cadillac CTS?
A reset (0.3 hours) can clear basic parameters, but a full relearn (0.5 hours) may be needed for optimal performance, especially after code‑related repairs.
Can I use a used ECM from another 2016 Cadillac CTS?
A used unit must be re‑programmed to match your vehicle’s VIN. Flagship One provides VIN‑programmed replacements that eliminate this step.
When the ECM in a 2016 Cadillac CTS needs attention, you can choose between a brand‑new factory unit or a refurbished replacement that meets original specifications. Both options restore engine management functions, but a refurbished part may offer cost savings while still delivering reliable performance for this model.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2016 Cadillac CTS with a lifetime warranty, free shipping and no core charge. The full Cadillac CTS module lineup covers other engine configurations as well.
Final Thoughts
Replacing the ECM in your 2016 Cadillac CTS can resolve a range of drivability issues. Consider your repair preferences and the benefits of a VIN‑programmed unit to ensure a smooth return to normal operation.
