2015 Lexus NX200t Engine Control Module: Replacement and Programming Guide
The engine control module (ECM) in your 2015 Lexus NX200t manages fuel delivery, ignition timing, and emissions systems. Failures may cause poor performance, stalling, or failure to start.
Quick Summary
- Factory ECM is located near the air cleaner assembly.
- Replacement typically requires removing the battery and air cleaner components.
- Labor time for removal and installation is about 0.8 hours.
- A relearn procedure (0.5 hours) is often required after replacement.
- Flagship One units arrive pre-programmed to your VIN, eliminating extra steps.
If your 2015 Lexus NX200t is experiencing unexplained stalling, rough idling, or a no-start condition, the engine control module (ECM) may be at fault. This critical component oversees fuel injection, ignition timing, and emissions controls. Replacing it involves more than just swapping hardware—proper programming and relearning procedures are essential to restore full functionality. Understanding the process helps you avoid unnecessary delays and ensures your vehicle runs as intended after the repair.
What the PCM Does in a 2015 Lexus NX200t
The engine control module in your 2015 Lexus NX200t acts as the brain of the powertrain, continuously adjusting engine parameters for optimal performance. It processes data from sensors to regulate fuel mixture, spark timing, and idle speed. When it fails, you may notice poor drivability or warning lights on the dashboard. Replacing it requires replacement engine computers for the NX200t, which must be programmed to match your vehicle’s specifications. Without proper calibration, the engine may not start or could run inefficiently.

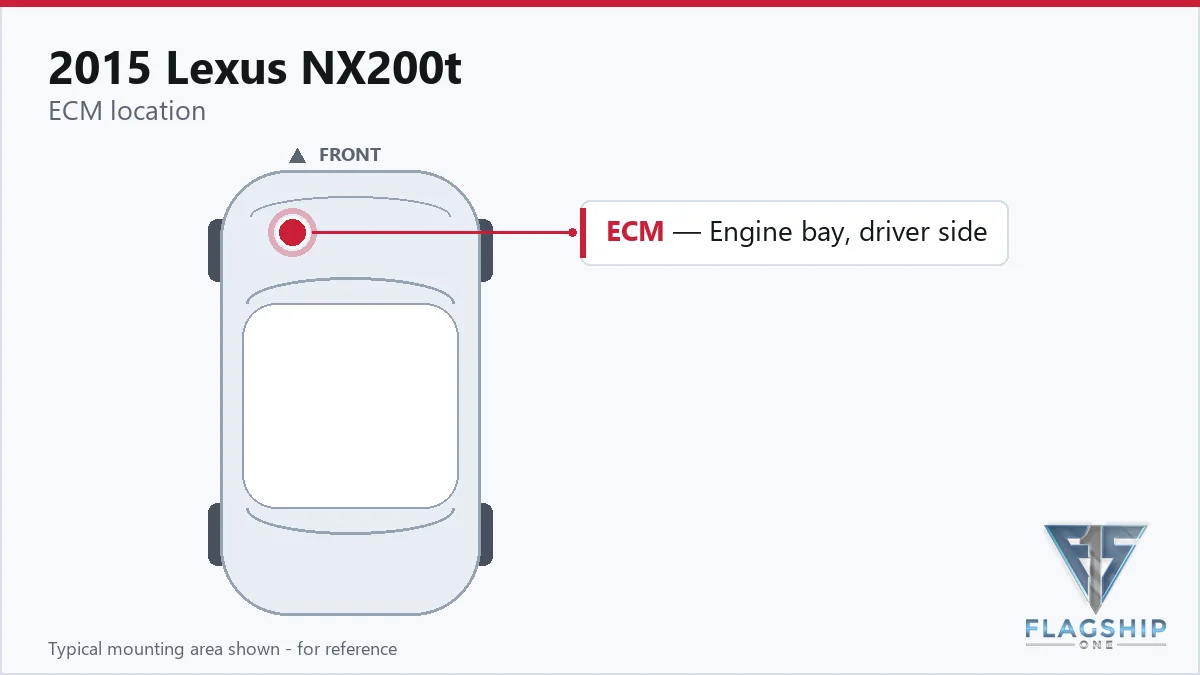

Where the PCM Is Located and What Replacement Involves
The ECM in your 2015 Lexus NX200t is positioned next to the air cleaner assembly. To access it, technicians typically remove the battery cables, battery clamp, insulator, and the battery itself, followed by the air cleaner cap. The factory procedure specifies a labor time of 0.8 hours for removal and reinstallation. After replacing the module, reconnecting components in the correct order ensures proper function. Always follow the manufacturer’s caution about waiting before disconnecting the battery to avoid electrical issues.
How to Reach the PCM on the 2015 Lexus NX200t
- Disconnect cable from negative battery terminal.
- Disconnect cable from positive battery terminal.
- REMOVE BATTERY CLAMP SUB-ASSEMBLY Click here More Info.
- REMOVE BATTERY INSULATOR Click here More Info.
- REMOVE BATTERY Click here More Info.
- Remove air cleaner cap sub-assembly.
- Disconnect the intake mass air flow meter sub-assembly connector.
- Detach the 2 clips, loosen the hose clamp and remove the air cleaner cap sub-assembly.
- Remove air cleaner case sub-assembly.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM in your 2015 Lexus NX200t, the factory requires a relearn procedure that may take up to 0.5 hours. This step ensures the module synchronizes with the engine’s sensors and systems. However, a VIN-programmed replacement unit from Flagship One arrives ready to install, eliminating the need for additional programming. This saves time and reduces the risk of calibration errors during the process.
Symptoms of a Failing PCM
A failing ECM in your 2015 Lexus NX200t may cause a range of issues, from intermittent stalling to a complete no-start condition. You might also notice poor acceleration, rough idling, or warning lights on the dashboard. In some cases, the vehicle may enter a reduced-power mode to prevent further damage. If the module loses communication with the scan tool, diagnostics become difficult. One documented fault for this vehicle is an internal processor error, which often requires module replacement to resolve.
Module Trouble Codes on the 2015 Lexus NX200t
The 2015 Lexus NX200t may log specific trouble codes when the ECM fails. These codes help pinpoint the issue and guide repairs.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2015 Lexus NX200t
- Maintain a healthy charging system to avoid voltage spikes that could damage the ECM.
- Keep battery terminals and connectors clean and securely fastened.
- Avoid jump-starting with improper voltage, as it may harm sensitive electronics.
- Address warning lights or trouble codes promptly to prevent further damage.
- Ensure the ECM connector seals remain intact to protect against moisture.
Frequently Asked Questions
Does the 2015 Lexus NX200t require a dealer visit for ECM programming?
The factory procedure often includes a relearn step that may require specialized tools. However, a pre-programmed replacement unit eliminates this need, allowing for a straightforward installation without additional programming.
Can I drive my 2015 Lexus NX200t with a bad ECM?
Driving with a faulty ECM may lead to poor performance, stalling, or even a no-start condition. It’s best to address the issue promptly to avoid further complications.
How do I know if my 2015 Lexus NX200t ECM is failing?
Common signs include rough idling, stalling, warning lights, or trouble codes like P0606. A diagnostic scan can confirm whether the ECM is the root cause.
If your 2015 Lexus NX200t requires an ECM replacement, you have options. A new unit from the dealer may involve additional programming steps, while a refurbished replacement arrives ready to install. Choosing a pre-programmed module saves time and ensures compatibility with your vehicle’s systems.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Lexus NX200t with a lifetime warranty, free shipping and no core charge. The full Lexus NX200t module lineup covers other engine configurations as well.
Final Thoughts
Replacing the ECM in your 2015 Lexus NX200t is a manageable task when you understand the process. Whether you opt for a dealer visit or a pre-programmed unit, addressing the issue promptly restores performance and reliability. Keep your vehicle running smoothly with the right replacement and proper installation.
