2015 Cadillac SRX PCM and ECM Replacement Guide
In the 2015 Cadillac SRX the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage engine timing, fuel delivery, and transmission shift logic. When either unit fails, the vehicle may lose power, stall, or trigger multiple diagnostic codes, indicating a loss of control over critical power‑train functions.
Quick Summary
- Removal of the PCM or ECM typically requires about 1.4 hours of labor.
- Relearn procedures add roughly 0.5 hours after each module swap.
- Factory reprogramming is needed unless a VIN‑programmed unit is installed.
- Several related fault codes (P0601‑P062F, P1621) point to module communication issues.
When a 2015 Cadillac SRX experiences intermittent power‑train glitches, the underlying cause often lies with its control modules. Understanding how the PCM and ECM operate, where they sit, and what steps are required after replacement helps you avoid unnecessary downtime. This guide walks you through the essential facts so you can assess the repair scope and know what to expect from a professional service.
What the PCM Does in a 2015 Cadillac SRX
The Powertrain Control Module in a 2015 Cadillac SRX acts as the central brain for both engine and transmission, interpreting sensor data to command fuel injection, ignition timing, and shift points. It also stores calibration data that the vehicle relies on for smooth operation. The Engine Control Module performs a similar role focused on engine‑specific functions, ensuring combustion efficiency and emissions compliance. Both units are critical for reliable performance, and a fault can quickly cascade to drivability problems. For owners seeking a replacement, replacement engine computers for the 2015 Cadillac SRX provide a direct swap that restores factory specifications.

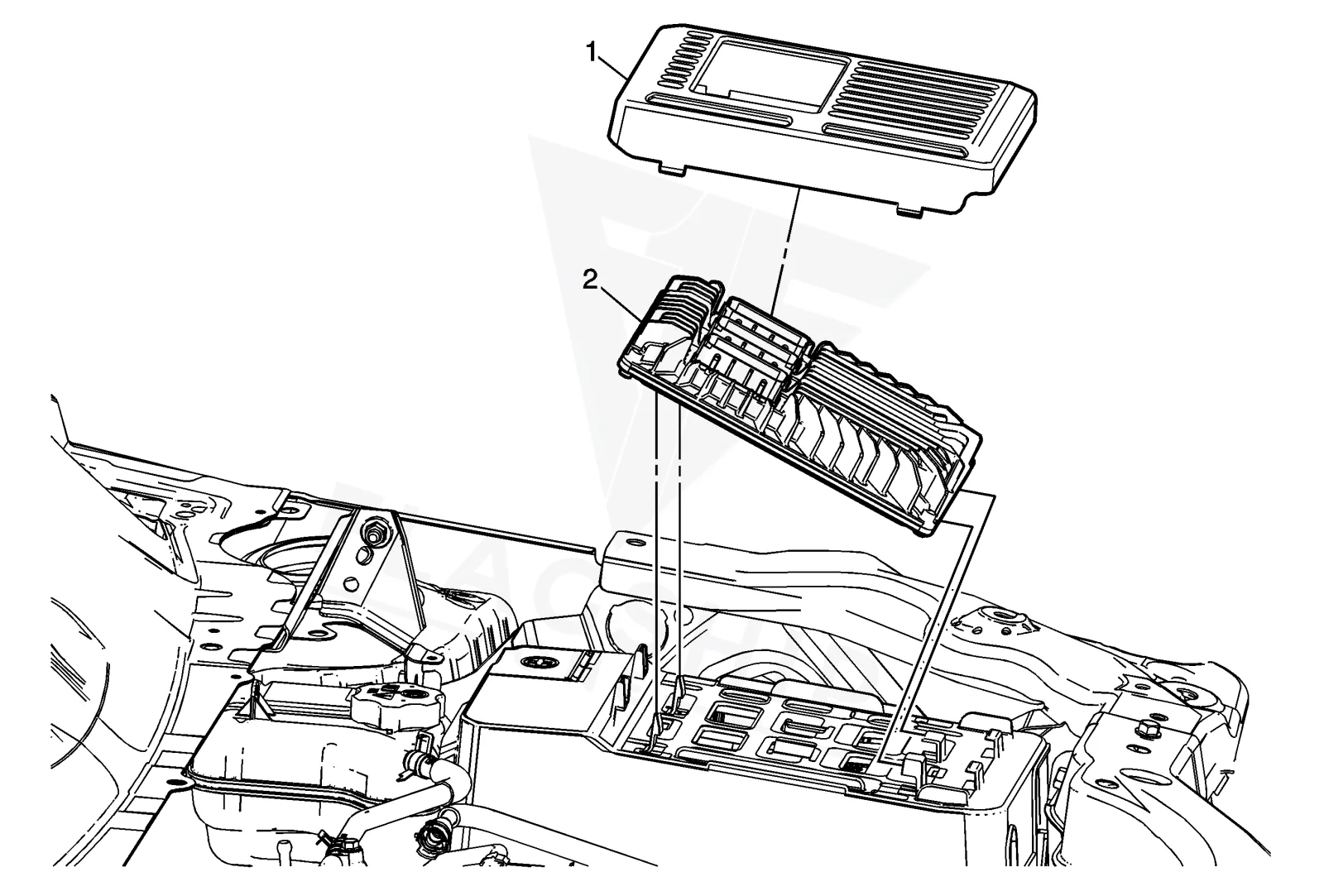

Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine compartment, accessible after disconnecting the battery and removing a few protective covers. According to the labor guide, swapping the Powertrain Control Module requires roughly 1.4 hours, while the Engine Control Module takes a similar amount of time. After each module is installed, a relearn procedure adds about 0.5 hours to ensure the vehicle’s adaptive strategies are updated. No torque specifications were supplied, so standard factory fasteners should be used according to the service manual.
How to Reach the PCM on the 2015 Cadillac SRX
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the TCM/BATT fuse from the underhood fuse block.
- Remove the ECM/TCM/IGN fuse from the underhood fuse block.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module in the 2015 Cadillac SRX, the factory procedure calls for a full reprogramming of the ECM and a relearn of the PCM. Flagship One units arrive pre‑loaded with the correct VIN data, so a VIN‑programmed replacement unit eliminates the need for on‑site calibration steps. The technician still performs the relearn routine to confirm the vehicle’s control strategies are synchronized.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2015 Cadillac SRX include a no‑start condition, rough idle, unexpected stalling, and transmission shift irregularities. Scan tools often report loss‑of‑communication codes, and you may see the check engine light illuminate with multiple fault entries. One common diagnostic entry is PCM internal communication error, which reflects a breakdown in the module’s ability to exchange data with other controllers.
Module Trouble Codes on the 2015 Cadillac SRX
The following diagnostic trouble codes are documented for the 2015 Cadillac SRX when its PCM or ECM experiences internal faults:
Factory Service Bulletins Worth Knowing
Service Bulletin #PI1353 (Nov 10 2014) notes an incorrect part number printed on the ECM label, which can cause confusion during replacement. Bulletin #17-NA-242 (Jul 24 2017) warns that reprogramming a module with its existing calibration may be prohibited by the SPS system, emphasizing the need for updated software before flashing.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Information on Incorrect Service Part Number on ECM Label – (Nov 10, 2014) | — |
| — | Information on Changes to SPS that Warn/Prohibit Reprogramming a Module With Its Current Calibr | — |
Protecting the PCM in Your 2015 Cadillac SRX
- Maintain a healthy charging system to avoid voltage irregularities.
- Ensure all ground straps and connector pins are clean and tightly secured.
- Avoid high‑current jump‑starts that could spike module inputs.
- Address any diagnostic codes promptly to prevent escalation.
- Inspect connector seals regularly to keep moisture out of the module housing.
Frequently Asked Questions
Can I replace the PCM on my 2015 Cadillac SRX myself?
While the removal steps are straightforward, the required reprogramming and relearn procedures typically need specialized equipment, so professional assistance is recommended.
What does a P0601 code indicate on a 2015 Cadillac SRX?
It signals an internal communication error within the PCM, suggesting the module may not be exchanging data correctly with other controllers.
Will a VIN‑programmed ECM from Flagship One work without additional coding?
Yes, the unit arrives pre‑loaded with the vehicle’s identification data, eliminating the need for on‑site VIN coding, though the relearn step remains necessary.
When the PCM or ECM in your 2015 Cadillac SRX needs attention, you can choose a factory‑refurbished repair or a Flagship One replacement that arrives VIN‑programmed. Both paths aim to restore the vehicle’s original performance, but the replacement option may reduce shop time by skipping the initial coding step.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Cadillac SRX with a lifetime warranty, free shipping and no core charge. The full Cadillac SRX module lineup covers other engine configurations as well.
Final Thoughts
Understanding the role of the PCM and ECM in your 2015 Cadillac SRX helps you make informed decisions about repair or replacement. Contact a qualified technician to evaluate the modules and choose the solution that best fits your vehicle’s needs.
