2012 Cadillac SRX PCM and ECM Replacement Guide
In the 2012 Cadillac SRX, the Powertrain Control Module (PCM) and Engine Control Module (ECM) manage engine speed, transmission shift timing, and sensor diagnostics. Failure of either unit can cause loss of power, erratic shifting, or a complete no‑start condition, often accompanied by internal fault codes such as P0601.
Quick Summary
- PCM and ECM removal each require about 1.4 hours of labor.
- Both modules need a 0.5‑hour relearn after installation.
- Factory service bulletins address specific DTCs for this model.
- Flagship One units arrive VIN‑programmed, eliminating reprogramming steps.
When a 2012 Cadillac SRX begins to exhibit intermittent power loss, unexpected transmission shifts, or a failure to start, the electronic brains of the vehicle—the Powertrain Control Module and Engine Control Module—are common culprits. Understanding how these modules operate, where they sit, and what the factory requires after a swap can save you time and prevent unnecessary repairs. This guide walks you through the essential facts, from labor estimates to programming requirements, so you can assess the situation, plan the work, and know what to expect from a quality replacement.
What the PCM Does in a 2012 Cadillac SRX
The Powertrain Control Module in the 2012 Cadillac SRX serves as the central processor for engine and transmission coordination, translating sensor inputs into precise fuel and shift commands. It also stores diagnostic information that helps pinpoint failures. The Engine Control Module performs a similar role for engine‑only functions, overseeing ignition timing, fuel delivery, and emissions controls. Both modules are critical for smooth operation, and a malfunction can trigger a range of drivability problems. Because they share many internal components, the vehicle often uses a single replacement part strategy, and replacement powertrain control modules for 2012 Cadillac SRX may be sourced as a combined unit to simplify service.
What Replacing the PCM Involves

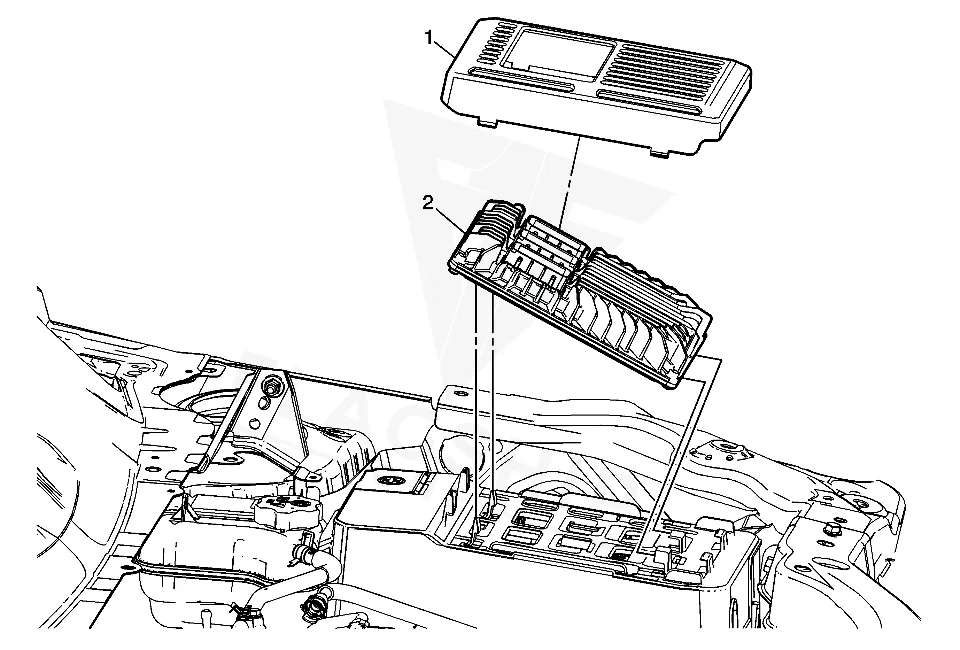

How to Reach the PCM on the 2012 Cadillac SRX
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the TCM/BATT fuse from the underhood fuse block.
- Remove the ECM/TCM/IGN fuse from the underhood fuse block.
- Disconnect the electrical connectors.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM in the 2012 Cadillac SRX, the factory procedure calls for a specific reprogramming step to load the correct calibration data. The process requires special equipment, the correct program file, and a calibrated calibration tool. Flagship One supplies each unit already loaded with the vehicle‑specific software, so the reprogramming work is effectively completed before the part reaches your shop. When a replacement is needed, you will use a VIN-programmed replacement unit that matches the vehicle’s identification, eliminating the need for on‑site coding.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 2012 Cadillac SRX include a complete no‑start condition, rough idle, unexpected transmission shifts, and loss of power under load. The vehicle may also trigger diagnostic trouble codes that appear on a scan tool, such as code P0601 processor failure which indicates internal processor issues. Drivers often report intermittent stalling or a sudden drop in engine speed, and the check‑engine light may flash or stay illuminated. In some cases, the scan tool may lose communication with the module entirely, reflecting a total loss of electronic control.
Module Trouble Codes on the 2012 Cadillac SRX
The following internal diagnostic codes are documented for the 2012 Cadillac SRX and can help pinpoint PCM or ECM failures:
Factory Service Bulletins Worth Knowing
Service bulletin PIP4933D, dated July 11 2012, addresses part‑restriction concerns for the ECM, while bulletin PIP4653D from June 20 2012 lists DTCs P0601, P0603, P0604, and P062F stored in the TCM, providing guidance for technicians dealing with those specific faults.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | PQC Part Restriction – E39 ECM – (Jul 11, 2012) | — |
| — | DTC’s P0601 P0603 P0604 P062F Or P1621 (Stored in the TCM) – (Jun 20, 2012) | — |
Protecting the PCM in Your 2012 Cadillac SRX
- Maintain the vehicle’s charging system to keep voltage stable.
- Inspect and clean all ground points and connector pins regularly.
- Avoid using jump‑starts that can introduce voltage spikes to the control modules.
- Address any diagnostic codes promptly before they compound.
- Ensure connector seals remain intact to prevent moisture intrusion.
- Use only approved aftermarket accessories that connect at the 12 V battery.
Frequently Asked Questions
Can I replace the PCM on my 2012 Cadillac SRX without a scan tool?
The removal and installation can be done with basic hand tools, but the factory requires a relearn step that typically uses a scan tool. Flagship One units come pre‑programmed, which reduces the need for additional equipment.
What labor time should I expect for a PCM swap on a 2012 Cadillac SRX?
The book time for removing and reinstalling the Powertrain Control Module is listed as 1.4 hours, plus an additional 0.5 hours for the required relearn procedure.
Do the service bulletins for the 2012 Cadillac SRX affect the replacement process?
Yes, the bulletins PIP4933D and PIP4653D provide specific guidance on part restrictions and known fault codes, which can help technicians verify that the correct software version is used.
Is a VIN‑programmed ECM necessary for my 2012 Cadillac SRX?
Using a VIN‑programmed unit ensures the calibration data matches your vehicle, eliminating the need for on‑site programming and reducing the chance of mismatched parameters.
What common codes indicate a PCM problem in this model?
Codes such as P0601, P0602, P0603, and P0604 are frequently associated with internal processor or communication failures in the PCM for the 2012 Cadillac SRX.
When the PCM or ECM in your 2012 Cadillac SRX needs attention, you can choose a factory‑refurbished replacement or a new, VIN‑programmed unit from Flagship One. Both options meet the vehicle’s specifications, but the pre‑programmed unit removes the need for a post‑install reflash, streamlining the repair process while preserving the vehicle’s performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Cadillac SRX with a lifetime warranty, free shipping and no core charge. The full Cadillac SRX module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Powertrain Control Module or Engine Control Module in a 2012 Cadillac SRX restores reliable engine and transmission operation. Consider a VIN‑programmed replacement to avoid extra programming steps, and follow the recommended preventive measures to keep the modules healthy. Contact Flagship One for the appropriate unit and support.
