2015 Audi S7 Engine Control Module Relearn and Replacement Guide
In the 2015 Audi S7 the Engine Control Module manages fuel injection, ignition timing, and emissions controls. A failure typically triggers diagnostic codes and can lead to loss of power, rough idle, or complete engine shutdown.
Quick Summary
- ECM relearn takes about half an hour after replacement.
- Full removal and reinstall requires roughly one and a half hours.
- Factory procedure accesses the module in the plenum chamber behind the windshield.
- Flagship One units arrive VIN‑programmed, eliminating post‑install steps.
When a 2015 Audi S7 exhibits symptoms like stalling or scan‑tool communication loss, the Engine Control Module often needs attention. This guide explains what the ECM does, where it lives, how long labor typically takes, and what programming is required after a swap. By the end, you’ll understand the repair process and how a Flagship One replacement can simplify it.
What the PCM Does in a 2015 Audi S7
The Engine Control Module in a 2015 Audi S7 serves as the brain for engine operation, controlling fuel delivery, spark timing, and emissions monitoring. It continuously processes sensor data to keep the powertrain running smoothly, and any malfunction can cause drivability problems or trigger fault codes. Because the module directly influences performance and emissions, ensuring it functions correctly is essential for reliable operation. For owners seeking a new unit, replacement engine control modules for 2015 Audi S7 provide a direct fit and retain original calibration.
Where the PCM Is Located and What Replacement Involves
The factory removal procedure reaches the control module inside the plenum chamber at the base of the windshield. Access involves removing interior trim to expose the chamber, then disconnecting the wiring harness. Reinstalling the module typically requires about 0.5 hours for a relearn and 1.4 hours for a full removal and reinstall, according to the labor guide. No additional torque specifications are provided in the source data.

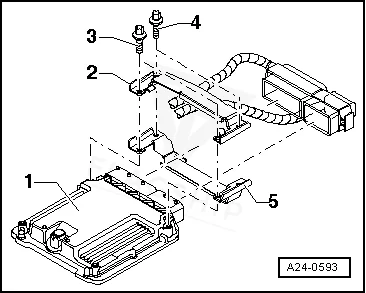

How to Reach the PCM on the 2015 Audi S7
- Remove the plenum chamber cover.
- Remove the bolts , pull the filler tube out of the windshield washer fluid reservoir and.
- Open the retainer and remove the Engine Control Module.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | RS7 | 0.5 hr |
| Engine Control Module Relearn | S7 | 0.5 hr |
| Engine Control Module Relearn | A7 Quattro | 0.5 hr |
| Engine Control Module R&R | RS7 | 1.4 hr |
| Engine Control Module R&R | S7 | 1.4 hr |
| Engine Control Module R&R | A7 Quattro | 1.4 hr |
| Powertrain Control Module R&R | RS7 | 0.5 hr |
| Powertrain Control Module R&R | S7 | 0.5 hr |
Programming Requirements After Replacement
After installing a new ECM, the factory process calls for an Engine Control Module Relearn, which usually takes half an hour. Flagship One units arrive already VIN‑programmed, so that relearn step is completed before the part reaches your shop. This eliminates the need for a separate programming session, streamlining the repair workflow. a VIN-programmed replacement unit ensures the module is ready for immediate use.
Symptoms of a Failing PCM
Typical signs of a failing ECM in a 2015 Audi S7 include a no‑start condition, intermittent stalling, rough idle, and loss of communication with a scan tool. You may also see unexpected transmission shifts or reduced fuel efficiency. When the module cannot communicate properly, codes such as ECM communication fault often appear, prompting further diagnostics.
Module Trouble Codes on the 2015 Audi S7
The following diagnostic trouble codes are commonly logged by the Engine Control Module in this vehicle:
| Code | Meaning | Full Guide |
|---|---|---|
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P0613 | Module-internal fault | Full P0613 guide → |
| P0667 | Module-internal fault | Full P0667 guide → |
Protecting the PCM in Your 2015 Audi S7
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and connector pins regularly.
- Avoid jump‑starting the vehicle unless absolutely necessary.
- Address any stored fault codes promptly to prevent cascading issues.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What causes an Engine Control Module failure in a 2015 Audi S7?
Common causes include water intrusion, voltage spikes, and deteriorating solder joints inside the module, which can disrupt sensor communication and control functions.
How long does it take to replace the ECM on a 2015 Audi S7?
Labor estimates suggest about one and a half hours for removal and reinstall, plus an additional half hour for the required relearn procedure.
Do I need special tools to program a new ECM in a 2015 Audi S7?
When using a Flagship One VIN‑programmed unit, no extra programming tools are required because the necessary calibration is pre‑loaded.
When the ECM in your 2015 Audi S7 needs service, you can choose a professional repair or a refurbished replacement. Both options address the underlying issue, but a Flagship One unit arrives pre‑programmed, reducing shop time and ensuring the module meets factory specifications.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2015 Audi S7 with a lifetime warranty, free shipping and no core charge. The full Audi S7 module lineup covers other engine configurations as well.
Final Thoughts
Understanding the ECM’s role in your 2015 Audi S7 helps you make informed decisions about repair or replacement. A properly programmed unit restores performance and keeps the vehicle running smoothly.
