2014 Audi S7 Engine Control Module Replacement Guide
The Engine Control Module in your 2014 Audi S7 serves as the primary processor for the 4.0L powertrain, managing fuel delivery, ignition timing, and emissions systems. When this module fails internally, the vehicle may enter limp mode or refuse to start altogether.
Quick Summary
- The ECM on this vehicle is located in the plenum chamber at the windshield base
- Factory book time for ECM replacement is 1.4 hours plus 0.5 hours for relearn procedures
- Module-internal fault codes P0603, P0605, P060A, P060B, P0613, and P0667 indicate internal ECM failure
- A replacement ECM must be programmed to the vehicle’s VIN before installation
If your 2014 Audi S7 is displaying warning lights, experiencing starting problems, or a diagnostic scan reveals module-internal fault codes, the Engine Control Module may require attention. This guide explains what the ECM does in your vehicle, where it is located, and what the replacement process involves. Understanding these details helps you make informed decisions about repair options and know what to expect during service.
What the PCM Does in a 2014 Audi S7
The Engine Control Module in your 2014 Audi S7 functions as the central computer for the 4.0L twin-turbocharged powertrain, orchestrating fuel injection, variable valve timing, boost control, and emissions monitoring. This unit communicates with multiple sub-modules including the transmission control unit, intake manifold actuators, and the all-wheel drive system. When the internal processor or memory of the ECM becomes corrupted, the module may lose calibration data, fail to communicate with diagnostic tools, or default to a protective limp mode. Replacement requires a unit programmed specifically for your vehicle’s VIN and configuration. Finding replacement engine computers for the 2014 Audi S7 that arrive pre-programmed eliminates the need for dealer-level programming steps after installation.
Flagship One keeps Audi S7 replacement engine computers in stock for exactly this failure pattern.
Where the PCM Is Located and What Replacement Involves
The ECM on your 2014 Audi S7 is housed inside the plenum chamber, which is the area beneath the windshield at the base of the dashboard. Accessing this location requires removing interior trim panels and the cabin air intake ductwork. The factory removal procedure involves disconnecting the battery, removing the passenger-side footwell panel, and extracting the module from its mounting bracket in the plenum. Labor time for the remove-and-replace procedure is listed at 1.4 hours in factory specifications. After the new module is installed, a relearn procedure requiring an additional 0.5 hours must be performed using authorized diagnostic equipment to calibrate the new ECM to your vehicle’s specific sensors and actuators. All electrical connections should be inspected for corrosion or damage during reassembly.

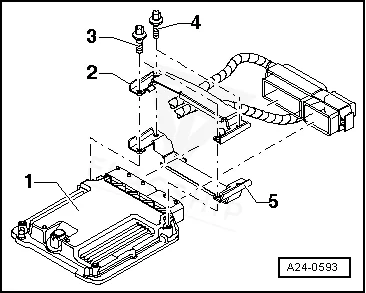

How to Reach the PCM on the 2014 Audi S7
- Remove the plenum chamber cover.
- Remove the bolts , pull the filler tube out of the windshield washer fluid reservoir and.
- Open the retainer and remove the Engine Control Module.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | RS7 | 0.5 hr |
| Engine Control Module Relearn | A7 Quattro | 0.5 hr |
| Engine Control Module Relearn | S7 | 0.5 hr |
| Engine Control Module R&R | RS7 | 1.4 hr |
| Engine Control Module R&R | A7 Quattro | 1.4 hr |
| Engine Control Module R&R | S7 | 1.4 hr |
| Powertrain Control Module R&R | RS7 | 0.5 hr |
| Powertrain Control Module R&R | A7 Quattro | 0.5 hr |
Programming Requirements After Replacement
Following replacement of the Engine Control Module on your 2014 Audi S7, the factory procedure requires performing a module relearn or initialization using OEM diagnostic software. This process synchronizes the new ECM with the vehicle’s immobilizer system, establishes communication with the transmission control module, and calibrates idle speed and fuel trim values. Without this step, the vehicle may not start or run properly. Flagship One addresses this requirement by shipping their replacement units with the customer’s VIN already programmed, so the module arrives ready for installation. This means the relearn procedure is simplified or in some cases becomes unnecessary, saving time at the repair facility.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
When the Engine Control Module fails on your 2014 Audi S7, several distinct symptoms typically emerge. The most common include a no-start condition where the engine cranks but fails to fire, or intermittent stalling during acceleration. Diagnostic scan tools may show an inability to communicate with the ECM, displaying no data or error messages. Fault codes related to module internal integrity often appear, such as those indicating memory checksum errors or processor malfunctions. You may also experience drivability issues including rough idle, hesitation under throttle, and transmission shifting abnormalities. The check engine light will likely remain illuminated, and in some cases the vehicle may enter limp mode, severely limiting performance. The code internal control module memory check often appears when the ECM’s non-volatile memory has been corrupted.
Module Trouble Codes on the 2014 Audi S7
The 2014 Audi S7 may store several module-internal diagnostic trouble codes indicating ECM failure. These codes are generated by the module’s internal self-diagnostic system and point to specific processor or memory issues within the control unit.
| Code | Meaning | Full Guide |
|---|---|---|
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P0613 | Module-internal fault | Full P0613 guide → |
| P0667 | Module-internal fault | Full P0667 guide → |
Protecting the PCM in Your 2014 Audi S7
- Maintain the charging system by replacing the battery when it shows signs of weakness to prevent voltage drops
- Periodically inspect and clean the ground connections at the ECM mounting location
- Avoid jump-starting from another vehicle when possible, as voltage spikes can damage the module
- Address any check engine light or diagnostic codes promptly before they cascade into more serious issues
- Ensure the cabin seal around the windshield is intact to prevent water intrusion into the plenum chamber
- Use only quality fuel and avoid running the tank extremely low, which can stress the fuel pump electronics
Frequently Asked Questions
Will any Engine Control Module work in my 2014 Audi S7?
No. The replacement ECM must be programmed with your specific vehicle’s VIN and configuration data. An unprogrammed unit will not allow the engine to start and may trigger immobilizer conflicts.
Can I drive my 2014 Audi S7 with a failing ECM?
Driving with a compromised ECM is not recommended. The vehicle may enter limp mode, stall unexpectedly, or fail to start entirely. Additionally, ongoing damage to emissions components may occur.
How do I know if my ECM has failed versus another component?
If diagnostic scans show module-internal codes like P0603 or P0605, or if the scan tool cannot communicate with the ECM at all, the module itself is likely the culprit. A qualified technician can perform additional tests to confirm.
When your 2014 Audi S7 requires Engine Control Module service, you have two primary options: repair the existing unit through specialized electronic refurbishment, or install a replacement unit that arrives VIN-programmed for immediate installation. The repair route may be suitable for minor corruption issues, while a pre-programmed replacement offers a more comprehensive solution with less downtime. Consider your vehicle’s mileage, overall condition, and warranty requirements when making this decision.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Audi S7 with a lifetime warranty, free shipping and no core charge. The full Audi S7 module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module is a critical component on your 2014 Audi S7, managing the complex operations of the 4.0L twin-turbo powertrain. When symptoms of module failure appear, addressing the issue promptly helps prevent cascading damage and restores reliable operation. Whether you choose refurbishment or replacement, ensuring the new unit is properly programmed to your vehicle’s specifications is essential for a successful repair.
