2014 Toyota Yaris ECM and PCM Relearn Guide
In the 2014 Toyota Yaris, the Engine Control Module and Powertrain Control Module manage fuel injection, ignition timing, and transmission shifting. Failure of either unit can cause loss of power, erratic idle, or a dead scan‑tool connection, often flagged by code P0606.
Quick Summary
- ECM relearn takes about half an hour of labor.
- PCM removal and replacement also requires roughly one hour.
- Access to the modules involves removing the windshield wiper motor and link.
- Factory VIN programming is required after install.
When a 2014 Toyota Yaris exhibits symptoms like no‑start, stalling, or unexpected transmission behavior, the engine and powertrain control modules are common culprits. This guide explains what these modules do, how they are accessed, and what steps are needed after a replacement. By the end, you will understand the labor involved, the necessary relearn procedures, and how a Flagship One unit can simplify the process.
What the PCM Does in a 2014 Toyota Yaris
The Engine Control Module in the 2014 Toyota Yaris monitors sensor data to control fuel delivery, spark timing, and emissions, while the Powertrain Control Module oversees transmission shift logic and torque converter operation. Together they ensure smooth acceleration and efficient fuel use; a failure can disrupt engine start or cause erratic shifting. Proper operation is essential for emissions compliance and drivability, and replacement units are often referred to as Toyota Yaris replacement engine computers for the correct application.
Where the PCM Is Located and What Replacement Involves
Both the ECM and PCM sit behind the passenger‑side dashboard, reachable only after the windshield wiper motor and its linkage are removed. The factory labor guide lists 0.5 hours for an ECM relearn and 1.1 hours for a full ECM removal and replacement. The PCM requires the same 1.1 hours for removal and 0.5 hours for a relearn. No torque specifications were provided, so the focus is on the documented labor times and access steps.
How to Reach the PCM on the 2014 Toyota Yaris
- Remove windshield wiper motor and link.
- Remove front no.
- REMOVE FRONT AIR SHUTTER SEAL RH More Info REMOVE INNER COWL TOP TO COWL BRACE More Info.
- REMOVE OUTER COWL TOP PANEL More Info.

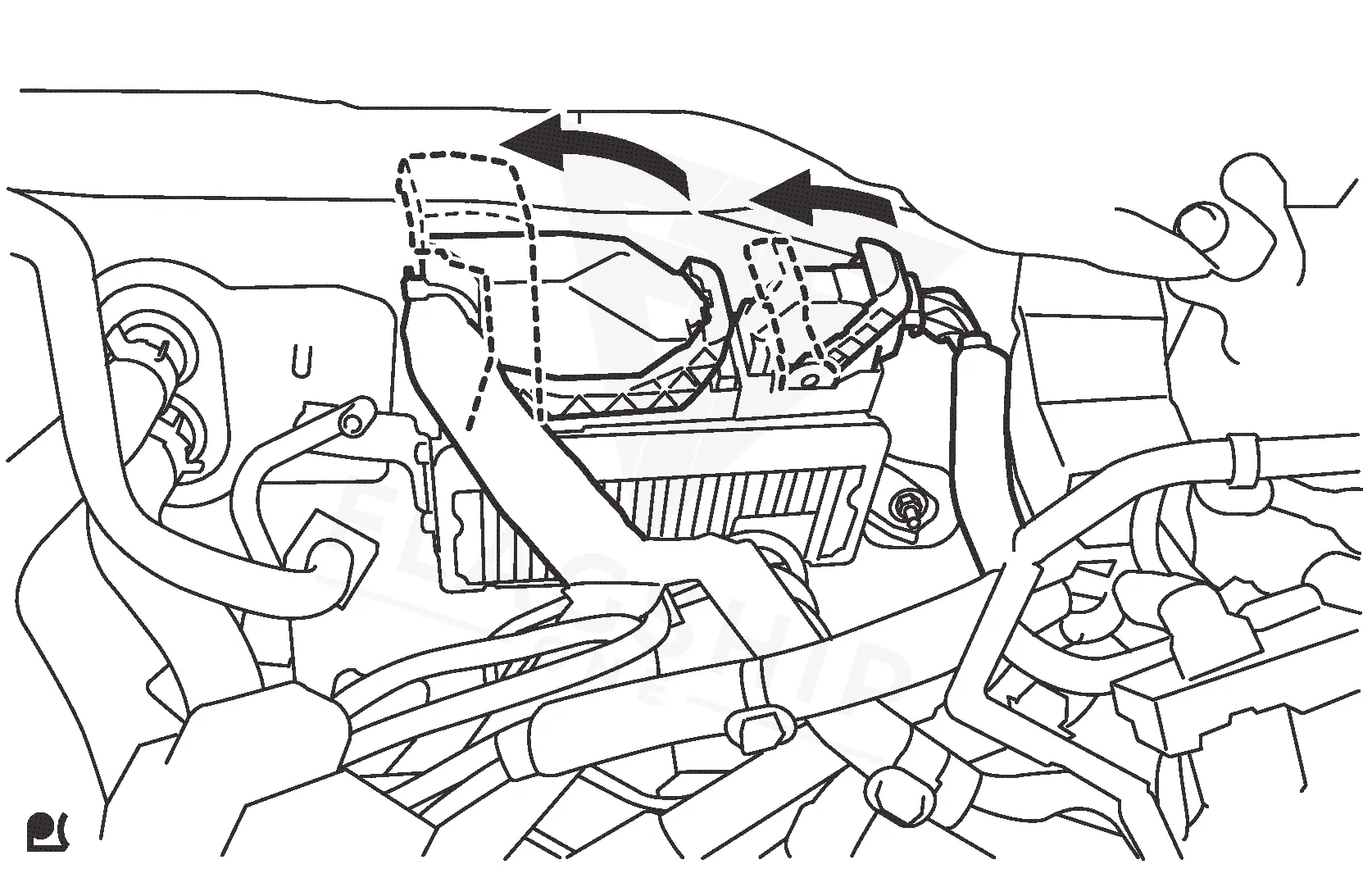

- Pull up the lever to loosen the lock and disconnect the 2 connectors from the ECM.
- Remove the bolt, nut and the ECM.
- Remove the 2 screws and No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
| Powertrain Control Module R&R | All configurations | 1.1 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new unit, the factory procedure calls for a VIN‑specific programming step to load calibration data and encryption keys. Flagship One units arrive already VIN‑programmed, so the technician can skip the on‑site coding and proceed directly to the relearn. This reduces shop time and eliminates the need for a dealer‑level scan tool. The process is completed with a single VIN‑programmed replacement unit installed in the vehicle.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM in a 2014 Toyota Yaris include the engine not cranking, sudden stalling, misfire detection, or loss of communication with a scan tool. Drivers may also notice harsh shifting or limp‑mode operation. When the fault triggers, the system often logs code internal control module memory checksum error which points directly to the control module’s internal logic.
Module Trouble Codes on the 2014 Toyota Yaris
The following internal trouble codes are documented for the 2014 Toyota Yaris and help pinpoint specific module failures.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2014 Toyota Yaris
- Maintain a healthy charging system to avoid voltage drops.
- Inspect and clean all ground connections regularly.
- Avoid high‑voltage spikes from improper jump‑starts.
- Address any stored codes promptly before they recur.
- Ensure connector seals remain intact to prevent moisture intrusion.
Frequently Asked Questions
What are the labor times for replacing the ECM in a 2014 Toyota Yaris?
The factory book lists about 1.1 hours for removal and replacement, plus an additional 0.5 hours for the relearn procedure.
Can a damaged PCM cause transmission shifting issues in my 2014 Yaris?
Yes, the PCM controls shift timing, so a fault can result in harsh or delayed shifts, often accompanied by related diagnostic codes.
Do I need a dealer scan tool to program a new ECM for a 2014 Yaris?
Typically a dealer tool is required for VIN programming, but Flagship One units arrive pre‑programmed, eliminating that step.
When the control module fails, you can choose a repair that involves reprogramming a used unit or install a refurbished replacement that arrives pre‑programmed. Both options restore the 2014 Toyota Yaris to proper operation, but the latter often saves time and reduces the chance of programming errors.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Toyota Yaris with a lifetime warranty, free shipping and no core charge. The full Toyota Yaris module lineup covers other engine configurations as well.
Final Thoughts
If your 2014 Toyota Yaris is showing control module symptoms, consider a Flagship One replacement to simplify the relearn process and get back on the road quickly. Contact a qualified technician to evaluate your options.
