2014 Mazda CX‑5 PCM and ECM Replacement Overview
In the 2014 Mazda CX‑5, the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and transmission behavior. Failure often results from corrupted software or damaged circuitry, leading to loss of control over powertrain functions.
Quick Summary
- Incorrect PCM can disrupt engine management.
- Typical labor for removal and installation is under one hour per module.
- Factory re‑learn procedures are required after replacement.
- Diagnostic codes P0601 and P0606 indicate internal module faults.
When a 2014 Mazda CX‑5 experiences persistent warning lights or erratic transmission behavior, the powertrain computers may be at fault. This guide explains what the PCM and ECM do, how they are accessed, the programming steps needed after a swap, and what symptoms point to a failing unit. By the end, you will know the key repair actions and how a Flagship One replacement fits into the process.
What the PCM Does in a 2014 Mazda CX-5
The Powertrain Control Module in a 2014 Mazda CX‑5 acts as the central command for engine and transmission coordination, interpreting sensor data to adjust fuel, spark, and shift timing. It works alongside the Engine Control Module, which fine‑tunes combustion events. Together they ensure smooth acceleration and emissions compliance. Proper operation is essential for performance and fuel economy. replacement powertrain computers for the 2014 Mazda CX‑5 keep the vehicle running as intended.

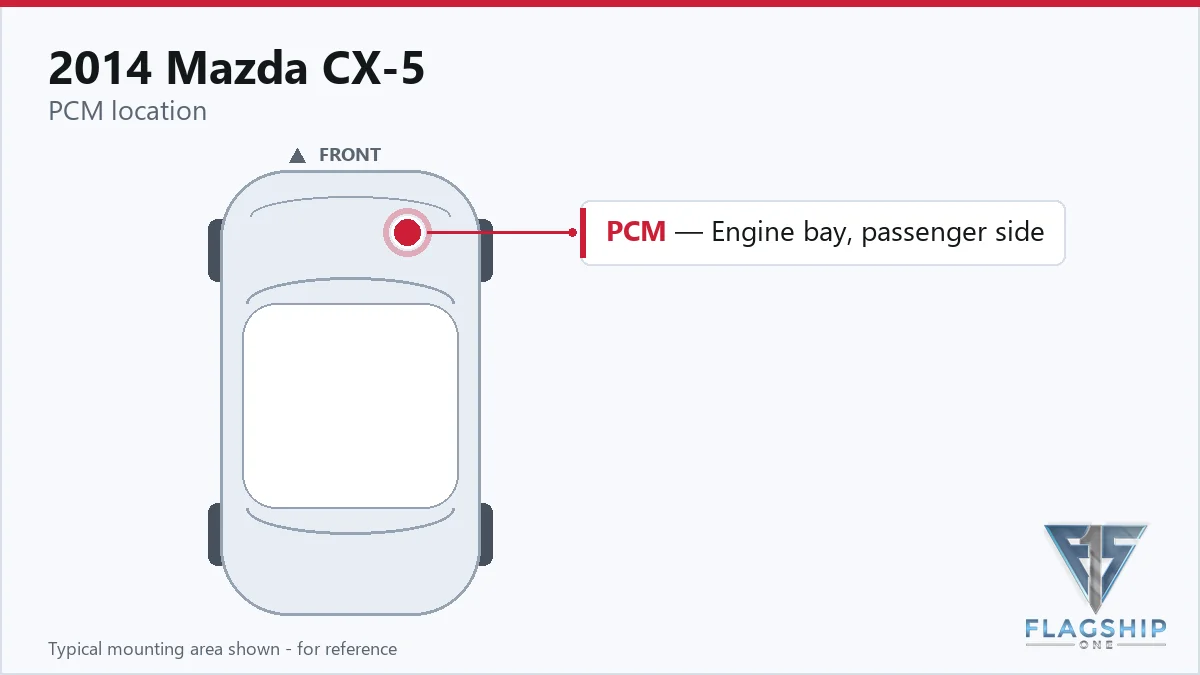

Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment, typically secured to the firewall or near the intake manifold. Removal involves disconnecting the electrical harness, unbolting the unit, and extracting it from its bracket. Installation reverses these steps, using the factory‑specified torque values when available. Labor time listed for removal and replacement is 0.9 hours per module, with an additional 0.5 hours for the required relearn process.
How to Reach the PCM on the 2014 Mazda CX-5
- Disconnect the negative battery cable.
- Remove the PCM cover.
- Disconnect the PCM connector.
- Remove the PCM assembly from the battery tray.
- Remove the PCM from the PCM bracket.
- Press the PCM connector lever until a click sound is heard.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new unit, the factory procedure calls for a PCM relearn and an ECM relearn, each taking about half an hour. Flagship One provides a VIN‑programmed replacement unit that already contains the correct calibration, so those steps are completed before the part reaches you. a VIN‑programmed replacement unit eliminates the need for on‑site reprogramming in most cases.
Symptoms of a Failing PCM
A failing PCM or ECM may cause the engine to refuse to start, stall unexpectedly, or produce misfire codes. You might also see loss of transmission shift control or an inability for a scan tool to communicate. When the module stores internal codes such as processor internal error, the vehicle often logs a generic powertrain fault and illuminates warning lights.
Module Trouble Codes on the 2014 Mazda CX-5
The following internal trouble codes have been documented for the 2014 Mazda CX‑5’s powertrain modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Technical Service Bulletin 05‑004/19 addresses situations where the check engine light and automatic transmission warning illuminate together, citing DTCs like P0842, P0847, P0872, P0877, P0780, and P1738 that reside in the transmission control module memory.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Technical Service Bulletin > Transmission/Transaxle > On-Board Diagnostics > 05-004/19 – Check | — |
Protecting the PCM in Your 2014 Mazda CX-5
- Maintain a healthy charging system to avoid voltage irregularities.
- Ensure all ground connections are clean and secure.
- Avoid large voltage spikes from jump‑starts or improper battery connections.
- Promptly address any stored diagnostic codes.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
Can a wrong PCM cause transmission issues in my 2014 Mazda CX‑5?
Yes, installing an incorrect PCM may interfere with engine control signals that the transmission relies on, leading to shift anomalies or warning lights.
Do I need special tools to remove the ECM from a 2014 Mazda CX‑5?
Standard hand tools are typically sufficient; the main requirement is to disconnect the harness and unbolt the unit according to the service manual.
Is a post‑install relearn always required after replacing the PCM?
Factory guidance suggests a PCM relearn is often needed, but a VIN‑programmed replacement from Flagship One usually includes the necessary calibration, reducing that step.
When the powertrain computers in your 2014 Mazda CX‑5 need attention, you can choose a repair using a new OEM‑spec unit or a refurbished Flagship One replacement. Both approaches address the underlying fault, while the Flagship One option arrives pre‑programmed to match your vehicle’s VIN, potentially saving time on post‑install procedures.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Mazda CX-5 with a lifetime warranty, free shipping and no core charge. The full Mazda CX-5 module lineup covers other engine configurations as well.
Final Thoughts
If your 2014 Mazda CX‑5 is showing powertrain warning signs, evaluating the PCM and ECM condition is a logical next step. A properly installed and calibrated unit restores functionality, and Flagship One’s VIN‑matched replacements simplify the process. Consider your repair path and keep the vehicle running smoothly.
