2014 Lexus IS250C Powertrain and Engine Control Module Overview
In the 2014 Lexus IS250C, the powertrain and engine control modules manage engine timing, fuel delivery, and transmission coordination. Failure typically results from corrupted memory or sensor input errors, triggering the P0606 code and causing drivability issues.
Quick Summary
- Module relearn takes up to half an hour of labor.
- Disconnecting the battery requires a 60‑second wait after engine shutdown.
- P0606 indicates internal control module communication trouble.
When the powertrain or engine control module in your 2014 Lexus IS250C needs service, the process involves specific safety steps and calibrated labor times. This guide explains where the module lives, what the factory requires after replacement, and how to recognize common symptoms. By the end, you’ll understand the necessary precautions and the work involved, helping you decide between a new or refurbished unit.
What the PCM Does in a 2014 Lexus IS250C
The powertrain and engine control modules in a 2014 Lexus IS250C act as the vehicle’s central computers, interpreting sensor data to regulate fuel injection, ignition timing, and transmission shifts. Their proper operation is essential for smooth acceleration and fuel efficiency. replacement engine modules for IS250C keep the car running within design parameters and store adaptive learning data that the vehicle relies on for optimal performance.
Where the PCM Is Located and What Replacement Involves
The modules are accessed by removing the cable attached to the negative battery terminal. Once the cable is detached, the control unit can be reached without additional disassembly. Factory labor times list a 0.5‑hour job for a powertrain control module relearn and 0.7 hours for removal and replacement, while engine control module tasks range from 0.3 to 0.7 hours. No torque specifications are provided in the source data.

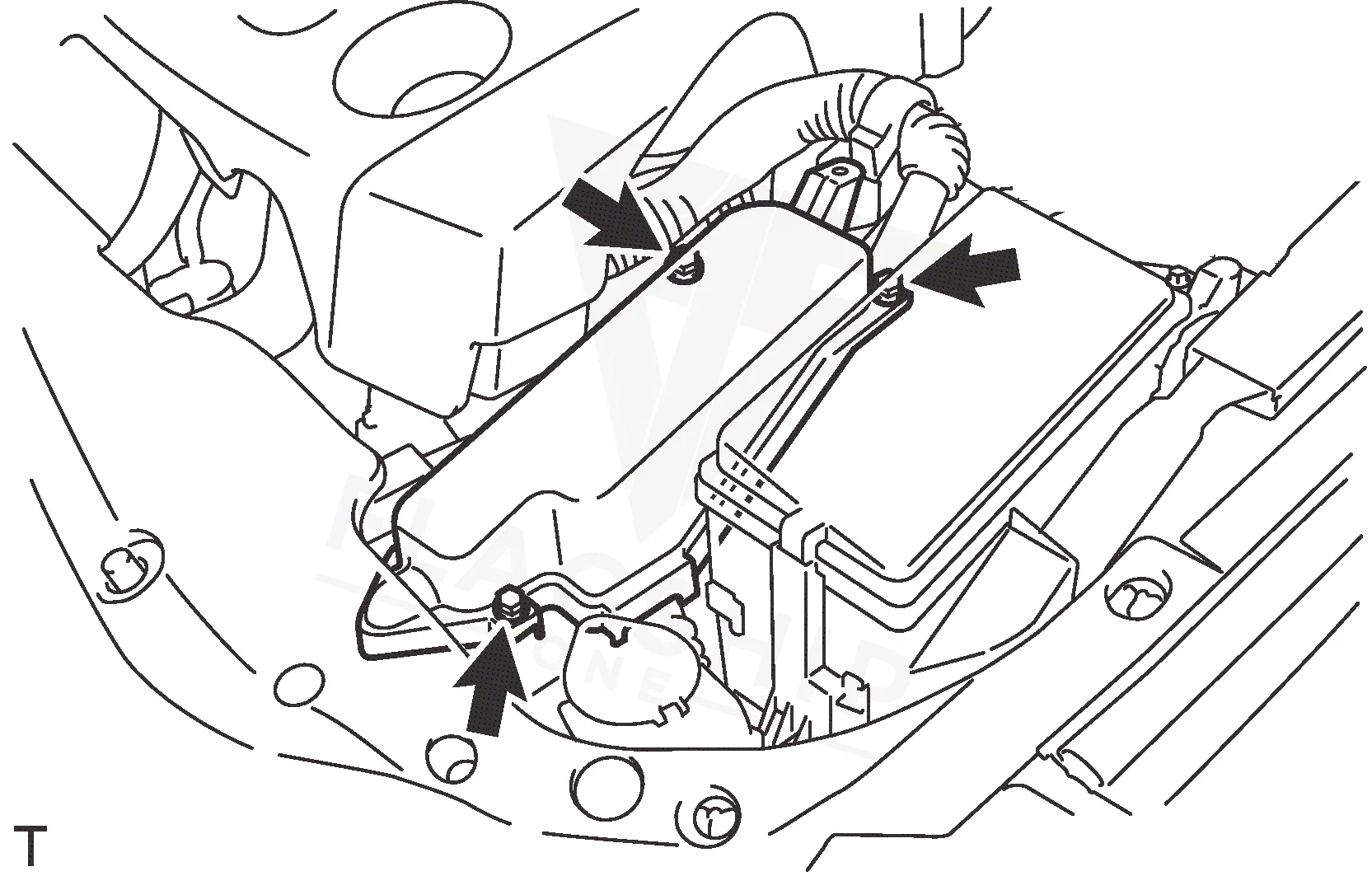

How to Reach the PCM on the 2014 Lexus IS250C
- Disconnect cable from negative battery terminal.
- REMOVE COOL AIR INTAKE DUCT SEAL More Info REMOVE ENGINE ROOM SIDE COVER LH More Info.
- Remove ECM cover.
- Remove the 3 bolts and ECM cover.
- Remove all water on and around the ECM cover.
- Disconnect the ECM connectors.
- Disconnect the 6 ECM connectors.
- Remove the 2 nuts and ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new unit, the factory procedure calls for a powertrain control module relearn lasting about half an hour and an engine control module reset of roughly three‑tenths of an hour. Flagship One supplies a a VIN-programmed replacement unit that already includes the required calibration, eliminating the need for additional on‑site programming steps.
Symptoms of a Failing PCM
Owners of a 2014 Lexus IS250C may notice the engine refusing to start, intermittent stalling, or loss of power when the control module fails. Diagnostic scans often reveal the P0606 powertrain control fault code, and the vehicle may exhibit rough idle, reduced fuel efficiency, or transmission shift irregularities. Communication with scan tools can also be disrupted, making troubleshooting more difficult.
Module Trouble Codes on the 2014 Lexus IS250C
The following internal trouble code is documented for the 2014 Lexus IS250C:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2014 Lexus IS250C
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean ground connections and module connectors regularly.
- Use proper jump‑start techniques to prevent voltage spikes.
- Address any diagnostic codes promptly before they worsen.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What does the P0606 code mean for a 2014 Lexus IS250C?
P0606 signals an internal communication error within the powertrain control module, which can cause erratic engine behavior and loss of driveability.
Do I need special tools to replace the engine control module in my 2014 Lexus IS250C?
The replacement generally requires only the removal of the negative battery cable and standard hand tools; no specialized programming equipment is needed if a VIN‑programmed unit is used.
How long should I wait after turning off the engine before disconnecting the battery on a 2014 Lexus IS250C?
Factory guidance recommends waiting at least 60 seconds after the engine switch is turned off before removing the negative battery cable.
When the control module in your 2014 Lexus IS250C needs attention, you can choose a brand‑new OEM part or a refurbished unit that meets factory specifications. Both options require the same safety steps and post‑install relearn procedures, allowing you to weigh cost against warranty preferences while keeping your vehicle reliable.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Lexus IS250C with a lifetime warranty, free shipping and no core charge. The full Lexus IS250C module lineup covers other engine configurations as well.
Final Thoughts
Addressing powertrain or engine control module issues in a 2014 Lexus IS250C helps restore normal operation and prevent future faults. Consider professional repair or a qualified refurbished replacement to keep your vehicle performing as designed.
