2014 Ford Mustang PCM and ECM Issues Explained
In the 2014 Ford Mustang, the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery, and emission controls. A failure typically disables diagnostic communication and may trigger the malfunction indicator lamp while the vehicle still runs.
Quick Summary
- Labor for PCM removal and reinstall is about half an hour.
- ECM relearn procedure also requires roughly half an hour of work.
- Factory service bulletin 13‑06‑15 addresses MIL illumination without drivability loss on early‑built 5.0L Mustangs.
- The only documented internal fault code for this model is P0606.
When a 2014 Ford Mustang shows a persistent MIL but no obvious loss of power, the underlying control modules often deserve a closer look. This guide walks you through what the PCM and ECM do in this Mustang, how a failure might appear, and what steps a shop typically follows to replace and program the units. By the end, you’ll understand the labor involved, relevant service bulletins, and how Flagship One parts can simplify the process.
What the PCM Does in a 2014 Ford Mustang
The PCM and ECM in a 2014 Ford Mustang act as the brain for engine operation, interpreting sensor data to control fuel injection, ignition timing, and emissions. They also store diagnostic trouble codes and manage communication with other vehicle systems. A malfunction can prevent proper code logging and may illuminate the MIL even when the car drives normally. Understanding this helps you gauge the impact of a replacement. replacement engine computers for Mustang keep the powertrain running smoothly.
Where the PCM Is Located and What Replacement Involves
The PCM and ECM sit within the engine bay, typically mounted near the firewall for easy access. Removal involves disconnecting the electrical connector, unbolting the unit, and extracting it from its bracket. Reinstallation follows the reverse order, with torque specifications applied if listed in the service manual. The book time for a powertrain control module removal and reinstall is 0.5 hours, while an engine control module relearn adds another 0.5 hours, and a full ECM swap is estimated at 0.6 hours.

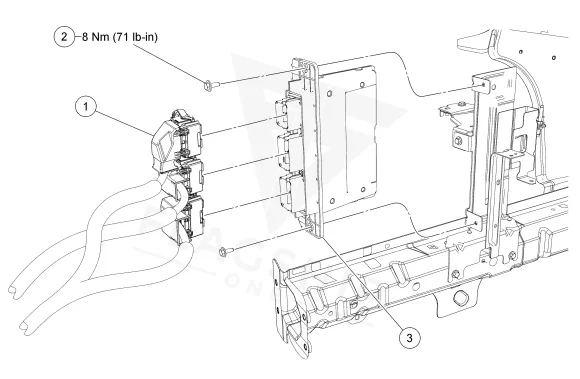

How to Reach the PCM on the 2014 Ford Mustang
- Remove the 8 retainers and the radiator sight shield.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure requires an engine control module relearn to synchronize sensor baselines. Flagship One units arrive already programmed to the vehicle’s VIN, so the relearn step is the only remaining task. a VIN-programmed replacement unit eliminates the need for additional coding equipment.
Symptoms of a Failing PCM
A common sign of PCM or ECM trouble in the 2014 Ford Mustang includes a steady MIL with no noticeable change in performance. Drivers may also see intermittent loss of scan‑tool communication or experience occasional stalling, especially at idle. When the fault is present, the system may log engine control fault as the internal diagnostic code.
Module Trouble Codes on the 2014 Ford Mustang
The following internal trouble codes are documented for the 2014 Ford Mustang and may appear when the PCM or ECM is defective.
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Service bulletin 13‑06‑15 applies to 5.0L Mustangs built on or before May 1, 2013. It addresses MIL illumination without drivability symptoms and covers codes P0300‑P0308 and P0316. The bulletin notes that the issue may arise from the PCM/ECM and recommends diagnostic steps before replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 13-06-15 | 5.0L – BUILT ON OR BEFORE 5/1/2013 – DTCS P0300-P0308 AND/OR P0316 NO DRIVABILITY SYMPTOMS – MA | . PART NUMBER PART NAME FOPZ-9229-A O-ring WARRANTY STATUS: Eligible Under Provisions Of New Vehicle |
Protecting the PCM in Your 2014 Ford Mustang
- Maintain a healthy charging system to avoid voltage drops.
- Ensure all ground connections are clean and secure.
- Protect the electrical system from jump‑start spikes.
- Address diagnostic codes promptly to prevent escalation.
- Inspect connector seals regularly for corrosion or wear.
Frequently Asked Questions
What does a steady MIL indicate on a 2014 Ford Mustang?
It often points to a PCM or ECM fault that does not affect drivability, such as the condition described in TSB 13‑06‑15.
Do I need special tools to program a new ECM in my Mustang?
Factory programming typically requires a scan tool for the relearn step, but a VIN‑programmed unit from Flagship One arrives ready, reducing the need for additional equipment.
Can a faulty PCM cause loss of diagnostic communication?
Yes, a malfunctioning PCM may prevent the scan tool from reading data, leading to intermittent or complete communication loss.
When the PCM or ECM fails, you can choose a new factory‑spec unit or a refurbished replacement. Both options restore module function, but a refurbished part from Flagship One offers a cost‑effective solution with the same VIN programming, eliminating the need for post‑install coding.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2014 Ford Mustang with a lifetime warranty, free shipping and no core charge. The full Ford Mustang module lineup covers other engine configurations as well.
Final Thoughts
If your 2014 Ford Mustang shows MIL illumination without drivability issues, evaluating the PCM and ECM is a logical next step. Consider a replacement that matches factory specifications, and remember that proper installation and relearn are essential for reliable performance.
