2013 Scion xD PCM & ECM Replacement: Complete Guide

If your 2013 Scion xD has developed starting problems, stalling issues, or is displaying multiple diagnostic trouble codes, the Engine Control Module or Powertrain Control Module may be the culprit. These sophisticated computers serve as the brain of your vehicle’s powertrain, continuously monitoring and adjusting engine operations to maintain optimal performance and fuel efficiency. This guide walks you through understanding module failure in your specific vehicle, recognizing the warning signs, and evaluating your replacement options. Whether you’re a do-it-yourself mechanic or planning to discuss repair options with a professional, you’ll find detailed information about the replacement process, programming requirements, and what to expect during restoration of your Scion xD’s electronic control system.

What the PCM Does in a 2013 Scion xD

The Engine Control Module in your 2013 Scion xD functions as the primary processor for all engine management decisions. This computer receives input from dozens of sensors throughout the powertrain, including the mass air flow sensor, coolant temperature sensor, oxygen sensors, and throttle position sensor. Using this data, the ECM calculates optimal fuel injector pulse width, determines spark advance timing, and manages the variable valve timing system unique to the 1.8L four-cylinder engine. The Powertrain Control Module often integrates transmission control functions, making it responsible for shift firmness, torque converter lockup, and gear selection logic. When this processor encounters an internal fault, the module may enter a protective limp mode or cease functioning entirely. The replacement engine computers for the xD must be programmed with your specific vehicle identification number to communicate properly with the factory security system and ensure all sensors receive appropriate calibration data. Without correct VIN programming, the engine may crank but refuse to start, or the immobilizer system may prevent key recognition.

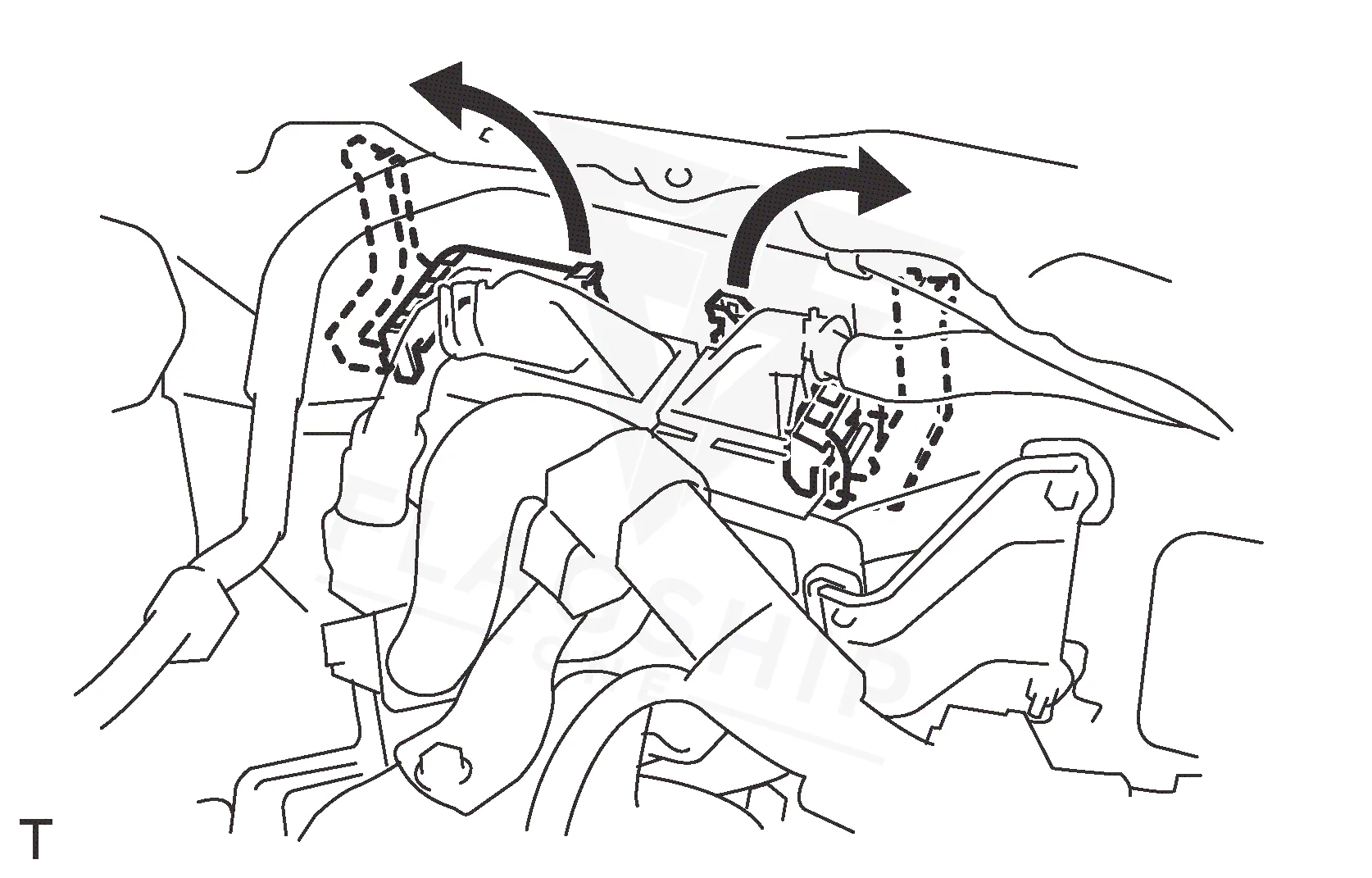

Where the PCM Is Located and What Replacement Involves

The ECM on a 2013 Scion xD is located in the engine compartment, typically mounted to the firewall or inner fender panel on the driver’s side. Access requires removal of the engine cover and possibly the air intake ductwork. The module is housed in a sealed aluminum enclosure with a multi-pin electrical connector secured by mounting bolts. Replacement involves disconnecting the battery negative terminal first, then carefully unplugging the wiring harness while noting the routing for reinstallation. The factory labor allocation for Powertrain Control Module removal and reinstallation is 0.9 hours, though this does not include any programming or relearn procedures. After the new or remanufactured unit is secured, all connectors must be properly seated and torqued to specification. Reconnecting the battery completes the mechanical portion of the repair, though the vehicle will likely require initialization procedures before normal operation resumes.

Programming Requirements After Replacement

Following module replacement, your 2013 Scion xD requires initialization procedures to establish communication between the new ECM and the rest of the vehicle’s network. The factory service procedure specifies a Powertrain Control Module relearn process taking 0.5 hours and an Engine Control Module relearn procedure requiring an additional 0.5 hours. If diagnostic code P0630 is present in the old module, the technician must input the VIN using the Toyota Techstream diagnostic software. Importantly, all stored diagnostic trouble codes are automatically cleared when the VIN is programmed into the new module, eliminating the need for a separate clearing procedure. Flagship One addresses this requirement by shipping replacement units that arrive pre-programmed with your specific VIN, meaning the post-install programming steps are largely completed before the module ever reaches your door. This saves significant time at the repair facility and eliminates the need for dealer-level software access.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the Engine Control Module in your 201ion xD begins to fail, the symptoms often progress from subtle drivability complaints to complete no-start conditions. Common early indicators include intermittent stalling, especially during idle or low-speed maneuvering, and hesitation under acceleration that may feel like a fuel delivery problem. The check engine light frequently illuminates with multiple pending trouble codes, often related to sensor circuits that are actually functioning correctly but reporting abnormal values because the processor cannot interpret them properly. In some cases, the scan tool may fail to communicate with the ECM entirely, returning no data or displaying connection errors. Transmission shifting may become harsh or erratic if the integrated PCM loses the ability to process shift solenoid commands. The internal fault code P0606 specifically indicates a processor performance problem within the module itself, suggesting the computational core has developed a hardware fault rather than a wiring or sensor issue. Other module-internal codes that may appear include P0607, P0608, and P0609, all pointing to various aspects of processor malfunction.

Module Trouble Codes on the 2013 Scion xD

Module-internal trouble codes differ from typical diagnostic trouble codes in that they indicate problems within the control module itself rather than faults in external sensors or wiring. For the 2013 Scion xD, the documented internal code is P0606, which signifies processor malfunction. When this code appears without corresponding sensor-related trouble codes, module replacement is typically required rather than investigation of external circuits.

Protecting the PCM in Your 2013 Scion xD

• Maintain the charging system by testing battery voltage regularly and replacing the alternator if output falls below specification, as low voltage can corrupt ECM memory
• Inspect and clean ground connections at the engine block and firewall annually to ensure stable electrical reference for the module
• Avoid jump-starting from vehicles with incompatible electrical systems or use proper polarity to prevent voltage spikes that can damage the processor
• Address check engine lights promptly rather than ignoring them, as underlying issues can cascade into module damage over time
• Keep engine bay connector seals intact and free of debris, preventing moisture intrusion that leads to corrosion and short circuits
• Use quality fuel and replace the engine air filter regularly to prevent contaminated air from affecting sensor readings that stress the ECM

Frequently Asked Questions

Will a used PCM from a scrap yard work in my 2013 Scion xD?

A used PCM requires VIN programming to function in your specific vehicle. Without proper programming, the immobilizer system will prevent the engine from starting, and the module may not communicate with the transmission control module. Additionally, used units carry unknown mileage and may fail soon after installation.

Can I drive my Scion xD with a failing ECM?

Driving with a compromised ECM is not recommended. The module may enter fail-safe mode, limiting engine power and causing unpredictable shifting. In worst cases, the engine may stall suddenly while driving, creating a safety hazard. Additionally, continued operation with an internal fault may cause damage to catalytic converters or other emissions components.

Why does my Scion xD need VIN programming after ECM replacement?

The 2013 Scion xD uses an immobilizer system tied to the vehicle identification number. The ECM must be programmed with your specific VIN to authenticate with the smart key system and enable fuel delivery. This security feature prevents theft but requires dealer-level software or compatible scan tools for programming.

What’s the difference between the ECM and PCM in my vehicle?

The Engine Control Module manages engine functions while the Powertrain Control Module may integrate transmission control. Some vehicles use separate modules while others combine functions. For the 1.8L Scion xD, these terms often refer to the same physical unit controlling both engine and transmission operations.

How do I know if my Scion xD has an ECM or PCM problem versus a sensor issue?

Module-internal codes like P0606 indicate processor failure within the ECM itself. If multiple unrelated sensor codes appear simultaneously or your scan tool cannot establish communication, the module is likely at fault. A professional diagnosis can confirm whether the issue lies with the computer or external components.

When your 2013 Scion xD requires ECM or PCM replacement, you have two primary paths forward. A new OEM unit from the dealership ensures exact specification matching but carries significant cost and requires dealer programming. Remanufactured units from Flagship One arrive with your VIN already programmed, saving substantial labor time and often providing better value without sacrificing reliability. Consider your budget, timeline, and mechanical comfort level when choosing between these options for your specific vehicle.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2013 Scion xD with a lifetime warranty, free shipping and no core charge. The full Scion xD module lineup covers other engine configurations as well.

Final Thoughts

The Engine Control Module in your 2013 Scion xD is a sophisticated computer that, when functioning properly, keeps your 1.8L engine running smoothly and efficiently. Recognizing failure symptoms early and addressing them promptly can prevent secondary damage and get you back on the road faster. Whether you choose professional installation or tackle the project yourself, understanding the programming requirements and replacement process ensures a successful repair for your Scion xD.
