2012 Scion xD PCM Failure: Symptoms, Replacement, and Programming Guide

If your 2012 Scion xD has begun stalling unexpectedly, refusing to start, or logging cryptic engine codes, the powertrain control module (PCM) may be the culprit. This compact computer sits at the heart of your vehicle’s operations, coordinating everything from fuel injection to transmission shifts. When it fails, symptoms can range from subtle drivability quirks to complete immobilization. Replacing the PCM isn’t just about swapping a part—it involves careful handling to avoid voltage spikes, precise installation, and often, a factory-mandated relearn procedure. Understanding these steps helps you avoid unnecessary delays and ensures your Scion xD returns to reliable performance. Whether you’re diagnosing a no-start condition or addressing a stored trouble code, knowing what to expect from the PCM replacement process can save time and frustration.

What the PCM Does in a 2012 Scion xD

The powertrain control module (PCM) in your 2012 Scion xD serves as the brain of the engine and transmission systems. It continuously monitors sensor inputs—like throttle position, oxygen levels, and engine temperature—to adjust fuel delivery, ignition timing, and shift points in real time. This ensures optimal performance, fuel efficiency, and emissions compliance. Without a functioning PCM, your vehicle may struggle to start, run roughly, or even enter a limp-home mode to prevent further damage. The module also stores critical data, such as the vehicle identification number (VIN), which must be reprogrammed if the PCM is replaced. Given its role, a failing PCM can mimic other issues, such as fuel pump or sensor failures, making accurate diagnosis essential. For those needing a replacement, replacement engine computers for the Scion xD are designed to restore full functionality, but proper installation and programming are key to avoiding recurring problems.

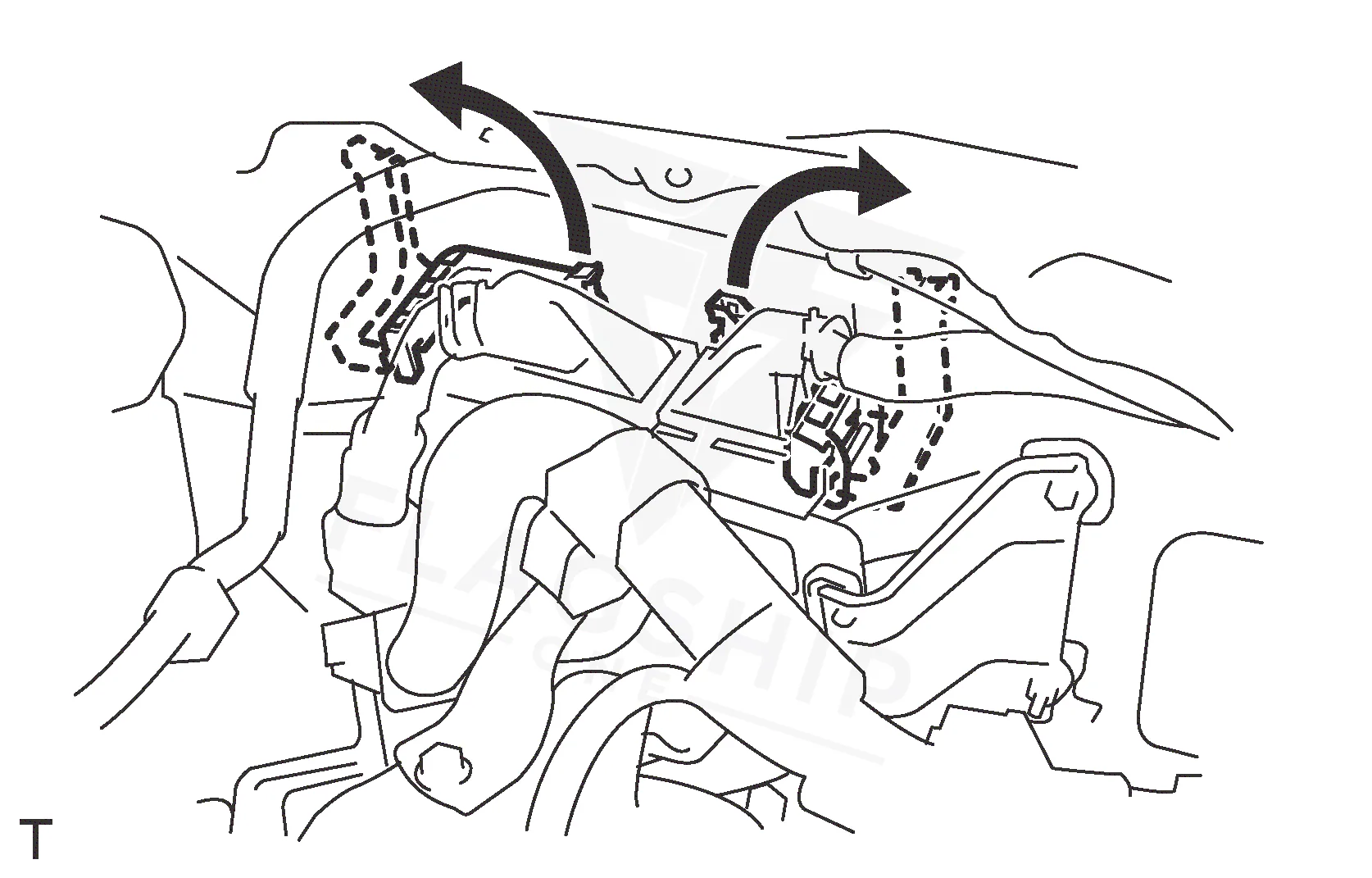

Where the PCM Is Located and What Replacement Involves

In the 2012 Scion xD, the PCM is typically mounted in the engine bay, often near the firewall or strut tower for protection from heat and moisture. Replacing it involves disconnecting the negative battery terminal first—though you’ll need to wait a short period after turning the ignition off to avoid voltage spikes that could damage the new module. Once the battery is disconnected, the PCM is accessed by removing its protective cover and unplugging the wiring harness. The factory labor estimate for removal and reinstallation (R&R) is 0.9 hours. After installation, the module must be relearned to the vehicle, a process that adds another 0.5 hours of labor. Torque specifications for the mounting bolts are critical to ensure a secure fit and proper grounding, though exact values aren’t always published. Always follow the factory cautions to avoid introducing new issues during the swap.

Programming Requirements After Replacement

After replacing the PCM in your 2012 Scion xD, the factory procedure requires a relearn process to synchronize the module with the vehicle’s systems. This typically involves using a scan tool like the Techstream to input the VIN and reset stored data. However, if the stored trouble code P0630 is present, the VIN must be manually programmed into the new PCM, which can add complexity to the process. All diagnostic trouble codes (DTCs) are automatically cleared during this step, but skipping it may leave the vehicle inoperable or trigger warning lights. To simplify the process, a VIN-programmed replacement unit arrives pre-configured with your vehicle’s data, eliminating the need for manual VIN input and reducing the risk of programming errors. This ensures the module is ready to function immediately after installation, saving time and avoiding potential headaches during the relearn phase.

Symptoms of a Failing PCM

A failing PCM in your 2012 Scion xD may produce a range of symptoms, some of which can be mistaken for other issues. Common signs include intermittent stalling, especially at idle or during deceleration, as the module struggles to maintain consistent fuel and spark delivery. You might also experience a no-start condition, where the engine cranks but refuses to fire, often accompanied by a lack of communication with a scan tool. Misfires or rough running can occur if the PCM fails to adjust ignition timing or fuel mixture correctly. Transmission shifting may become erratic or delayed, as the module controls shift points and torque converter lockup. Warning lights, such as the check engine or transmission light, may illuminate, and stored codes like internal processor malfunction can provide a clear indication of PCM failure. In some cases, the vehicle may enter a limp-home mode, limiting speed and performance to prevent further damage. If you notice any of these symptoms, prompt diagnosis is key to avoiding more severe issues down the road.

Module Trouble Codes on the 2012 Scion xD

The 2012 Scion xD’s PCM may log specific trouble codes when internal faults occur. These codes help pinpoint the source of drivability issues and guide the diagnostic process. Below are the documented module-internal trouble codes for this vehicle.

Factory Service Bulletins Worth Knowing

Factory cautions for the 2012 Scion xD emphasize the importance of following proper procedures when disconnecting the battery or replacing the PCM. Before removing the negative battery cable, the ignition must be turned off, and a waiting period may be required to prevent voltage spikes that could damage the new module. If the trouble code P0630 is stored, the VIN must be manually input into the PCM using the Techstream scan tool, as this code indicates a VIN mismatch. During this process, all diagnostic trouble codes are automatically cleared, so it’s important to document any existing codes before proceeding. These steps are critical to ensuring the new PCM functions correctly and avoids introducing new issues.

Protecting the PCM in Your 2012 Scion xD

• Maintain a healthy charging system to prevent voltage spikes that can damage the PCM.
• Keep battery terminals and PCM connectors clean and free of corrosion to ensure reliable electrical contact.
• Avoid jump-starting the vehicle with improper voltage, as this can overload the module.
• Address any stored trouble codes promptly to prevent cascading failures in related systems.
• Ensure the PCM’s protective cover is securely in place to shield it from moisture and debris.
• Use dielectric grease on connectors to prevent oxidation and improve conductivity over time.

Frequently Asked Questions

Why does my 2012 Scion xD stall intermittently, and could the PCM be the cause?

Intermittent stalling in your Scion xD may stem from a failing PCM, particularly if the module struggles to maintain consistent fuel or spark delivery. Other symptoms, like rough idling or misfires, often accompany this issue. A scan tool can help confirm whether the PCM is logging internal faults or communication errors.

What happens if I replace the PCM in my 2012 Scion xD without reprogramming it?

Skipping the reprogramming step after PCM replacement can leave your Scion xD inoperable or trigger warning lights. The module must be synchronized with the vehicle’s systems, including VIN input, to function correctly. A pre-programmed unit eliminates this risk by arriving ready for installation.

How do I know if the PCM in my 2012 Scion xD is failing or if it’s another issue?

A failing PCM often produces multiple symptoms, such as stalling, no-start conditions, or erratic transmission shifts. Stored trouble codes like P0606 can provide a clear indication of PCM failure. However, similar symptoms may also point to sensor or wiring issues, so a thorough diagnosis is recommended.

Can I drive my 2012 Scion xD with a bad PCM, or will it cause further damage?

Driving with a failing PCM may lead to further damage, particularly if the module causes misfires or improper fuel delivery. The vehicle may also enter limp-home mode, limiting performance to prevent additional issues. Prompt replacement is advised to avoid costly repairs.

What’s the difference between a PCM and an ECM in my 2012 Scion xD?

In the 2012 Scion xD, the terms PCM (powertrain control module) and ECM (engine control module) are often used interchangeably, as the module controls both engine and transmission functions. The PCM integrates the roles of what might be separate modules in other vehicles, managing fuel, ignition, and shift points in one unit.

If your 2012 Scion xD is experiencing PCM-related issues, you have options for repair or replacement. A refurbished or new module can restore full functionality, but proper programming is essential to avoid recurring problems. For those looking to simplify the process, a pre-programmed replacement unit ensures the module is ready to install, eliminating the need for manual VIN input and reducing downtime. Weighing the cost and convenience of each approach can help you decide the best path forward for your vehicle.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Scion xD with a lifetime warranty, free shipping and no core charge. The full Scion xD module lineup covers other engine configurations as well.

Final Thoughts

The 2012 Scion xD relies on its PCM to manage critical engine and transmission functions, making its proper operation essential for reliable performance. If you’re dealing with stalling, no-start conditions, or stored trouble codes, addressing the PCM promptly can prevent further complications. Whether you opt for a repair or a pre-programmed replacement, understanding the process ensures a smoother experience. Taking steps to protect your vehicle’s electrical system can also help extend the life of the new module.
