2012 Scion tC Powertrain and Engine Control Module Replacement Guide
In the 2012 Scion tC the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery and transmission shift strategy. A failure typically triggers the P0606 code and can cause loss of power, stalling or no‑start conditions.
Quick Summary
- PCM and ECM removal each require about 0.7 hours of labor.
- Relearn procedures add roughly 0.5 hours for each module.
- The control modules sit beside the air‑cleaner assembly and need several components removed to access.
- After replacement, a VIN‑programmed unit eliminates the need for additional programming steps.
When a 2012 Scion tC begins to exhibit intermittent power loss, rough idle or a persistent P0606 code, the powertrain and engine control modules are likely suspects. This guide explains where the modules reside, what labor is involved in taking them out and installing new units, and which post‑install procedures are required. By following the outlined steps you can understand the scope of the job and what to expect from a professional repair or a quality refurbished replacement.
What the PCM Does in a 2012 Scion tC
The Powertrain Control Module (PCM) and Engine Control Module (ECM) in the 2012 Scion tC act as the vehicle’s brain, continuously monitoring sensor data to regulate fuel injection, ignition timing and transmission shift points. Their proper function is essential for smooth acceleration, emissions compliance and overall drivability. replacement powertrain control modules for the 2012 Scion tC ensure the car runs as engineered and prevents error codes from appearing on the diagnostic scanner.
What Replacing the PCM Involves

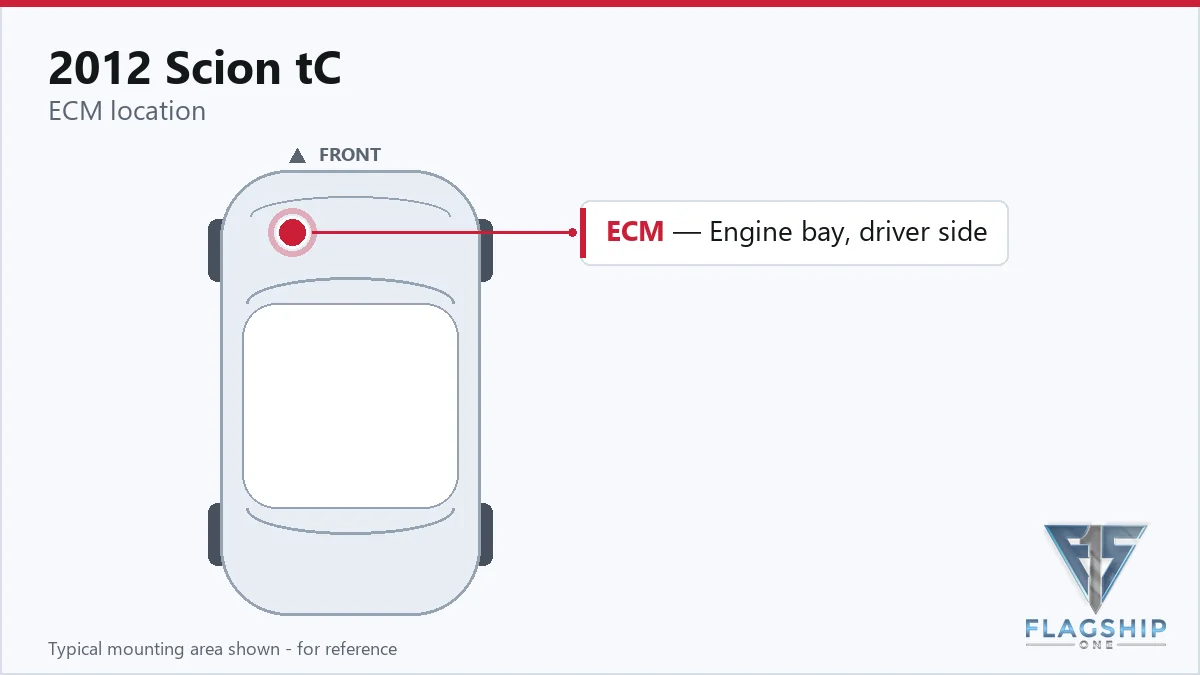

How to Reach the PCM on the 2012 Scion tC
- Disconnect cable from negative battery terminal.
- Remove air cleaner cap sub-assembly.
- Disconnect the mass air flow meter connector.
- Disconnect the purge VSV connector.
- Detach the 2 wire harness clamps.
- Disconnect the 2 purge line hoses.
- Disconnect the No.
- Disconnect the purge line hose from the clamp.
- Detach the 2 hook clamps, and then remove the air cleaner cap.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.7 hr |
Programming Requirements After Replacement
After the PCM or ECM is installed, the factory service routine calls for a relearn of the powertrain control module for 0.5 hours and an engine control module relearn for another 0.5 hours. Flagship One units arrive as a VIN‑programmed replacement unit so those relearn steps are already completed at the factory, simplifying the installation process.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 2012 Scion tC include a no‑start condition, rough idle, unexpected stalling, or loss of transmission shift control. The diagnostic scanner may lose communication with the control unit, and the P0606 code can appear, indicating an internal processor fault. internal processor fault often accompanies these symptoms, prompting a module inspection.
Module Trouble Codes on the 2012 Scion tC
The following table lists the internal diagnostic trouble code documented for the 2012 Scion tC control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Protecting the PCM in Your 2012 Scion tC
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean ground connections and module connectors regularly.
- Avoid jump‑starts that can introduce voltage spikes to the electronics.
- Address any stored codes promptly before they cause further damage.
- Keep connector seals intact to prevent moisture intrusion.
Frequently Asked Questions
What does the P0606 code indicate on a 2012 Scion tC?
P0606 signals an internal processor fault within the PCM or ECM. It often results in erratic engine behavior and may require module replacement after confirming wiring and power integrity.
How long does it typically take to replace the PCM in a 2012 Scion tC?
Labor is generally quoted at about 0.7 hours for removal and installation, plus an additional 0.5 hours for the required relearn procedure.
Do I need special tools to access the control modules on my 2012 Scion tC?
No unique tools are listed; standard hand tools are sufficient to remove the air‑cleaner components and disconnect the battery cable as described.
When the PCM or ECM in your 2012 Scion tC needs attention, you can choose a factory‑new unit or a refurbished replacement that meets original specifications. Both options require the same access steps, but a refurbished module from Flagship One arrives VIN‑programmed, eliminating the post‑install relearn work and helping you return the car to service more quickly.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Scion tC with a lifetime warranty, free shipping and no core charge. The full Scion tC module lineup covers other engine configurations as well.
Final Thoughts
Replacing the powertrain or engine control module in a 2012 Scion tC restores proper engine management and eliminates the P0606 code. Consider a VIN‑programmed replacement to simplify the process and get back on the road with confidence.
