2012 Kia Sorento ECM Replacement – Labor, Location, and Programming
In the 2012 Kia Sorento the Engine Control Module manages fuel delivery, ignition timing, and emissions functions. A failure typically disrupts engine speed control, triggers diagnostic codes, and can illuminate the MIL, preventing normal operation.
Quick Summary
- Removal and installation each require about 0.6 hours of labor.
- The ECM bolts must be tightened between 7.8 Nm and 11.8 Nm.
- Factory procedures call for a VIN to be programmed into the new unit.
- Service bulletins address DTC P0455 and related emissions updates.
When the engine control module in your 2012 Kia Sorento shows signs of trouble, the repair path often involves removal, replacement, and reprogramming. This guide explains where the module lives, how long the work typically takes, the torque specifications you’ll encounter, and what programming steps are required. By following these details you can gauge the scope of the job and understand how a Flagship One unit fits into the process.
What the PCM Does in a 2012 Kia Sorento
The Engine Control Module in a 2012 Kia Sorento acts as the brain for engine management, interpreting sensor data to control fuel injection, spark timing, and emissions systems. It also communicates with the powertrain control module to coordinate shifting and drivetrain functions. Proper operation is essential for fuel efficiency and emissions compliance. The module’s role becomes especially critical when diagnostic trouble codes appear, prompting the need for a reliable replacement engine computers for the 2012 Kia Sorento to maintain vehicle performance.

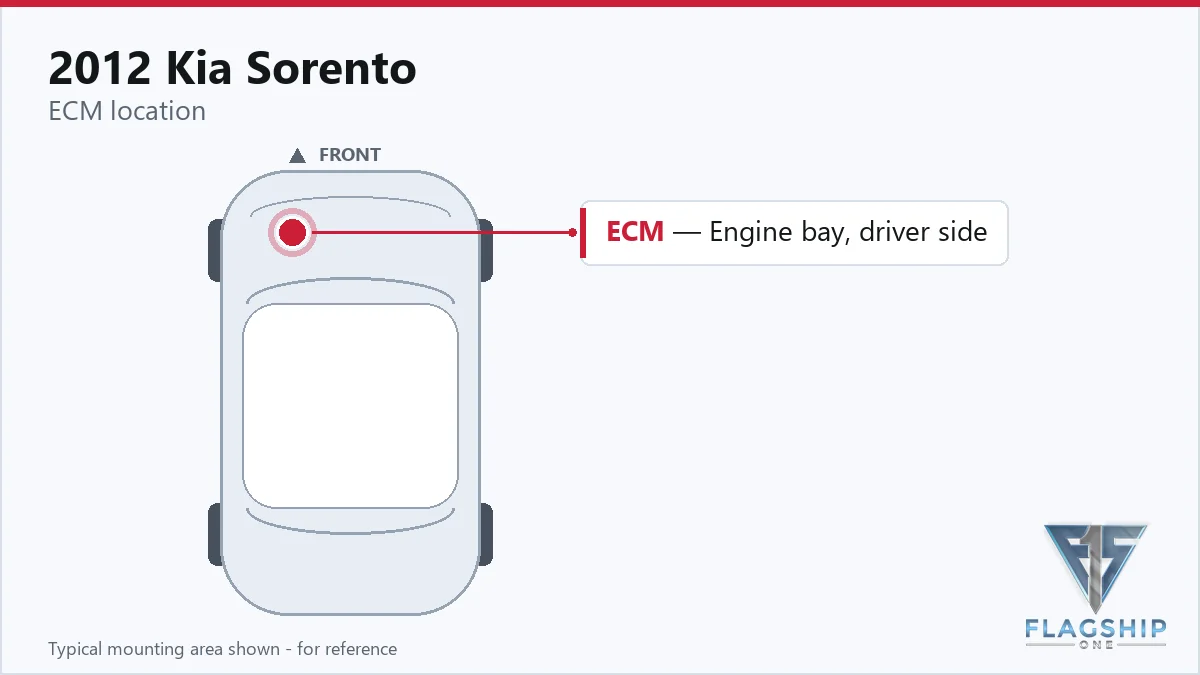

Where the PCM Is Located and What Replacement Involves
The ECM sits beside the air cleaner assembly, making it reachable once that component is removed. Factory labor times list 0.6 hours for removal and the same for installation, with an additional 0.5 hours for relearn procedures. Bolt torque values range from 7.8 Nm up to 11.8 Nm, so a torque wrench set to that window is required to secure the unit correctly. Access involves disconnecting the air cleaner, then unplugging the ECM harness before the module can be taken out.
How to Reach the PCM on the 2012 Kia Sorento
- Turn ignition switch OFF and disconnect the negative (-) battery cable.
- Disconnect the ECM Connector.
- Remove the air cleaner assembly.
- Remove the mounting bolts, and then remove the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the ECM is installed, the factory process requires the vehicle identification number to be programmed into the new unit. Flagship One supplies a a VIN-programmed replacement unit so that this step is already completed, eliminating the need for a separate programming session. The remaining steps include a standard relearn cycle, which typically takes about half an hour of diagnostic time.
Symptoms of a Failing PCM
A failing ECM in a 2012 Kia Sorento may cause the engine to stall, refuse to start, or run roughly, often accompanied by a check‑engine light. You might also see erratic transmission behavior or loss of diagnostic communication. When the internal fault code P0605 internal appears, it points directly to the module’s internal circuitry, confirming the need for inspection or replacement.
Module Trouble Codes on the 2012 Kia Sorento
The following codes are documented for the 2012 Kia Sorento’s engine control module and may appear during diagnostics:
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Factory Service Bulletins Worth Knowing
Service bulletins relevant to this model include ENG 103 and ENG 117, both addressing MIL illumination with DTC P0455 and providing logic improvements. Additionally, ENG 116 covers an ECM upgrade for the XM/VQ 3.5 L engine, though it has been superseded by ENG 129. These bulletins guide technicians on updates and calibration steps.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | TSB • Emissions Control System • [ENG103] ECM Upgrade – MIL on with DTC P0455 (ENG 103) | — |
| — | TSB • Fuel System • [ENG117] ECM Upgrade – – MIL on with DTC P0455 Logic Improvement (ENG 117) | — |
| — | TSB • Fuel System • [ENG116] ECM Upgrade XM/VQ 3.5L MIL On with DTC P0638 (ENG 116 – – CLOSED S | — |
Protecting the PCM in Your 2012 Kia Sorento
- Maintain a healthy charging system to avoid voltage drops.
- Keep ground straps and connector pins clean and free of corrosion.
- Avoid large voltage spikes from jump‑starts or improper battery connections.
- Address diagnostic codes promptly before they worsen.
- Inspect and reseal ECM connectors to keep moisture out.
Frequently Asked Questions
What labor time is typical for replacing the ECM in a 2012 Kia Sorento?
Factory guidelines suggest about 0.6 hours for removal and another 0.6 hours for installation, plus roughly 0.5 hours for relearn procedures.
Do I need special tools to install the ECM on a 2012 Kia Sorento?
A torque wrench set to between 7.8 Nm and 11.8 Nm is required to secure the mounting bolts correctly.
Is VIN programming always necessary after ECM replacement?
Yes, the factory procedure calls for programming the vehicle identification number, but a Flagship One unit arrives with that step already completed.
When the ECM fails, you can choose a repair that follows factory labor times and torque specs, or consider a refurbished replacement that matches the original specifications. Both paths aim to restore engine control functions, but a refurbished unit from Flagship One includes the required VIN programming, reducing on‑site work.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Kia Sorento with a lifetime warranty, free shipping and no core charge. The full Kia Sorento module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2012 Kia Sorento, addressing ECM issues promptly helps keep the engine running smoothly and emissions compliant. Whether you opt for a new or refurbished unit, following the documented procedures will ensure reliable performance.
