2012 Ford Fusion PCM and ECM Replacement Guide
In the 2012 Ford Fusion the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery and transmission coordination. When either computer fails, the vehicle may refuse to start, stall unexpectedly, or generate processor‑related codes, indicating loss of critical control signals.
Quick Summary
- Labor for PCM removal and install typically runs about 1.0 hour for gasoline models.
- ECM replacement on the 3.5L engine also averages 1.0 hour.
- Both modules require a relearn procedure of roughly half an hour after installation.
- Flagship One units arrive pre‑programmed, eliminating the need for on‑site VIN coding.
You may have discovered that your 2012 Ford Fusion is exhibiting no‑start conditions or erratic engine behavior. The likely culprit is a faulty Powertrain Control Module (PCM) or Engine Control Module (ECM), the brains that tell the engine how to run. This guide explains what these modules do, how technicians replace them, and what you can expect when a Flagship One unit is installed, so you can make an informed decision about repair options.
What the PCM Does in a 2012 Ford Fusion
The PCM in a 2012 Ford Fusion monitors sensor data and directs fuel injection, ignition timing and transmission shift points, while the ECM focuses on engine‑specific parameters such as idle control and emissions. Together they ensure the powertrain runs smoothly and meet emissions standards. A failure can interrupt communication with the vehicle’s sensors, leading to loss of power or a complete no‑start. Understanding the role of these computers helps you see why a timely replacement is important. replacement powertrain control modules for the 2012 Ford Fusion keeps the vehicle operating within factory specifications.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment, typically secured with bolts that require about one hour of labor to remove and reinstall on a gasoline‑engine Fusion. The ECM for the 3.5L version also follows the same one‑hour labor estimate. After the unit is swapped, technicians perform a relearn cycle lasting roughly half an hour to synchronize the new computer with the vehicle’s existing sensors and actuators. Access may involve disconnecting the battery and removing a few connectors before the module can be extracted.

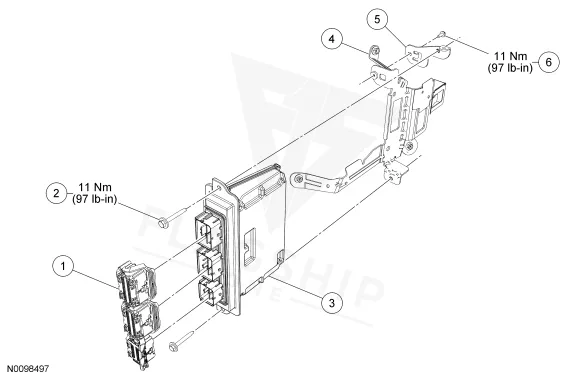

How to Reach the PCM on the 2012 Ford Fusion
- Remove the cowl panel grille.
- Disconnect the vacuum hose from the vacuum brake booster.
- Disconnect the 3 PCM electrical connectors.
- Remove the ground strap bolt and disconnect the ground strap retainer.
- Remove the two LH splash shield pin-type retainers and position the LH splash shield aside.
- Remove the lower PCM bolt and the upper PCM bracket bolt.
- Remove the PCM.
- Remove the upper PCM bolt and the PCM bracket from the PCM.
- Position the LH splash shield and install the two LH splash shield pin-type retainers.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | GAS | 1.0 hr |
| Powertrain Control Module R&R | All configurations | 1.7 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | GAS | 1.0 hr |
| Engine Control Module R&R | All configurations | 1.7 hr |
| Engine Control Module R&R | 3.0L | 1.0 hr |
| Engine Control Module R&R | 3.5L | 1.0 hr |
Programming Requirements After Replacement
Once the PCM or ECM is physically installed, the factory procedure calls for a reprogramming step that writes the vehicle identification number and calibrations into the new unit. Flagship One supplies a pre‑configured component, so the required VIN data is already embedded. This means the shop can skip the on‑site coding and move directly to the relearn process. a VIN-programmed replacement unit eliminates the typical programming time and reduces the chance of coding errors.
Symptoms of a Failing PCM
When the PCM or ECM fails in a 2012 Ford Fusion, you may notice the engine will not crank, stall shortly after starting, or run rough with misfire‑like behavior. Diagnostic scans often reveal processor‑related codes such as processor communication fault or loss of communication with the transmission control module. These symptoms reflect the loss of critical control signals that the computer normally provides.
Module Trouble Codes on the 2012 Ford Fusion
The following internal trouble codes are documented for the 2012 Ford Fusion when the PCM or ECM experiences a fault:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P1657 | Module-internal fault | — |
| U0100 | Module-internal fault | Full U0100 guide → |
Factory Service Bulletins Worth Knowing
Technical Service Bulletin 12-02-18 notes a unique transmission control module issue for vehicles built between August 22, 2011 and December 5, 2011, specifically affecting the AWF21 AISIN six‑speed transmission. The bulletin provides guidance for addressing the TCM portion of the powertrain system.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 12-02-18 | AWF21 AISIN 6 SPEED TRANSMISSION BUILT ON OR BETWEEN 8/22/2011 AND 12/05/2011 – SERVICE INFORMA | — |
Protecting the PCM in Your 2012 Ford Fusion
- Maintain a healthy charging system to avoid voltage drops that can stress the modules.
- Ensure all ground straps and connector pins are clean and securely fastened.
- Avoid jump‑starting or using high‑current accessories that could introduce voltage spikes.
- Address any diagnostic codes promptly before they trigger module failure.
- Inspect connector seals regularly to keep moisture out of the electronic housing.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2012 Ford Fusion?
Technicians usually spend about one hour to remove and install the PCM on a gasoline‑engine Fusion, according to manufacturer book times.
Do I need a special tool to program a new ECM in my 2012 Fusion?
Factory procedures require a reprogramming step, but a Flagship One unit arrives pre‑programmed, so no additional programming tool is needed on site.
Can a bad PCM cause transmission shift problems in the 2012 Fusion?
Yes, because the PCM also controls shift timing, a failure can lead to harsh or delayed shifts, especially if related TCM codes appear.
When your 2012 Ford Fusion needs a new PCM or ECM, you can choose a brand‑new factory unit or a refurbished replacement that meets the same specifications. Both options restore the vehicle’s control functions, but a Flagship One refurbished module arrives VIN‑programmed, cutting out the coding step and saving shop time. Consider the overall cost, warranty coverage, and the convenience of a pre‑programmed unit when deciding which path to take.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Ford Fusion with a lifetime warranty, free shipping and no core charge. The full Ford Fusion module lineup covers other engine configurations as well.
Final Thoughts
A failing PCM or ECM can leave a 2012 Ford Fusion without power or cause erratic operation. Replacing the module restores normal performance, and using a pre‑programmed Flagship One unit simplifies the process. Contact a qualified technician to evaluate your vehicle and discuss the best replacement option.
