2009 Ford Fusion 3.0L: When the Engine Computer Needs Replacement or Relearn
The Powertrain Control Module (PCM) in your 2009 Ford Fusion manages engine and transmission functions. Failures may cause poor performance, diagnostic trouble codes, or a vehicle that won’t start. Replacement or relearn procedures are often needed to restore proper operation.
Quick Summary
- The PCM controls critical engine and transmission functions in the 2009 Ford Fusion 3.0L.
- Replacement labor typically takes 0.8 hours, while a relearn procedure may require 0.5 hours.
- Common symptoms include stalling, no-start conditions, or warning lights on the dashboard.
- After replacement, the Passive Anti-Theft System (PATS) must be reprogrammed.
- Flagship One units arrive pre-programmed to your VIN, eliminating additional steps.
If your 2009 Ford Fusion 3.0L is experiencing erratic behavior—like stalling, failing to start, or throwing warning lights—the Powertrain Control Module (PCM) may be at fault. This small but critical computer oversees everything from fuel delivery to transmission shifting. When it malfunctions, diagnosing the issue can feel overwhelming, but understanding the role of the PCM, the symptoms of failure, and the steps involved in replacement can help you make informed decisions. Whether you’re dealing with a sudden no-start condition or persistent trouble codes, knowing what to expect can save time and frustration during repairs.
What the PCM Does in a 2009 Ford Fusion
The Powertrain Control Module (PCM) in your 2009 Ford Fusion acts as the brain of the engine and transmission. It processes data from sensors to optimize fuel injection, ignition timing, and shifting patterns, ensuring smooth operation and emissions compliance. A failing PCM may disrupt these functions, leading to poor performance or even a vehicle that won’t run. If replacement becomes necessary, replacement engine computers for the Fusion are designed to restore factory-level functionality. Without a properly functioning PCM, your Fusion may struggle with drivability issues or fail to meet emissions standards.
Where the PCM Is Located and What Replacement Involves
In the 2009 Ford Fusion, the PCM is located in the engine bay, typically mounted near the firewall or on the driver’s side fender well. Accessing it involves removing a protective cover and disconnecting the wiring harness. Replacement labor is straightforward but requires care to avoid damaging connectors. The factory book time for removing and reinstalling the PCM is 0.8 hours. If the module is being replaced, the Passive Anti-Theft System (PATS) must also be addressed to ensure the vehicle starts and runs correctly. No specialized tools are required beyond basic hand tools, but proper torque specifications should be followed if provided.

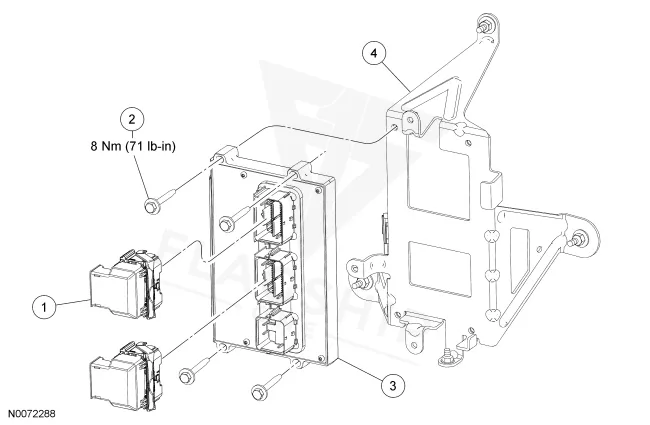

How to Reach the PCM on the 2009 Ford Fusion
- Remove the battery tray.
- Disconnect the 2 PCM electrical connectors.
- Remove the 4 bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.8 hr |
| Powertrain Control Module R&R | All configurations | 0.8 hr |
Programming Requirements After Replacement
After installing a new PCM in your 2009 Ford Fusion, the factory procedure requires reprogramming the Passive Anti-Theft System (PATS) to synchronize the module with your vehicle’s security system. This step is critical for the engine to start and run properly. However, a VIN-programmed replacement unit from Flagship One arrives pre-configured, eliminating the need for additional programming. This saves time and ensures compatibility with your Fusion’s existing systems, allowing for a smoother installation process.
Symptoms of a Failing PCM
A failing PCM in your 2009 Ford Fusion may cause a range of symptoms, from subtle drivability issues to complete failure to start. Common signs include stalling at idle, rough acceleration, or the check engine light illuminating with module-specific codes. You might also experience transmission shifting problems or a lack of response when turning the key. If the PCM loses communication with other systems, you may see codes like internal control module memory checksum error, indicating a fault within the module itself. Ignoring these symptoms can lead to further complications, so prompt diagnosis is recommended.
Module Trouble Codes on the 2009 Ford Fusion
The 2009 Ford Fusion 3.0L may log specific trouble codes when the PCM malfunctions. These codes help pinpoint issues within the module or its communication with other systems. Below are the documented module-internal trouble codes for this vehicle.
Factory Service Bulletins Worth Knowing
Ford service bulletin #09-20-11 addresses an issue where the Malfunction Indicator Lamp (MIL) illuminates with diagnostic trouble code P0456. This bulletin provides guidance for diagnosing and repairing the condition, which may involve inspecting the evaporative emissions system. While not directly related to the PCM, addressing such codes promptly can prevent additional strain on the module and ensure proper vehicle operation.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-20-11 | MALFUNCTION INDICATOR LAMP (MIL) ON WITH DIAGNOSTIC TROUBLE CODE (DTC) – P0456 | — |
Protecting the PCM in Your 2009 Ford Fusion
- Keep your vehicle’s charging system in good condition to avoid voltage spikes that may damage the PCM.
- Ensure all electrical connectors and grounds are clean and securely fastened to prevent communication errors.
- Avoid jump-starting the vehicle with improper voltage, as this can stress or damage the module.
- Address any diagnostic trouble codes promptly to prevent cascading issues with other systems.
- Inspect the PCM connector seals regularly to prevent moisture intrusion, which can cause corrosion.
- Use a quality battery maintainer if the vehicle is stored for extended periods to avoid low-voltage conditions.
Frequently Asked Questions
Why does my 2009 Ford Fusion need a PCM relearn after battery replacement?
The PCM in your Fusion may lose its adaptive memory when the battery is disconnected. A relearn procedure helps the module re-establish baseline settings for fuel delivery, ignition timing, and transmission shifting. This typically takes about 0.5 hours and ensures smooth operation after the battery is reconnected.
Can I drive my 2009 Ford Fusion with a P0603 code stored in the PCM?
While the vehicle may still run, a P0603 code indicates an internal control module keep-alive memory error. This can lead to drivability issues or even a no-start condition. It’s best to diagnose and address the issue promptly to avoid further complications.
What’s the difference between replacing the PCM and reprogramming it in my 2009 Ford Fusion?
Replacing the PCM involves installing a new or remanufactured unit, which requires programming to match your vehicle’s VIN and security system. Reprogramming, or reflashing, updates the software in an existing PCM to address known issues or improve performance. Both procedures may be necessary depending on the diagnosis.
If your 2009 Ford Fusion is experiencing PCM-related issues, you have options. A repair may be possible if the module is still functional, but replacement is often the most reliable solution. A new or remanufactured PCM can restore factory performance, and choosing a pre-programmed unit eliminates the need for additional steps after installation. Consider your vehicle’s needs and the benefits of a hassle-free replacement.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Ford Fusion with a lifetime warranty, free shipping and no core charge. The full Ford Fusion module lineup covers other engine configurations as well.
Final Thoughts
The 2009 Ford Fusion 3.0L relies on its PCM to manage critical engine and transmission functions. If you’re facing symptoms like stalling, no-start conditions, or warning lights, the module may be the culprit. Addressing the issue promptly with a quality replacement can save time and prevent further complications. Whether you opt for a repair or a pre-programmed unit, ensuring your Fusion’s PCM is in good working order is key to reliable performance.
