2012 Chevrolet Cruze PCM/ECM Replacement Guide
The Engine Control Module in a 2012 Chevrolet Cruze monitors fuel delivery, ignition timing, and emissions. When its internal electronics fail, the vehicle may stall, misfire, or fail to start.
Quick Summary
- ECM replacement requires 1.1 hours of labor.
- Engine Control Module is located in the engine compartment.
- Reprogramming must be performed with the correct factory calibration.
- Fault codes P0601 through P1621 may appear when the module is malfunctioning.
- Service bulletin #11231 addresses hesitation under high accessory loads.
If your 2012 Chevrolet Cruze is experiencing hesitation at startup or other performance issues, the Engine Control Module (ECM) could be at fault. Understanding the role of the ECM and the steps required for a successful replacement helps you prepare for service and avoid costly mistakes. This guide outlines where the module sits, how long the job typically takes, and what to expect from the reprogramming process.
What the PCM Does in a 2012 Chevrolet Cruze
In the 2012 Chevrolet Cruze, the Engine Control Module controls fuel injection, ignition timing, and emission controls. It also communicates with the Powertrain Control Module to coordinate powertrain functions. replacement engine computers for the 2012 Chevrolet Cruze The ECM’s firmware dictates how the engine reacts to throttle input and sensor data, so a failure can lead to poor acceleration, stalling, or a check‑engine light.

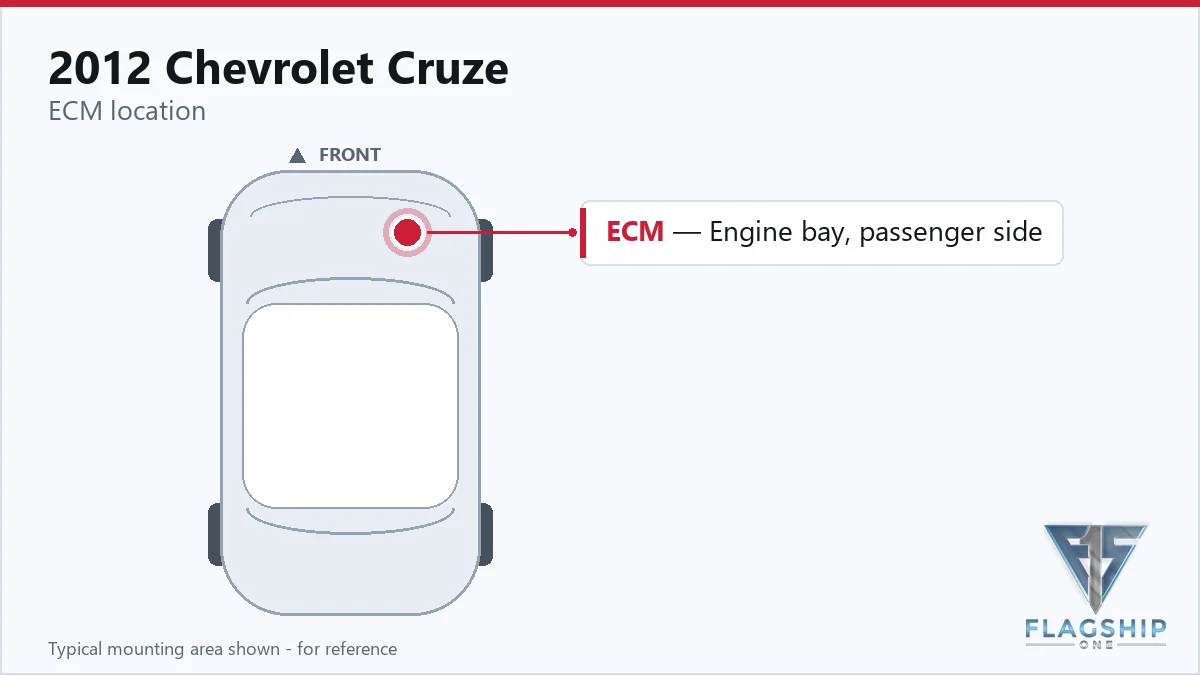

Where the PCM Is Located and What Replacement Involves
The ECM resides in the engine compartment of the 2012 Chevrolet Cruze. Removing it requires disconnecting the battery, locating the module on the engine side of the firewall, and carefully unplugging the electrical connectors. The book time for removal and reinstall is 1.1 hours. No special tools or torque specifications are listed for this job.
How to Reach the PCM on the 2012 Chevrolet Cruze
- Remove any debris from around the control module connector.
- Disconnect battery negative cable.
- Disconnect the 2 wiring harness plug from the engine control module.
- Unclip the engine control module bracket from the battery tray.
- Remove the 4 nuts.
- Remove the engine control module from the engine control module bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the module is replaced, the vehicle’s software must be updated to the current calibration. Flagship One units arrive VIN‑programmed, meaning the factory procedure for post‑installation reprogramming is already completed. a VIN-programmed replacement unit This eliminates the need for a separate coding step.
Symptoms of a Failing PCM
Common signs of a failing ECM in a 2012 Chevrolet Cruze include engine hesitation at startup, rough idling, and a check‑engine light that may trigger codes such as P0601. The vehicle may also stall under load or exhibit erratic throttle response. If the module cannot communicate with the scan tool, a no‑signal error may appear.
Module Trouble Codes on the 2012 Chevrolet Cruze
The 2012 Chevrolet Cruze may generate a list of internal trouble codes if the ECM is malfunctioning. These codes provide clues to the underlying issue and help technicians decide on a repair strategy.
Factory Service Bulletins Worth Knowing
Service bulletin #11231, dated August 26 2011, addresses engine hesitation at startup under high accessory loads for the 2012 Chevrolet Cruze. The bulletin recommends reprogramming the ECM to resolve the issue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Service Update for Inventory and Customer Vehicles-Engine Hesitation at Start Up Under High Acc | — |
Protecting the PCM in Your 2012 Chevrolet Cruze
- Keep the charging system within manufacturer specifications to avoid voltage spikes.
- Inspect and clean all electrical connectors on the ECM for corrosion or loose contacts.
- Avoid using aftermarket add‑on equipment that is not properly wired to the 12 V battery.
- Address any diagnostic trouble codes promptly to prevent further damage.
- Ensure connector seals remain intact to protect against moisture and debris.
Frequently Asked Questions
What does the 2012 Chevrolet Cruze’s Engine Control Module do?
It controls fuel injection timing, ignition spark timing, and emission outputs. The module uses sensor data to adjust engine parameters for optimal performance and compliance with emissions standards.
How long does it normally take to replace the ECM in a 2012 Chevrolet Cruze?
The labor estimate for removal and reinstall of the ECM is 1.1 hours, according to the book time provided.
Do I need to reprogram the ECM after replacement?
Flagship One replacement units are VIN‑programmed, so the factory calibration is already applied and no additional reprogramming step is required.
If you suspect an ECM problem in your 2012 Chevrolet Cruze, you can choose between a full repair or a refurbished replacement. The refurbished option offers the same functionality with reduced cost, while still meeting the vehicle’s performance and reliability needs.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2012 Chevrolet Cruze with a lifetime warranty, free shipping and no core charge. The full Chevrolet Cruze module lineup covers other engine configurations as well.
Final Thoughts
For a 2012 Chevrolet Cruze, a reliable Engine Control Module is essential for smooth operation. Whether you opt for a repair or a refurbished replacement, addressing the ECM promptly helps maintain performance and avoid further complications.
