2009 Cadillac SRX Engine Control Module Replacement & Relearn Guide
The Engine Control Module (ECM) in the 2009 Cadillac SRX processes sensor data and commands actuators to manage combustion, emissions, and fuel delivery. A failure can lead to misfires, idle instability, or complete loss of powertrain control.
Quick Summary
- ECM replacement takes 0.4 hours, relearn 0.5 hours.
- Powertrain Control Module R&R for 3.6L requires 1.0 hour.
- Do not touch connector pins to avoid electrostatic discharge.
- Disconnect front harness before removal, reconnect rear after installation.
When the 2009 Cadillac SRX starts to stall, misfire, or fail to launch, the culprit is often the Engine Control Module. Understanding how the ECM governs engine functions and the steps required to replace it lets you address symptoms confidently. This guide explains the module’s role, safe removal and installation procedures, programming necessities, common failure signs, and preventive maintenance. By the end, you’ll know how to keep your vehicle running smoothly and avoid costly diagnostics.
What the PCM Does in a 2009 Cadillac SRX
The Engine Control Module in the 2009 Cadillac SRX is the central nervous system for engine management, translating sensor inputs into precise fuel, ignition, and valve timing commands. It ensures optimal performance, efficiency, and emissions compliance. When the ECM fails, the vehicle may experience a range of issues from a rough idle to a complete loss of drive. The module also collaborates with the Powertrain Control Module to coordinate transmission shifts and torque delivery. Proper operation of the ECM is vital for safe, reliable performance. replacement engine computers for the 2009 Cadillac SRX is essential when the original unit becomes unresponsive or generates persistent fault codes.
What Replacing the PCM Involves
How to Reach the PCM on the 2009 Cadillac SRX
- Remove any debris from around the control module connector.
- Disconnect the battery negative cable.
- Raise and support the vehicle.
- Remove the front air deflector.
- Disconnect the ECM electrical connectors.
- Remove the ECM mounting nuts.
- Remove the ECM from the vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | All configurations | 0.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | 3.6L | 1.0 hr |
| Powertrain Control Module R&R | 4.6L | 1.2 hr |
Programming Requirements After Replacement
After installing a new ECM, the factory requires a relearn procedure to calibrate idle speed, throttle response, and other parameters. Flagship One units arrive VIN‑programmed, eliminating the need for manual relearn steps. During the shop cycle, the technician will verify that the unit is correctly mapped to the vehicle’s identification and that all calibration data is present. This ensures that the replacement module operates with factory‑level precision from the start. a VIN-programmed replacement unit streamlines the workflow and reduces shop time.
Symptoms of a Failing PCM
When the 2009 Cadillac SRX’s engine control module is compromised, owners may notice a no‑start condition, sudden stalling, or erratic idle. Misfire codes can appear, and the scan tool may lose communication with the ECM. The vehicle might also exhibit delayed or harsh shifting due to lost powertrain coordination. Persistent fault codes such as engine control module error indicate internal ECM problems, often requiring replacement rather than repair.
Module Trouble Codes on the 2009 Cadillac SRX
The following internal trouble codes are specific to the 2009 Cadillac SRX’s Engine Control Module. These codes help technicians pinpoint the exact nature of an ECM fault and guide the appropriate repair action.
Factory Service Bulletins Worth Knowing
The factory service bulletin #PIP4532A, dated October 2, 2009, ended the Parts Restriction for the LY7 Engine Control Module. This bulletin confirms that replacement parts are now available and that the module can be sourced without restriction. No additional service bulletins are listed for this vehicle model.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | PQC – LY7 Engine Control Module (ECM) Parts Restriction Ended – (Oct 2, 2009) | — |
Protecting the PCM in Your 2009 Cadillac SRX
- Keep the charging system clean and maintain proper voltage levels.
- Inspect and clean all grounding straps and connector contacts regularly.
- Avoid jump‑starting the vehicle with a high‑current source that can spike voltage.
- Respond promptly to any fault codes before they evolve into major failures.
- Ensure all connector seals remain intact to prevent moisture ingress.
- Verify that all wiring harnesses are fully seated and locked during installation.
Frequently Asked Questions
How long does it take to replace the ECM on a 2009 Cadillac SRX?
The shop time for removal is 0.4 hours, and the relearn step adds 0.5 hours. If the Powertrain Control Module also needs replacement, that adds an additional 1.0 hour.
Will I need to relearn the engine after installing a new ECM?
The factory procedure requires a relearn, but Flagship One units are pre‑programmed with the vehicle’s VIN, so the relearn step is typically unnecessary.
What symptoms indicate an ECM failure?
Common signs include no‑start, stalling, misfire codes, and loss of communication with the scan tool. Persistent codes such as P0601 often point to an internal ECM fault.
Can I install the ECM myself?
While the procedure is straightforward, the removal of the front harness and proper seating of the module require careful handling to avoid damage to the wiring and connector pins.
Is there a warranty on the replacement ECM?
Warranty terms vary by supplier. Flagship One provides a limited warranty that covers defects in materials and workmanship for a specified period.
When your 2009 Cadillac SRX shows signs of ECM trouble, you can choose a full repair or opt for a refurbished replacement. Both options restore reliable engine operation. The refurbished module comes with the same VIN‑programming and quality assurance, providing a cost‑effective solution without compromising performance.

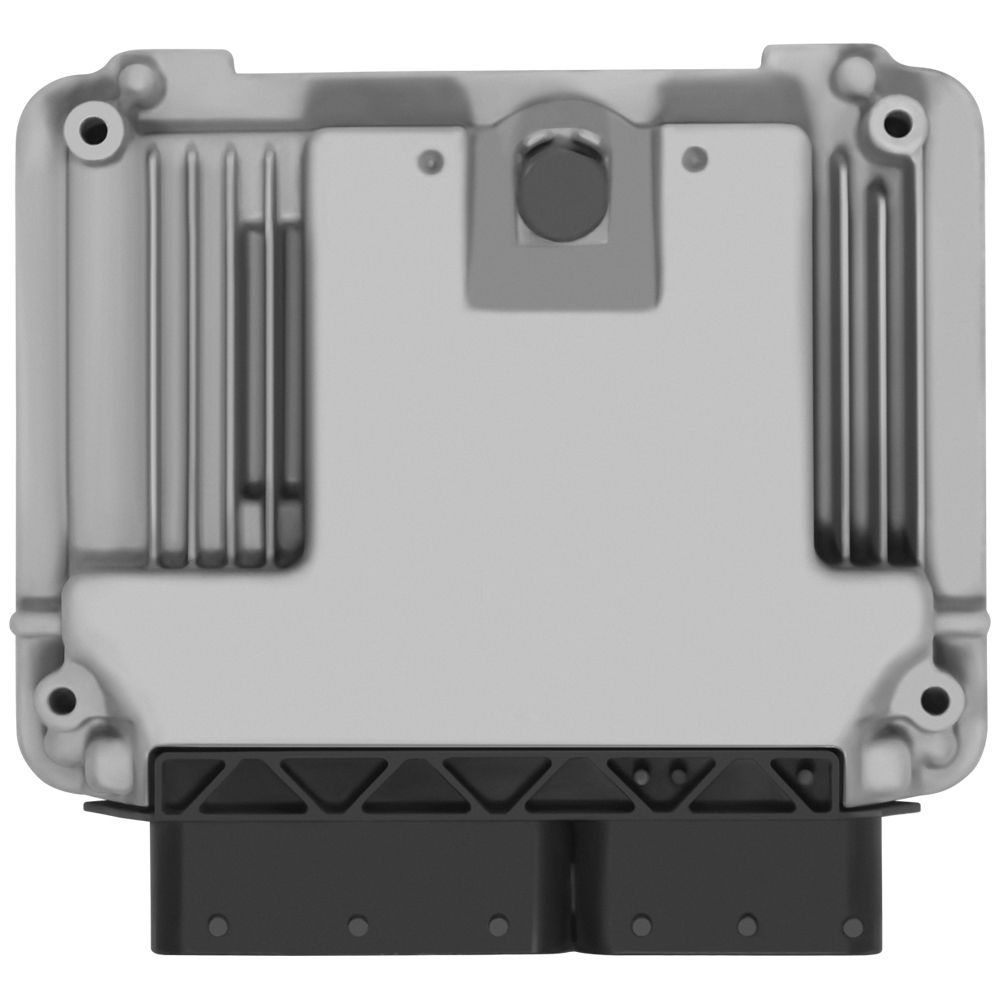

Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Cadillac SRX with a lifetime warranty, free shipping and no core charge. The full Cadillac SRX module lineup covers other engine configurations as well.
Final Thoughts
Addressing Engine Control Module issues on the 2009 Cadillac SRX promptly keeps the vehicle safe and reliable. Whether you select a repair or a refurbished replacement, the right approach restores smooth powertrain control and protects your investment.
