2011 Mitsubishi Endeavor PCM and ECM Replacement Guide

If your 2011 Mitsubishi Endeavor with the 3.8L engine is experiencing intermittent stalling, a no-start condition, or a check engine light that won’t clear, the Powertrain Control Module (PCM) may be the culprit. The PCM is the central computer that manages engine timing, fuel delivery, and transmission operation. When it begins to fail, the vehicle can become unreliable and difficult to diagnose. This guide covers what the PCM does in your Endeavor, common failure symptoms, the replacement procedure with factory labor times, and a critical caution about replacing the PCM and the ETACS-ECU simultaneously. You will also learn about the required encrypted code registration and how a VIN-programmed replacement unit from Flagship One can simplify the repair. Understanding these details helps you make an informed decision about repairing or replacing the module, saving time and avoiding potential electrical conflicts.

What the PCM Does in a 2011 Mitsubishi Endeavor

The Powertrain Control Module (PCM) in your 2011 Mitsubishi Endeavor 3.8L is the primary engine management computer. It receives input from sensors such as the crankshaft position sensor, throttle position sensor, and oxygen sensors, then adjusts fuel injector pulse width, ignition timing, and transmission shift solenoids to maintain optimal performance and emissions. The PCM also communicates with other modules on the vehicle’s network, including the ETACS-ECU (Electronic Time and Alarm Control System). A failure of the PCM can cause a wide range of drivability issues because it is the brain of the powertrain. When shopping for replacement engine computers for the Endeavor, it is important to choose a unit that matches your vehicle’s specific calibration. The PCM is not a generic part; it must be programmed with the correct VIN and immobilizer data to function properly. In the Endeavor, the PCM is located in the engine compartment and is relatively accessible, but the replacement process includes a mandatory relearn procedure and encrypted code registration if the ETACS-ECU is also being replaced.

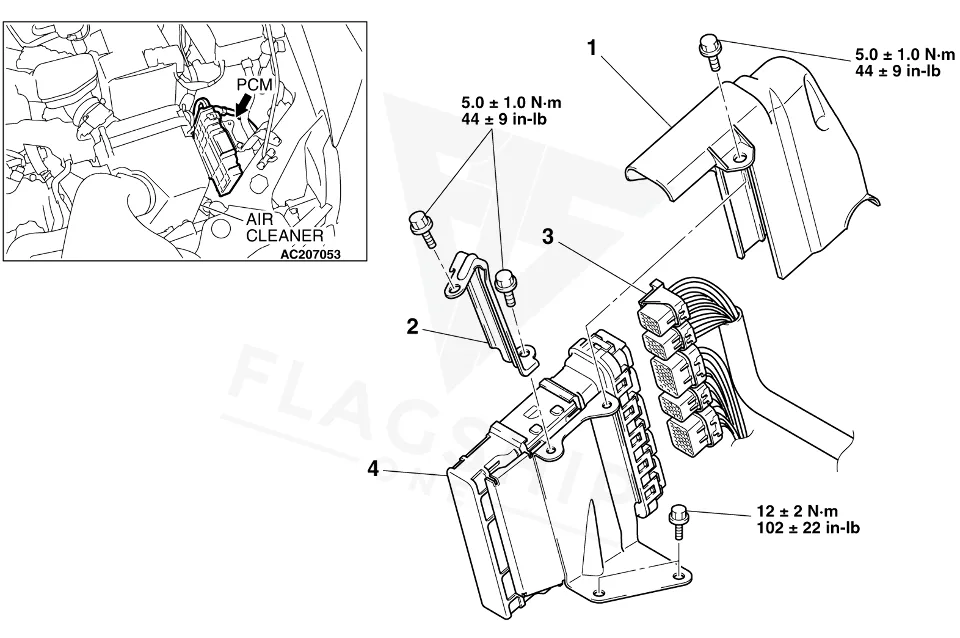

Where the PCM Is Located and What Replacement Involves

The PCM in the 2011 Mitsubishi Endeavor is mounted in the engine compartment, typically near the battery or the air intake box. Replacement is straightforward and carries a factory book time of 0.5 hours for the module itself. An additional 0.5 hours is allocated for the Engine Control Module Relearn procedure, which must be performed after installation. A critical factory caution applies: do not replace the PCM and the ETACS-ECU at the same time. Instead, replace one of the ECUs first, then register the encrypted code as outlined in GROUP 54A of the service manual (Ignition Switch – Encrypted Code Registration Criteria Table). Attempting to replace both simultaneously can cause communication errors or immobilizer lockouts. The labor times assume standard access; no special tools are required beyond basic hand tools and a scan tool capable of performing the relearn.

Programming Requirements After Replacement

After installing a new or replacement PCM in your 2011 Mitsubishi Endeavor, the factory procedure requires a 0.5-hour Engine Control Module Relearn. This process typically involves using a scan tool to reset adaptive values and synchronize the module with the vehicle’s immobilizer system. Additionally, if the ETACS-ECU was replaced previously, the encrypted code must be registered according to the factory service manual. These steps are critical for the vehicle to start and run correctly. However, when you purchase a VIN-programmed replacement unit from Flagship One, the PCM arrives pre-configured with your vehicle’s VIN and immobilizer data. This means the relearn and code registration steps are already completed, so you can install the module and start the engine without needing a dealer-level scan tool. The only remaining step is to verify proper operation and clear any stored codes.

Symptoms of a Failing PCM

A failing PCM in the 2011 Mitsubishi Endeavor 3.8L can produce several noticeable symptoms. The engine may crank but not start, or it may start and stall shortly after. You might experience erratic shifting, hesitation during acceleration, or a sudden loss of power. The check engine light will likely illuminate, and a scan tool may retrieve code internal PCM fault P0606 which indicates an internal control module error. Other possible symptoms include the vehicle going into limp mode, where transmission is locked in a single gear, or the cooling fan running continuously. Communication with a scan tool may be intermittent or completely lost, making diagnosis difficult. If you notice any of these issues, especially in combination, the PCM should be inspected and tested before replacing other components.

Module Trouble Codes on the 2011 Mitsubishi Endeavor

The following trouble code is documented as module-internal for the 2011 Mitsubishi Endeavor 3.8L. This code originates from within the PCM itself and indicates a hardware or software fault that cannot be caused by external sensors or wiring.

Protecting the PCM in Your 2011 Mitsubishi Endeavor

• Maintain a healthy charging system; voltage spikes from a failing alternator can damage the PCM’s internal circuitry.
• Keep all engine and chassis ground connections clean and tight to ensure stable voltage reference for the module.
• Avoid jump-starting the vehicle with a running donor vehicle; use a quality battery charger or follow the manual’s jump-start procedure to prevent voltage surges.
• Address any check engine light or drivability code promptly; ignoring a minor fault can lead to PCM damage over time.
• Inspect the PCM connector and wiring harness for corrosion, bent pins, or chafed wires, especially if the vehicle has been in a flood or exposed to moisture.
• When performing electrical work on the vehicle, disconnect the battery negative terminal to prevent accidental shorts or backfeeding voltage into the PCM.

Frequently Asked Questions

Can I replace the PCM in my 2011 Mitsubishi Endeavor myself with the 0.5-hour book time?

Yes, the PCM is accessible in the engine compartment and the replacement is straightforward. However, you will need a scan tool to perform the 0.5-hour Engine Control Module Relearn after installation. If you purchase a VIN-programmed unit from Flagship One, the relearn is already done, so you can install and drive immediately.

What happens if I replace the PCM and ETACS-ECU at the same time on my 2011 Endeavor?

The factory explicitly warns against replacing both modules simultaneously. Doing so can cause the immobilizer system to lose synchronization, preventing the engine from starting. You must replace one ECU first, then register the encrypted code as per the service manual before replacing the other.

Is code P0606 in my 2011 Mitsubishi Endeavor always a PCM failure?

Code P0606 indicates an internal PCM fault, which is almost always a hardware issue. It is not caused by a bad sensor or wiring problem. In most cases, the PCM must be replaced. However, check for any aftermarket modifications or recent electrical work that could have damaged the module.

How long does the encrypted code registration take on a 2011 Endeavor?

The registration process is part of the service procedure and is not assigned a separate labor time in the book. The 0.5-hour ECM Relearn time covers the post-installation steps. If you are also replacing the ETACS-ECU, the encrypted code registration must be done using a scan tool that supports Mitsubishi’s immobilizer system.

Will a used PCM from a salvage yard work in my 2011 Mitsubishi Endeavor?

A used PCM will need to be reprogrammed with your vehicle’s VIN and immobilizer data. Without proper programming, the engine may not start or may run poorly. Flagship One offers VIN-programmed units that are ready to install, eliminating the need for additional programming steps.

When your 2011 Mitsubishi Endeavor’s PCM fails, you have two main options: have a shop repair the original module (if repairable) or replace it with a new or refurbished unit. Given the 0.5-hour labor for replacement and the 0.5-hour relearn, a direct replacement is often more reliable. Flagship One provides VIN-programmed PCMs for the Endeavor that arrive ready to install, saving you the cost and hassle of dealer programming. Consider the factory caution about the ETACS-ECU when planning your repair.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Mitsubishi Endeavor with a lifetime warranty, free shipping and no core charge. The full Mitsubishi Endeavor module lineup covers other engine configurations as well.

Final Thoughts

The PCM in your 2011 Mitsubishi Endeavor 3.8L is a critical component that controls engine and transmission operation. Recognizing symptoms like no-start, stalling, or code P0606 early can prevent further issues. Replacement is straightforward with a 0.5-hour book time, but the factory relearn and encrypted code registration must be followed. A VIN-programmed unit from Flagship One simplifies the process, letting you get back on the road quickly.
