2011 Mazda Tribute Hybrid PCM and ECM Replacement Guide
The powertrain control module (PCM) in the 2011 Mazda Tribute Hybrid manages engine and hybrid system functions. When it fails, the vehicle may exhibit drivability issues, warning lights, and communication faults.
Quick Summary
- PCM/ECM replacement labor is 0.5 hours for removal and installation, plus 0.5 hours for a relearn procedure.
- Factory service bulletins address MIL illumination with codes P144A, P2196, P2198, P1A0C, and others for 2009-2011 models.
- After replacement, the passive anti-theft system (PATS) must be reprogrammed to enable starting.
- Module-internal trouble codes include P0600, P0602, P0603, P0604, P0605, P0606, P0607, P060A, P060B, P060C, P060D, P0610, P061B, P061C, P061D, P061F, P0620, P0625, P0626, P0627, P0642, P0643, P0645, P0657, P065B.
If your 2011 Mazda Tribute Hybrid is showing a check engine light or experiencing drivability problems, the powertrain control module (PCM) or engine control module (ECM) may be at fault. This guide explains what the module does, common failure symptoms, and what to expect during replacement. You will learn about the labor times involved, the required programming steps, and how a pre-programmed unit can simplify the repair. The information here is based on factory service bulletins and documented trouble codes for this specific vehicle.
What the PCM Does in a 2011 Mazda Tribute Hybrid
The PCM in the 2011 Mazda Tribute Hybrid is the central computer that controls engine operation, transmission shifts, and hybrid system coordination. It processes sensor inputs and adjusts fuel delivery, ignition timing, and emissions controls. When the module fails, the vehicle may not start, run poorly, or illuminate the malfunction indicator lamp (MIL). For this vehicle, documented internal faults include codes like P0600, P0602, and P0606, which indicate serial communication or internal processor errors. A replacement replacement PCM for the Tribute must be programmed with the vehicle’s specific calibration and anti-theft data to function correctly.
Where the PCM Is Located and What Replacement Involves
The PCM in the 2011 Mazda Tribute Hybrid is typically located in the engine compartment, mounted near the firewall or on the inner fender. Replacement involves disconnecting the battery, removing any covers or brackets, unplugging the electrical connectors, and unbolting the module. The factory book time for removal and installation is 0.5 hours. After installing the new module, an additional 0.5 hours is required for the engine control module relearn procedure, which resets adaptive values and allows the system to re-learn idle and fuel trim settings.

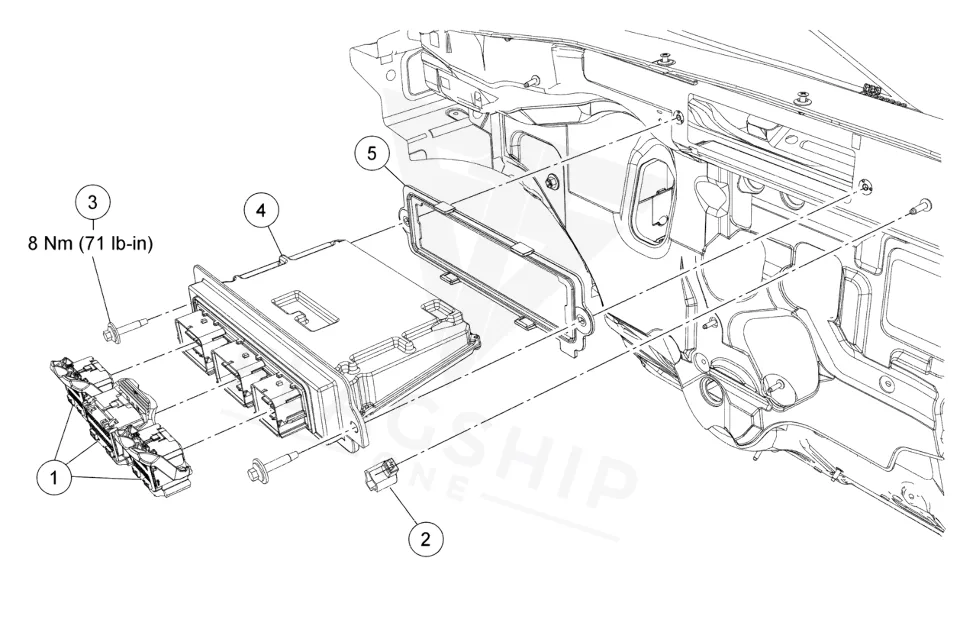

How to Reach the PCM on the 2011 Mazda Tribute Hybrid
- Detach the wiring harness retainer from the cowl stud bolt.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 bolts and the PCM.
- Remove and inspect the PCM cowl seal.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM, the factory procedure requires reprogramming the passive anti-theft system (PATS) to synchronize the module with the vehicle’s keys. This step is essential for the engine to start. Without it, the immobilizer will prevent operation. Flagship One supplies a VIN-programmed replacement unit that arrives with the correct calibration and PATS data already loaded. This means the post-install programming step is already completed, so you can install the module and start the vehicle without needing a dealer scan tool.
Symptoms of a Failing PCM
A failing PCM in the 2011 Mazda Tribute Hybrid can cause a variety of symptoms. The engine may crank but not start, or it may stall unexpectedly while driving. You might notice rough idle, poor acceleration, or transmission shifting problems. The check engine light often illuminates with codes related to misfire, fuel trim, or sensor circuits. Communication with a scan tool may be lost entirely. One common internal fault is serial communication link failure P0600, which indicates the module cannot properly communicate with other controllers on the vehicle network.
Module Trouble Codes on the 2011 Mazda Tribute Hybrid
The following trouble codes are documented for internal PCM/ECM failures in the 2011 Mazda Tribute Hybrid. These codes indicate issues within the module itself rather than external sensors or circuits.
| Code | Meaning | Full Guide |
|---|---|---|
| P0600 | Module-internal fault | Full P0600 guide → |
| P0602 | Control module programming error | Full P0602 guide → |
| P0603 | Keep-alive memory (KAM) error | Full P0603 guide → |
| P0604 | Internal RAM error | Full P0604 guide → |
| P0605 | Internal ROM error | Full P0605 guide → |
| P0606 | Module processor failure | Full P0606 guide → |
| P0607 | Module performance fault | Full P0607 guide → |
| P060A | Module-internal fault | — |
| P060B | Module-internal fault | — |
| P060C | Module-internal fault | — |
| P060D | Module-internal fault | — |
| P0610 | Module-internal fault | Full P0610 guide → |
Factory Service Bulletins Worth Knowing
Two factory service bulletins apply to the 2011 Mazda Tribute Hybrid. Bulletin 01 015/12 covers 2009-2011 Tribute and Tribute Hybrid models with MIL illumination and diagnostic trouble codes P144A, P2196, P2198, and/or P1A0C. Bulletin 01 025/11 applies to 2010-2011 Tribute models with MIL on and codes P1285, P1299, P0128, P0300, P0301, P0302, P0303, P0304, P0316. These bulletins provide diagnostic and repair procedures for the conditions described.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 01 015/12 2009 2011 Tribute / Tribute Hybrid MIL On With Dt Cs P144 A, P2196, P2198, And/Or P1 | — |
| — | 01 025/11 2010 2011 Tribute MIL On With Dt Cs P1285, P1299, P0128, P0300, P0301, P0302, P0303, | — |
Protecting the PCM in Your 2011 Mazda Tribute Hybrid
- Maintain the charging system in good condition; voltage spikes from a failing alternator can damage the PCM.
- Keep battery and engine ground connections clean and tight to ensure stable voltage to the module.
- Avoid jump-starting the vehicle with a running donor vehicle; connect cables only with both engines off.
- Address any check engine light or drivability codes promptly before they cause secondary damage to the PCM.
- Inspect the PCM connector seals and housing for moisture intrusion, which can corrode internal circuits.
Frequently Asked Questions
What is the labor time to replace the PCM on a 2011 Mazda Tribute Hybrid?
The factory book time for removing and installing the PCM is 0.5 hours. An additional 0.5 hours is required for the engine control module relearn procedure after installation.
Do I need to reprogram the anti-theft system after replacing the PCM on my 2011 Tribute Hybrid?
Yes, the factory procedure requires reprogramming the passive anti-theft system (PATS) after PCM replacement. Without this step, the immobilizer will prevent the engine from starting.
What trouble codes indicate a failed PCM on a 2011 Mazda Tribute Hybrid?
Module-internal codes such as P0600, P0602, P0603, P0604, P0605, P0606, P0607, P060A, P060B, P060C, P060D, P0610, P061B, P061C, P061D, P061F, P0620, P0625, P0626, P0627, P0642, P0643, P0645, P0657, and P065B are documented for internal PCM failures.
When your 2011 Mazda Tribute Hybrid needs a new PCM, you have options. A dealer repair involves the module, labor, and programming fees. A refurbished replacement from Flagship One arrives pre-programmed with your VIN, eliminating the PATS reprogramming step and reducing downtime. Consider the total cost and convenience when choosing your repair path.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Mazda Tribute Hybrid with a lifetime warranty, free shipping and no core charge. The full Mazda Tribute Hybrid module lineup covers other engine configurations as well.
Final Thoughts
The 2011 Mazda Tribute Hybrid relies on its PCM for engine and hybrid system control. Recognizing symptoms like no-start or MIL codes can lead to a faster repair. With pre-programmed replacement units, the process is straightforward. Trust a quality module to restore your vehicle’s performance.
