2009 Mazda Tribute Engine Computer PCM ECM Replacement Guide

If your 2009 Mazda Tribute Hybrid is displaying warning lights, running poorly, or refusing to start, the Engine Control Module or Powertrain Control Module may be the culprit. These vehicle computers manage critical functions including fuel delivery, ignition timing, transmission shift points, and the anti-theft system. When the module fails or develops internal faults, symptoms can range from intermittent stalling to complete no-start conditions. This guide explains what these modules do in your specific vehicle, where they are located, the labor involved in replacement, and what programming is required to get your Tribute back on the road. Whether you are diagnosing a check engine light or planning a repair, you will find the technical details needed to make informed decisions.

What the PCM Does in a 2009 Mazda Tribute Hybrid

The Powertrain Control Module in your 2009 Mazda Tribute Hybrid serves as the primary vehicle computer, governing engine operation, transmission behavior, emissions systems, and the passive anti-theft system. Unlike older vehicles that used separate engine and transmission computers, this model integrates both functions into a single unit mounted in the engine compartment. The module receives input from dozens of sensors throughout the vehicle and adjusts fuel delivery, ignition advance, and shift firmness in real time to optimize performance and fuel economy. When the internal processor or memory circuitry fails, the module may store fault codes, enter reduced-power mode, or fail entirely. Replacing the unit requires addressing both the mechanical installation and the security programming that ties the computer to your specific vehicle. For owners of this model, replacement engine computers for the Tribute are available as new or refurbished units programmed with your vehicle is identification.

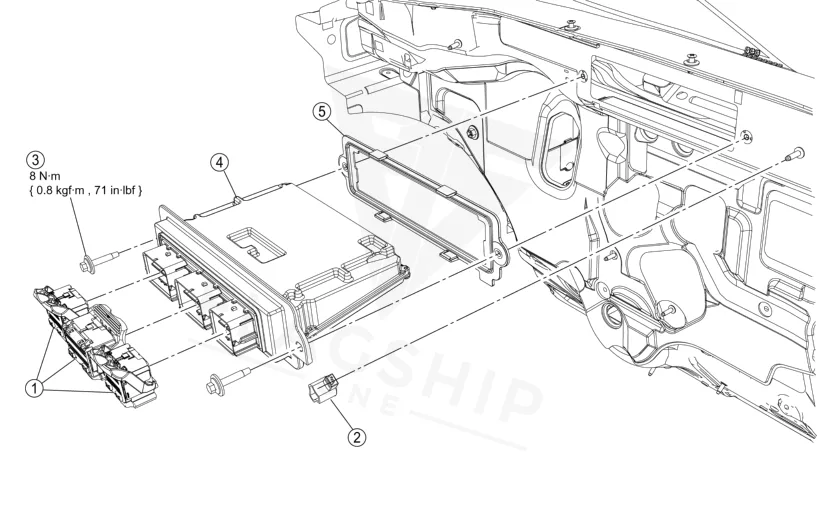

Where the PCM Is Located and What Replacement Involves

The PCM on your 2009 Mazda Tribute Hybrid is located in the engine compartment, typically mounted to the firewall or inner fender panel. Access requires removing protective covers and disconnecting the battery negative terminal first. The replacement procedure follows a straightforward remove-and-replace pattern: disconnect electrical connectors, remove mounting bolts, install the new module, and secure with factory torque specifications. Book time for Powertrain Control Module R&R is 0.5 hours, and Engine Control Module R&R is also 0.5 hours, meaning the actual labor at a shop will depend on the exact location and any additional diagnostics performed. After installation, an Engine Control Module Relearn procedure taking 0.5 hours is required to allow the new module to adapt to your vehicle is unique engine characteristics.

Programming Requirements After Replacement

After installing a replacement module in your 2009 Mazda Tribute Hybrid, the factory procedure requires reprogramming the passive anti-theft system (PATS) to establish communication between the new computer and your vehicle is security system. This step is essential because the anti-theft system will otherwise prevent the engine from starting. The PATS reprogramming must be performed using dealer-level diagnostic equipment or an equivalent tool capable of security access. Flagship One units arrive VIN-programmed, meaning the replacement computer is pre-loaded with your specific vehicle identification so those programming steps are already complete at installation. This eliminates the need for additional security programming at the shop and reduces overall repair time.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the ECM or PCM fails on your 2009 Mazda Tribute Hybrid, several telltale signs typically emerge. A no-start condition is common, where the engine cranks but will not fire due to anti-theft system lockout or complete module failure. Stalling and rough idle often accompany internal module faults, as the computer loses ability to regulate fuel and ignition properly. Misfire codes such as P0300 through P0304 may appear alongside module-internal codes. In some cases, the scan tool cannot communicate with the module at all, indicating a failed computer. Transmission shifting may become erratic or harsh, particularly when the integrated PCM loses ability to control shift solenoids. If you encounter internal memory check sum error stored in the module, it indicates corruption of the internal non-volatile memory that stores critical calibration data.

Module Trouble Codes on the 2009 Mazda Tribute Hybrid

The 2009 Mazda Tribute Hybrid is prone to developing module-internal trouble codes that indicate specific failures within the ECM or PCM circuitry. These codes, ranging from P0602 through P0685, represent faults in the processor, memory, analog-to-digital converters, and reference voltage circuits inside the computer itself rather than in external sensors or actuators.

Factory Service Bulletins Worth Knowing

Factory service bulletin 05 005/09 addresses MIL illumination concerns on the 2009 Tribute, covering diagnostic trouble codes P0770, P0772, P0773, and P0774. These codes relate to erratic shift behavior and harsh engagements that may stem from transmission control module issues or from the integrated PCM losing ability to properly control shift solenoids. The bulletin outlines diagnostic procedures to verify whether the fault lies in the transmission system or in the powertrain control module itself. Technicians are directed to check for proper module operation before replacing transmission components.

Protecting the PCM in Your 2009 Mazda Tribute Hybrid

• Maintain healthy charging system voltage by testing battery and alternator output regularly
• Ensure all ground connections and module connectors are clean and tight
• Avoid jump-starting other vehicles to prevent voltage spikes that can damage module circuitry
• Address check engine light codes promptly before they cascade into module damage
• Inspect and replace damaged connector seals to prevent water intrusion into the module housing
• Use quality fuel and avoid running the tank extremely low to reduce risk of fuel system anomalies affecting the computer

Frequently Asked Questions

Will a used PCM from a salvage yard work in my 2009 Mazda Tribute Hybrid?

A used PCM requires programming to match your vehicle is VIN and security system. Without proper PATS reprogramming, the anti-theft system will prevent the engine from starting. This programming typically requires dealer-level equipment and adds cost to the repair.

Can I drive my Tribute with a failing PCM?

Driving with a compromised module is not recommended. Depending on the failure mode, your vehicle may stall unexpectedly, run poorly, or fail to start entirely. In some cases, the module may fail completely while driving, leaving you stranded.

How do I know if my Tribute needs an ECM or a PCM?

This vehicle uses an integrated module that handles both engine and transmission functions, so the terms are often used interchangeably. A scan tool can confirm which specific module is storing fault codes and whether communication is active.

When your 2009 Mazda Tribute Hybrid requires a new computer, you have two primary paths: a new or refurbished replacement from an supplier like Flagship One, or a used unit from a salvage yard. New and refurbished units typically arrive VIN-programmed and ready to install, eliminating complex programming steps. Used units are less expensive upfront but require additional programming costs and carry unknown remaining service life. Consider your budget, timeline, and long-term reliability goals when choosing.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Mazda Tribute Hybrid with a lifetime warranty, free shipping and no core charge. The full Mazda Tribute Hybrid module lineup covers other engine configurations as well.

Final Thoughts

The Engine Control Module in your 2009 Mazda Tribute Hybrid is a critical component that governs nearly every aspect of vehicle operation. Whether you are dealing with a no-start condition, transmission shifting issues, or module-internal fault codes, understanding the module is role helps you make informed repair decisions. For a solution that minimizes troubleshooting time and programming complexity, consider a VIN-programmed replacement unit designed specifically for your Tribute.
