2011 Cadillac DTS Powertrain and Engine Control Module Replacement
The Powertrain Control Module (PCM) and Engine Control Module (ECM) in the 2011 Cadillac DTS manage engine timing, fuel injection, and transmission shifts. When these computers fail, the vehicle may misfire, stall, or refuse to start.
Quick Summary
- Powertrain and Engine Control Modules are critical for engine and transmission management.
- Replacement labor requires about 1.4 hours per unit.
- ECM data must be captured before removal to avoid loss of settings.
- Flagship One units come pre‑programmed, eliminating post‑install calibration.
- Caution: connect any aftermarket electronics to the 12 V battery to protect the vehicle.
When a 2011 Cadillac DTS experiences starting problems, stalling, or irregular shifting, the cause often lies in the Powertrain Control Module or the Engine Control Module. These computers translate sensor data into precise commands for the engine and transmission. Replacing them can bring your vehicle back to its expected performance. This guide explains where the modules are located, how long the work takes, what programming steps are required, and what symptoms indicate a failure. By understanding the role of these modules, you can make an informed decision about repair or replacement and ensure that any new unit is ready for use right out of the box.
What the PCM Does in a 2011 Cadillac DTS
The Powertrain Control Module in the 2011 Cadillac DTS oversees the overall coordination between the engine, transmission, and various actuators, while the Engine Control Module focuses on fuel injection timing, spark delivery, and engine diagnostics. These modules communicate over the vehicle’s CAN bus, receiving inputs from sensors such as throttle position, crankshaft speed, and coolant temperature. They output commands that adjust valve timing, fuel mass, and ignition timing to maintain optimal performance. Powertrain Control Module 2011 Cadillac DTS malfunction can result in poor fuel economy, rough idling, or failure to start, because the computer can no longer calculate the correct engine parameters.

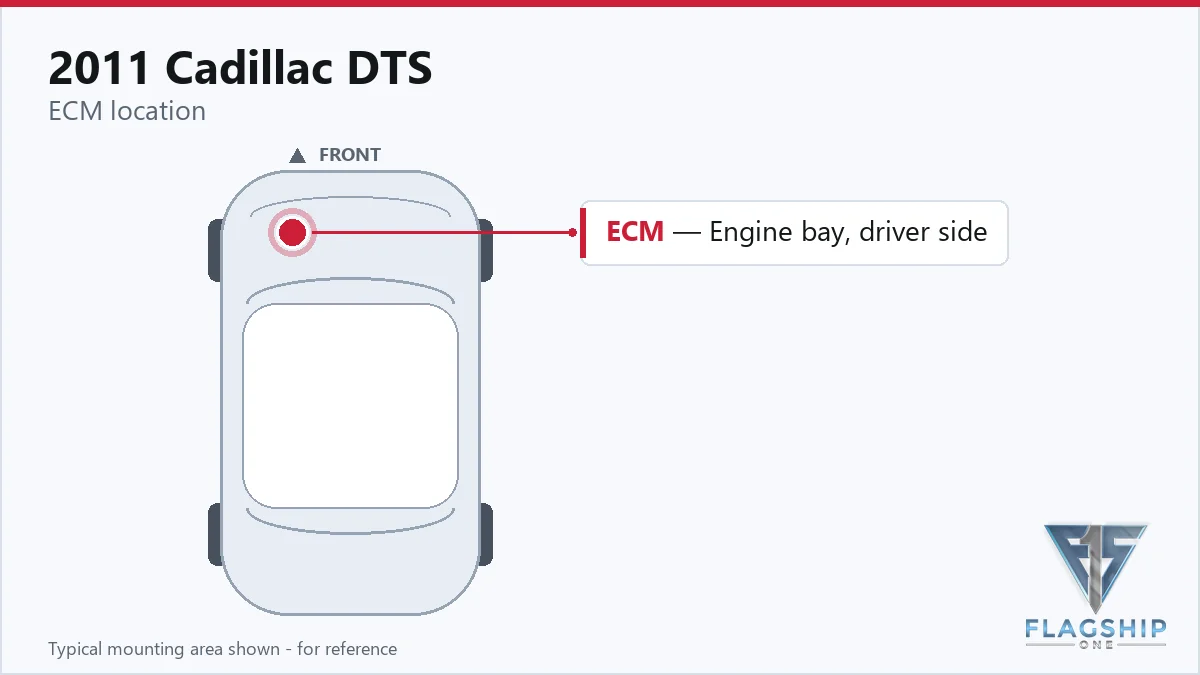

Where the PCM Is Located and What Replacement Involves
Both the Powertrain Control Module and the Engine Control Module are accessed from the engine bay. The factory removal procedure places the module adjacent to the air cleaner assembly, making it reachable with a standard set of tools. Each unit requires 1.4 hours of labor for removal or installation. The process involves disconnecting the battery, removing the module harness, and securing the new unit in the same position. No additional torque specifications are provided, so the standard manufacturer torque settings for the module mounting bolts should be followed.
How to Reach the PCM on the 2011 Cadillac DTS
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine harness electrical connector from the mass air flow/intake air.
- Disconnect the positive crankcase ventilation (PCV) fresh air tube quick connect fitting.
- Disconnect the secondary air injection (AIR) pump inlet tube quick connect fitting.
- Loosen the air cleaner outlet duct clamp at the throttle body.
- Remove the air cleaner outlet duct from the throttle body.
- Remove the air cleaner upper housing.
- Remove the engine harness electrical connectors from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After the module replacement, the factory procedure requires the scan tool to capture the original ECM data before removal and then to re‑learn the module parameters. Because Flagship One units arrive VIN‑programmed, those capture and relearn steps are already completed during manufacturing. Thus, the technician will simply verify communication with the new unit and confirm that all diagnostic parameters are within spec. No additional calibration steps are needed on the shop floor. VIN‑programmed replacement unit ensures that the module is ready to operate immediately after installation.
Symptoms of a Failing PCM
Common signs of a failing Powertrain or Engine Control Module include the engine not starting, intermittent stalling, or a sudden loss of power while driving. You may also see the check engine light illuminate, or the vehicle may display diagnostic trouble codes. A frequent code that signals PCM/ECM communication failure is P0601, which indicates a malfunction in the Powertrain Control Module. When this code appears, the vehicle may experience erratic acceleration, rough idling, or a complete inability to engage the transmission.
Module Trouble Codes on the 2011 Cadillac DTS
The 2011 Cadillac DTS can generate several internal trouble codes related to its Powertrain and Engine Control Modules. These codes help technicians pinpoint the exact source of a malfunction.
Factory Service Bulletins Worth Knowing
Service Bulletin #09‑06‑03‑004 and #09‑06‑03‑004E address intermittent no‑crank or no‑start conditions caused by fretting corrosion on connectors. The bulletin recommends disconnecting the affected connector and applying dielectric lubricant. Bulletin #11‑08‑127‑001 and #11‑08‑127‑001A cover a front parking assist issue where the LED indicator stays lit and a chime sounds for about five seconds when stopping at intersections. Reprogramming the Object Alarm Module resolves this problem.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-06-03-004 | Intermittent No Crank/No Start, No Module Communication, MIL, Warning Lights, Vehicle Messages | Some customers may comment on any of the following conditions: An intermittent no crank/no start Intermittent malfunction indicator lamp (MIL) illumination… |
| 11-08-127-001 | Front Parking Assist Indicator Illuminated, Audible Chime Sounds When Entering Intersection (Re | Some customers may comment that when they come to a stop or slow down through certain intersections, all three of the front parking assist LED indicators will… |
Protecting the PCM in Your 2011 Cadillac DTS
- Maintain a healthy charging system to keep the battery voltage within spec.
- Keep all electrical connectors clean and free of corrosion.
- Avoid sudden voltage spikes by using a properly rated surge protector.
- Address any diagnostic trouble codes promptly to prevent further damage.
- Inspect and replace damaged connector seals regularly.
- Use a quality ground strap when installing aftermarket electronics.
Frequently Asked Questions
Can I replace the Powertrain Control Module on my 2011 Cadillac DTS without a diagnostic scan tool?
You will need a scan tool to capture the existing ECM data before removal. After the new module is installed, the tool can verify communication, but the initial capture step is essential to avoid data loss.
What happens if I forget to reconnect the battery after replacing the ECM?
The module will not power on, and the vehicle will likely display a no‑start condition. Reconnecting the battery will restore power, but any settings that required relearning may need to be re‑initialized.
Is the new Flagship One module compatible with all 2011 Cadillac DTS engine configurations?
The unit is specifically engineered for the 4.6L V8 engine in the 2011 Cadillac DTS and is calibrated for that configuration. It will not work with other engine types.
Do I need to update any other modules after installing a new PCM?
The PCM communicates with the transmission control module and other sensors. Once the PCM is installed and verified, no additional updates are typically required, as the module is pre‑programmed for the vehicle.
How long does the replacement process usually take in a shop?
Labor is typically around 1.4 hours per module. The total time, including diagnostic steps, may range from two to three hours depending on shop workflow.
Choosing between a refurbished replacement module and a new one depends on your budget and performance expectations. A refurbished unit can offer a lower cost, while a new Flagship One module provides the assurance of a VIN‑programmed, factory‑calibrated computer that requires no additional shop work. Both options can restore your 2011 Cadillac DTS to reliable operation, but the new unit guarantees a seamless start‑up process.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Cadillac DTS with a lifetime warranty, free shipping and no core charge. The full Cadillac DTS module lineup covers other engine configurations as well.
Final Thoughts
If your 2011 Cadillac DTS is experiencing starting or performance issues, a replacement Powertrain or Engine Control Module may be the solution. Flagship One offers a ready‑to‑install, VIN‑programmed unit that eliminates post‑install calibration. Contact a trusted service center to evaluate your vehicle’s needs.
