2006 Cadillac DTS Powertrain and Engine Control Module Replacement Guide
In the 2006 Cadillac DTS the Powertrain Control Module and Engine Control Module manage engine timing, fuel delivery, and transmission coordination. Failure of either unit can cause loss of power, erratic shifting, or multiple diagnostic trouble codes, often requiring removal, data backup, and re‑learning procedures.
Quick Summary
- Removal of the PCM or ECM typically takes about 1.4 hours per unit.
- A 0.5 hour relearn step follows each module replacement.
- Data must be captured with a scan tool before the ECM is removed.
- Electrostatic discharge can damage the ECM if connector pins are touched.
When a 2006 Cadillac DTS experiences power‑train glitches or diagnostic codes, the underlying cause often lies with the control modules that govern engine and transmission functions. This guide explains what the Powertrain Control Module and Engine Control Module do, where they are located, and what steps are needed to replace and program them safely. After reading, you will understand the labor involved, the precautions to protect the electronics, and how a properly programmed replacement can get your vehicle back on the road.
What the PCM Does in a 2006 Cadillac DTS
The Powertrain Control Module in a 2006 Cadillac DTS interprets sensor data to control fuel injection, ignition timing, and transmission shifting, while the Engine Control Module focuses on engine‑specific functions such as idle control and emissions. Together they ensure smooth power delivery and compliance with emissions standards. Proper operation is critical because any mis‑communication can trigger multiple fault codes and performance loss. The modules are integral to the vehicle’s electronic management system, and a failure often requires replacement and data restoration. 2006 Cadillac DTS replacement modules are essential to maintain factory‑specified performance.

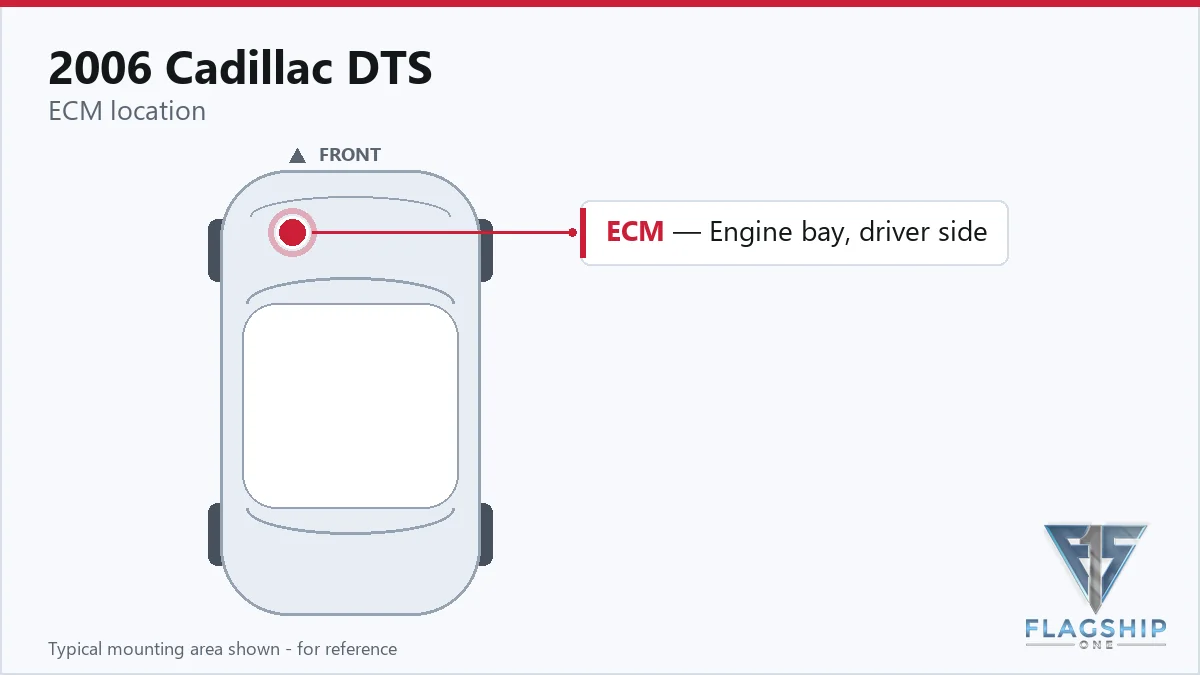

Where the PCM Is Located and What Replacement Involves
Factory documentation shows that the control module sits beside the air cleaner assembly, making it accessible once the intake components are removed. Replacing the PCM or ECM follows the same procedure: disconnect the battery, remove the module, and reinstall a new unit. The labor book time for removing and reinstalling either module is listed as 1.4 hours, with an additional 0.5 hour required for the relearn process after installation. No torque specifications are provided, so standard fastener tightening practices apply.
How to Reach the PCM on the 2006 Cadillac DTS
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the engine harness electrical connector from the mass air flow/intake air.
- Disconnect the positive crankcase ventilation (PCV) fresh air tube quick connect fitting.
- Disconnect the secondary air injection (AIR) pump inlet tube quick connect fitting.
- Loosen the air cleaner outlet duct clamp at the throttle body.
- Remove the air cleaner outlet duct from the throttle body.
- Remove the air cleaner upper housing.
- Remove the engine harness electrical connectors from the ECM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory process calls for capturing the original ECM data before removal and then restoring that data to the new unit. Special programming equipment and the correct calibration are required to complete this step. Flagship One units arrive pre‑programmed, so the data capture and reprogramming are already handled. a VIN-programmed replacement unit eliminates the need for on‑site calibration.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2006 Cadillac DTS include intermittent loss of power, rough idle, unexpected transmission shifts, and the appearance of multiple diagnostic trouble codes. You may also see a no‑start condition or dead scan‑tool communication. One common fault is internal controller communication error, which indicates a problem within the module’s internal circuitry and often triggers related codes such as P0602 or P0603.
Module Trouble Codes on the 2006 Cadillac DTS
The 2006 Cadillac DTS can generate several internal trouble codes when the control modules malfunction, providing insight into the specific fault area.
Factory Service Bulletins Worth Knowing
Service bulletins relevant to this vehicle include #05-06-04-060 (Sept 23 2005) covering shared DTCs P0601‑P0604 and P1621 across PCM, ECM, and TCM; #07132B (Sept 28 2011) detailing an OBD system improvement and ECM reprogramming; and #07-06-04-032 (Nov 15 2007) addressing multiple ECM codes like P1516 and P2101 with throttle body inspection.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
| — | Service Update for Inventory & Customer Vehicles-OBD System Improvements-Reprogram ECM – (S | — |
| 07-06-04-032 | LD8, LH2, L37 Service Engine Soon (SES)/MIL Light On, Engine Power Reduced Message on Driver In | — |
Protecting the PCM in Your 2006 Cadillac DTS
- Maintain a healthy charging system to avoid voltage spikes.
- Keep ground connections clean and secure.
- Use proper jump‑start procedures to prevent spikes.
- Address diagnostic codes promptly before they worsen.
- Inspect and protect connector seals from moisture.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2006 Cadillac DTS?
The factory book lists about 1.4 hours for removal and reinstall, plus an additional 0.5 hour for the required relearn procedure.
Do I need special equipment to program a new ECM in my 2006 Cadillac DTS?
Yes, the factory requires specific programming tools and the correct calibration files, but a VIN‑programmed replacement from Flagship One already includes this data.
Can electrostatic discharge damage the ECM during replacement?
Touching the connector pins can cause damage because the module operates at very low voltage; it is best to avoid contact with the pins entirely.
When the PCM or ECM in your 2006 Cadillac DTS needs attention, you can choose a repair that follows the factory removal and relearn steps or opt for a refurbished replacement that arrives pre‑programmed. Both approaches address the underlying fault, but a VIN‑programmed unit saves time on post‑install calibration, letting you return to the road sooner.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Cadillac DTS with a lifetime warranty, free shipping and no core charge. The full Cadillac DTS module lineup covers other engine configurations as well.
Final Thoughts
Replacing the control modules in a 2006 Cadillac DTS involves careful removal, data capture, and a relearn cycle. Using a pre‑programmed replacement can streamline the process while ensuring reliable performance. Consider your options and choose the solution that best fits your schedule and budget.
