2011 Audi A4 Engine Control Module: Location, Replacement & Relearn
The engine control module (ECM) in the 2011 Audi A4 manages fuel delivery, ignition timing, and emissions systems. A faulty ECM may cause rough idling, stalling, or failure to start, often triggering diagnostic trouble codes.
Quick Summary
- The ECM in the 2011 Audi A4 controls critical engine functions like fuel injection and ignition.
- Replacement typically takes 1.4 hours of labor for the A4 Quattro and S4 models.
- A relearn procedure (0.5 hours) is required after ECM replacement to synchronize systems.
- Factory programming ensures proper communication with the AWD and ABS modules via the data bus.
- Common symptoms include stalling, misfires, or stored trouble codes like P0727.
If your 2011 Audi A4 is stalling, misfiring, or refusing to start, the engine control module (ECM) may be the culprit. This small but critical computer manages fuel delivery, ignition timing, and emissions, ensuring smooth operation. Replacing it involves more than just swapping hardware—your vehicle will need a relearn procedure to restore proper communication with other systems. Understanding the location, labor time, and programming requirements can help you make an informed decision, whether you’re tackling the job yourself or working with a shop. A properly functioning ECM keeps your Audi running efficiently and reliably.
What the PCM Does in a 2011 Audi A4
The engine control module in your 2011 Audi A4 acts as the brain of the engine, regulating fuel injection, ignition timing, and emissions controls. It constantly adjusts these parameters based on sensor inputs to optimize performance and efficiency. When it fails, you may experience rough idling, stalling, or even a no-start condition. The module also communicates with other systems, such as the replacement engine control modules for the Audi A4, AWD control module, and ABS control module via the vehicle’s data bus. A malfunctioning ECM can disrupt these signals, leading to broader drivability issues or stored trouble codes.

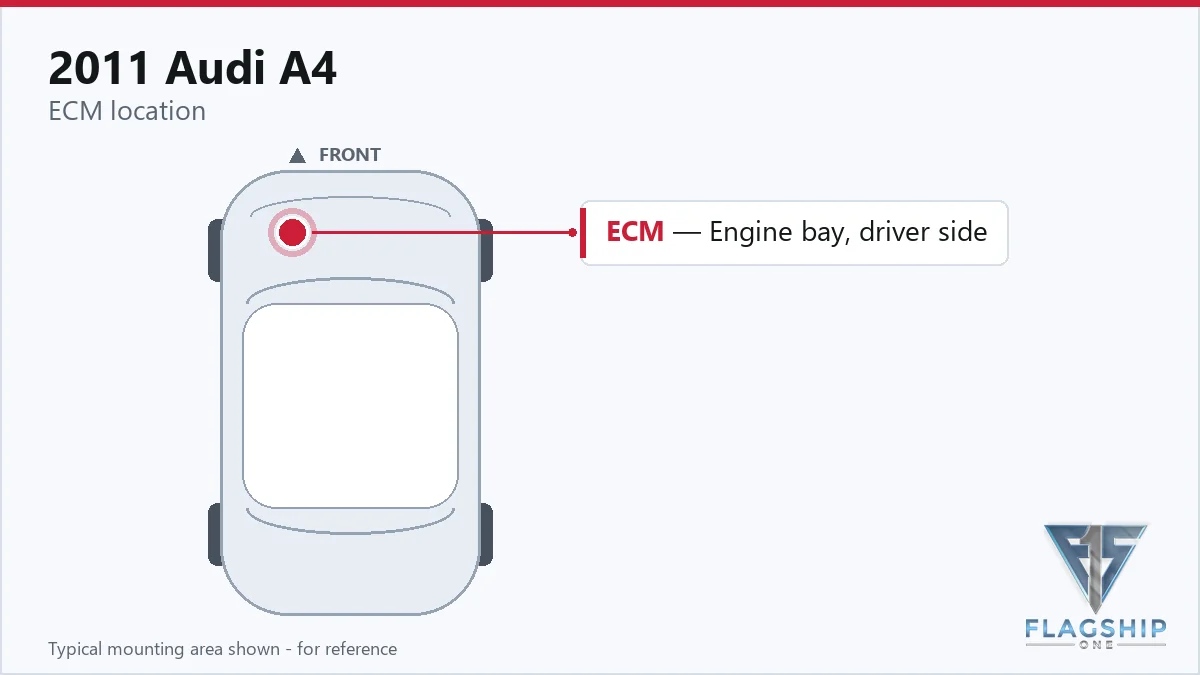

Where the PCM Is Located and What Replacement Involves
In the 2011 Audi A4, the engine control module is typically accessed for replacement, which requires 1.4 hours of labor for the A4 Quattro and S4 models. The AWD control module, which interacts with the ECM, is located differently depending on the body style. In the A4 Sedan, A5 Coupe, and A5 Cabriolet, it’s found in the spare wheel well in front of the battery. For the A4 Avant, it’s inside the luggage compartment on the right side, near the spare wheel well. Replacement involves disconnecting the battery, removing trim or panels for access, and ensuring secure reconnection of electrical connectors.
How to Reach the PCM on the 2011 Audi A4
- Turn the ignition and remove the ignition key.
- Pull the plenum chamber cover rubber seal in front of the nut slightly.
- Remove nut.
- Remove the filler neck with the filler tube from the washerfluid reservoir and the opening in the body.
- Remove the bolts and the cover from the E-box.
- Remove shear bolts with locking pliers (see direction of ).
- Disconnect metal retainers from the ECM connectors.
- Remove old ECM and install the new ECM.InstallingInstall in reverse order of removal.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | A4 Quattro | 0.5 hr |
| Powertrain Control Module Relearn | S4 | 0.5 hr |
| Powertrain Control Module Relearn | A4 | 0.5 hr |
| Engine Control Module Relearn | A4 Quattro | 0.5 hr |
| Engine Control Module Relearn | S4 | 0.5 hr |
| Engine Control Module Relearn | A4 | 0.5 hr |
| Engine Control Module R&R | A4 Quattro | 1.4 hr |
| Engine Control Module R&R | S4 | 1.4 hr |
Programming Requirements After Replacement
After replacing the engine control module in your 2011 Audi A4, a relearn procedure is required to synchronize it with the vehicle’s systems. This typically takes 0.5 hours of labor and ensures proper communication with the AWD and ABS modules. However, if you install a VIN-programmed replacement unit, this step is already completed, saving you time and avoiding potential dealer programming fees. The factory procedure ensures the new module matches your vehicle’s specifications, preventing drivability issues or error codes.
Symptoms of a Failing PCM
A failing engine control module in the 2011 Audi A4 may cause a range of symptoms, including rough idling, stalling, or difficulty starting. You might also notice poor fuel economy, misfires, or the check engine light illuminating. In some cases, the vehicle may enter a limp-home mode, limiting power to prevent further damage. Diagnostic trouble codes like no engine speed signal from the ECM may appear, indicating a communication breakdown between the ECM and other modules. If the module loses communication entirely, your scan tool may fail to connect, making diagnosis more challenging.
Factory Service Bulletins Worth Knowing
Factory service bulletins for the 2011 Audi A4 note that the transmission control module may store code P0727, indicating a sporadic loss of the engine speed signal from the engine control module. This can lead to shifting issues or erratic behavior. While the bulletin doesn’t specify a permanent fix, it highlights the importance of ensuring proper communication between the ECM and other modules. If this code appears, checking wiring, connectors, and module functionality is recommended.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 37 TCM stores P0727 (no speed signal from engine control unit, sporadic) | — |
Protecting the PCM in Your 2011 Audi A4
- Maintain a healthy charging system to avoid voltage spikes that can damage the ECM.
- Keep electrical connectors clean and securely fastened to prevent signal loss.
- Address check engine lights or trouble codes promptly to avoid cascading issues.
- Avoid jump-starting with incorrect voltage, as this can harm sensitive electronics.
- Ensure the battery is properly connected before disconnecting to prevent power surges.
- Inspect module seals and connectors for moisture or corrosion, especially in wet climates.
Frequently Asked Questions
Why does my 2011 Audi A4 stall after replacing the engine control module?
Stalling after ECM replacement often occurs if the relearn procedure isn’t completed. This step synchronizes the new module with the vehicle’s systems. Without it, the ECM may not receive or send critical signals, leading to poor performance or stalling. A VIN-programmed unit can eliminate this issue.
Can I drive my 2011 Audi A4 with a bad engine control module?
Driving with a failing ECM is risky. It may cause stalling, misfires, or sudden power loss, especially at higher speeds. In some cases, the vehicle may enter limp mode, limiting performance. If you suspect ECM issues, have it diagnosed promptly to avoid further damage.
How do I know if my 2011 Audi A4 needs a new engine control module?
Common signs include rough idling, stalling, or a no-start condition. You may also see the check engine light or store codes like P0727. If your scan tool can’t communicate with the ECM, the module itself may be faulty. A professional diagnosis can confirm the issue.
If your 2011 Audi A4 is experiencing ECM-related issues, you have options. A repair may be possible if the problem is limited to connectors or wiring, but a faulty module often requires replacement. A VIN-programmed replacement unit ensures compatibility and eliminates the need for dealer programming, saving time and hassle. Consider your vehicle’s age and condition when deciding between repair and replacement.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2011 Audi A4 with a lifetime warranty, free shipping and no core charge. The full Audi A4 module lineup covers other engine configurations as well.
Final Thoughts
The engine control module in your 2011 Audi A4 plays a vital role in keeping your vehicle running smoothly. If you’re facing stalling, misfires, or trouble codes, addressing the ECM promptly can restore performance and reliability. Whether you opt for a repair or a VIN-programmed replacement, understanding the process helps you make the best choice for your Audi.
