2010 Audi A4 All‑Wheel Drive Control Module Service Guide
The All‑Wheel Drive (AWD) control module in the 2010 Audi A4 manages torque distribution between front and rear axles. Failure typically disrupts signal flow from the engine and ABS controllers, leading to loss of traction control and error codes on the diagnostic scanner.
Quick Summary
- The module resides in the spare‑wheel well or luggage compartment depending on body style.
- Factory data bus links it to the engine and ABS control units.
- Replacement usually requires a 0.5‑hour relearn for both powertrain and engine control modules.
- A common fault stores code P0727 indicating missing speed signal.
When an AWD system in a 2010 Audi A4 stops responding, the cause often traces back to the control module that coordinates front‑and‑rear drive. Understanding where this component lives, how it interacts with other electronic controllers, and what steps the factory expects after a swap can help you decide between a new OEM part and a refurbished alternative. This guide outlines location, removal, programming needs, typical symptoms, and preventive measures so you can address the issue with confidence.
What the PCM Does in a 2010 Audi A4
The AWD control module in the 2010 Audi A4 receives speed and torque data from the engine control module and the ABS control module, then commands the drivetrain to balance power. This coordination is essential for maintaining traction in varying road conditions. Proper operation ensures the vehicle can safely distribute torque, especially on slippery surfaces. replacement AWD control modules for the 2010 Audi A4 keep the system responsive and reliable.
Where the PCM Is Located and What Replacement Involves
In the Audi A4 sedan, the module is positioned in the spare‑wheel well ahead of the battery, while the Avant variant places it inside the right‑hand side of the luggage compartment, forward of the spare‑wheel well. Access typically involves removing the wheel well liner or interior trim, then disconnecting the electrical connector. The factory book time for removal and installation is listed as 0.5 hours for each body style. No specific torque values were provided, so standard connector securing practices apply.

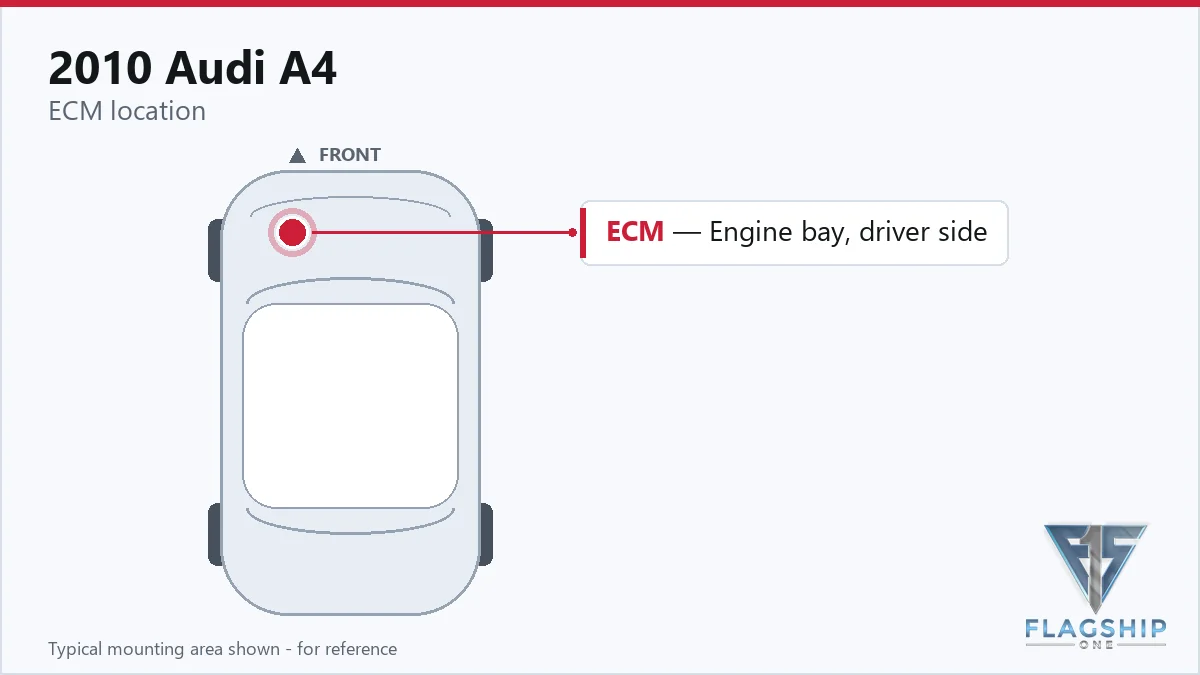

How to Reach the PCM on the 2010 Audi A4
- Turn the ignition and remove the ignition key.
- Pull the plenum chamber cover rubber seal in front of the nut slightly.
- Remove nut.
- Remove the filler neck with the filler tube from the washerfluid reservoir and the opening in the body.
- Remove the bolts and the cover from the E-box.
- Remove shear bolts with locking pliers (see direction of ).
- Disconnect metal retainers from the ECM connectors.
- Remove old ECM and install the new ECM.InstallingInstall in reverse order of removal.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | A4 | 0.5 hr |
| Powertrain Control Module Relearn | A4 Quattro | 0.5 hr |
| Powertrain Control Module Relearn | S4 | 0.5 hr |
| Engine Control Module Relearn | A4 | 0.5 hr |
| Engine Control Module Relearn | A4 Quattro | 0.5 hr |
| Engine Control Module Relearn | S4 | 0.5 hr |
| Engine Control Module R&R | A4 | 1.4 hr |
| Engine Control Module R&R | A4 Quattro | 1.4 hr |
Programming Requirements After Replacement
After installing a new unit, the factory procedure calls for a Powertrain Control Module relearn and an Engine Control Module relearn, each taking about 0.5 hours, plus any necessary R&R steps. Flagship One units arrive pre‑programmed to the vehicle VIN, so those relearn steps are already completed. a VIN-programmed replacement unit eliminates the need for additional coding in the shop.
Symptoms of a Failing PCM
Owners may notice the AWD indicator lamp flashing, a loss of traction control, or intermittent stalling during acceleration. Diagnostic scans often reveal a stored P0727 code, indicating the module is not receiving a speed signal from the engine control unit. In some cases, the vehicle may exhibit rough shifting or reduced power output due to disrupted communication between the engine and ABS controllers.
Factory Service Bulletins Worth Knowing
Service bulletin notes that the TCM can store code P0727 when it does not receive a speed signal from the engine control unit, highlighting a potential communication fault within the AWD system.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | 37 TCM stores P0727 (no speed signal from engine control unit, sporadic) | — |
Protecting the PCM in Your 2010 Audi A4
- Maintain a healthy charging system to avoid voltage irregularities.
- Inspect and clean ground connections and electrical connectors regularly.
- Use surge‑protective devices when jump‑starting to prevent spikes.
- Address any stored codes promptly to avoid module stress.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What causes the AWD control module to fail in a 2010 Audi A4?
Failure often stems from loss of communication with the engine or ABS control units, which can be triggered by corroded connectors, voltage spikes, or internal module defects.
Do I need to perform a relearn after installing a new AWD module on my 2010 Audi A4?
The factory process includes a Powertrain and Engine Control Module relearn. A VIN‑programmed replacement from Flagship One already contains those calibrations, so additional relearn steps are typically unnecessary.
Can a stored P0727 code be cleared without replacing the module?
Clearing the code may work temporarily, but if the underlying communication issue remains, the code is likely to return, indicating the module should be inspected or replaced.
When the AWD control module needs attention, you can choose a brand‑new OEM part or a refurbished unit that matches the original specifications. Both options restore the vehicle’s traction management, but a refurbished Flagship One component arrives pre‑programmed to your VIN, simplifying the repair process and reducing shop time.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Audi A4 with a lifetime warranty, free shipping and no core charge. The full Audi A4 module lineup covers other engine configurations as well.
Final Thoughts
Addressing the AWD control module in your 2010 Audi A4 helps maintain safe handling and system reliability. Whether you opt for a new part or a Flagship One refurbished solution, the right replacement keeps your vehicle performing as intended.
