2010 Toyota Matrix ECM and PCM Replacement Guide

When a 2010 Toyota Matrix starts showing persistent drivability issues or sets internal control module codes, the engine control module often becomes a suspect. Understanding what this component does, where it lives in the vehicle, and what happens after replacement helps you make informed repair decisions. The 2.4L engine relies on this computer to coordinate fuel injection, spark timing, and a range of emissions functions. A failing module can produce symptoms that mimic other problems, which sometimes leads to unnecessary parts swaps. Knowing the documented trouble codes, the factory service bulletins, and the labor involved gives you a clearer picture of what a proper repair entails. Whether you are diagnosing the vehicle yourself or working with a technician, having accurate information about the ECM’s role, its location, and the programming steps required after replacement will help you avoid wasted time and incorrect conclusions.

What the PCM Does in a 2010 Toyota Matrix

The engine control module in the 2010 Toyota Matrix serves as the central processor for the 2.4L engine’s operating strategy. It continuously reads input from sensors monitoring airflow, coolant temperature, throttle position, oxygen content, and crankshaft rotation, then adjusts injector pulse width and ignition timing accordingly. The module also manages evaporative emissions purge, idle air control, and fuel pump relay operation. Because it integrates so many functions, a fault inside the module can produce wide-ranging effects across the drivability spectrum. Toyota positioned this unit in the engine compartment per the factory electrical component locator, where it is exposed to underhood heat and vibration over the life of the vehicle. Internal memory checksum errors, such as those indicated by code P0601, suggest the module’s internal programming has become corrupted or that a processor fault has developed. In that situation, replacing the unit with replacement engine computers for the Matrix is often the most practical path, provided the new module is correctly programmed and any relearn procedures are completed after installation.

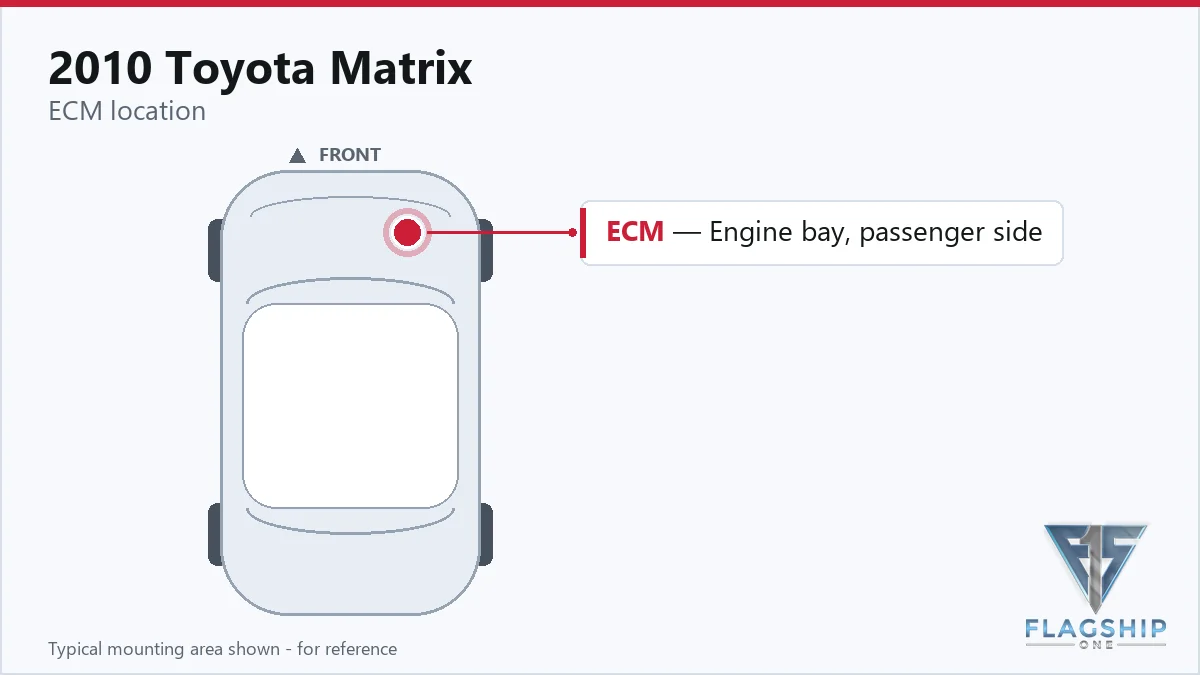

Where the PCM Is Located and What Replacement Involves

The factory electrical component locator for the 2010 Toyota Matrix places the engine control module in the engine compartment. Accessing it typically involves locating the unit, disconnecting the battery to prevent electrical damage, and unplugging the wiring harness connectors. The published book time for engine control module removal and installation is 0.7 hours. A separate relearn procedure carries an additional 0.5 hours of book time and is necessary so the replacement module adapts to the vehicle’s immobilizer, idle, and throttle position parameters. Because the module sits in the engine compartment, inspect the surrounding area for moisture intrusion or corrosion on the connector pins before installing the replacement. Clean, dry connections help ensure the new unit communicates properly with the rest of the vehicle’s systems once everything is reconnected and powered up.

Programming Requirements After Replacement

After the replacement module is installed in the 2010 Toyota Matrix, the factory procedure requires a relearn step that carries 0.5 hours of book time. Toyota service bulletin T-SB-0064-10 outlines the Techstream ECU flash reprogramming procedure for applicable models, which a technician uses to ensure the module runs the correct calibration for this specific vehicle. The relearn process allows the new module to synchronize with the immobilizer system and adapt its idle and throttle base settings. When you choose a VIN-programmed replacement unit from Flagship One, those programming and relearn steps are already completed before the part ships, so the module arrives ready for installation without requiring a trip to the dealership for flashing.

Symptoms of a Failing PCM

A failing engine control module in the 2010 Toyota Matrix may produce a variety of drivability symptoms that can be difficult to distinguish from other engine problems. Owners often report intermittent stalling, rough idle, or a no-start condition that appears without warning. The check engine light may illuminate and set internal processor codes such as memory checksum fault code, which points to a problem inside the module rather than in an external sensor or actuator. Some vehicles experience misfire codes that do not resolve after replacing ignition components, or the scan tool may fail to communicate with the ECM entirely. Shifting irregularities can also surface when the module loses its ability to properly manage engine load inputs. Because these symptoms overlap with fuel pump, ignition, and sensor failures, confirming an internal module fault typically requires ruling out other causes first and verifying that the code points to the ECM itself.

Module Trouble Codes on the 2010 Toyota Matrix

The following trouble code has been documented as a module-internal fault for the 2010 Toyota Matrix. Module-internal codes indicate a problem within the ECM’s processor or memory rather than in an external component, and they typically warrant replacement of the module itself once other possibilities have been ruled out.

Factory Service Bulletins Worth Knowing

Toyota issued service bulletin T-SB-0064-10 covering applicable models from 2001 through 2011, which includes the 2010 Toyota Matrix. This bulletin details the Techstream ECU flash reprogramming procedure, the factory-approved method for updating or installing calibration software on the engine control module. Technicians use the Techstream diagnostic system to perform this reprogramming when a module is replaced or when a software update is needed to address a known drivability or emissions concern. Following the bulletin’s procedure ensures the module runs the correct calibration for the vehicle’s specific configuration.

Protecting the PCM in Your 2010 Toyota Matrix

• Maintain a healthy charging system to prevent voltage fluctuations that can stress module circuitry over time.
• Inspect and clean engine ground connections periodically to ensure stable electrical references for the ECM.
• Avoid jump-starting the vehicle whenever possible, as voltage spikes from another battery can damage internal module components.
• Address stored trouble codes promptly rather than continuing to drive with the check engine light on.
• Keep wiring harness connector seals intact and replace any that are cracked or missing to prevent moisture intrusion.
• Have the battery tested regularly and replace it before it fails completely, as low-voltage conditions can corrupt module memory.

Frequently Asked Questions

Where is the engine control module located in the 2010 Toyota Matrix?

The factory electrical component locator places the ECM in the engine compartment. Access typically requires disconnecting the battery and unplugging the harness connectors before removing the mounting hardware.

How much labor time is involved in replacing the ECM on a 2010 Toyota Matrix?

The published book time for engine control module removal and installation is 0.7 hours. A separate relearn procedure carries an additional 0.5 hours of book time after the replacement module is installed.

What does trouble code P0601 mean on a 2010 Toyota Matrix?

Code P0601 is a module-internal fault indicating a memory checksum error within the engine control module. This typically points to a problem inside the ECM itself and may require replacement once external causes have been ruled out.

If your 2010 Toyota Matrix is showing signs of ECM failure, you have two main paths: attempting a repair of the existing module or going with a refurbished replacement. Repairing the original unit may make sense if the fault is minor, but internal processor or memory failures often call for replacement. A VIN-programmed unit from Flagship One arrives ready to install, eliminating the need for a separate dealership flash and relearn visit. Choosing the right replacement depends on matching the part to your vehicle’s specific configuration and ensuring the programming is complete before installation.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Toyota Matrix with a lifetime warranty, free shipping and no core charge. The full Toyota Matrix module lineup covers other engine configurations as well.

Final Thoughts

The 2010 Toyota Matrix depends on a healthy engine control module to keep its 2.4L engine running smoothly. Understanding the module’s location, the labor involved, and the programming steps required after replacement helps you approach the repair with confidence. If you are dealing with internal module codes or persistent drivability issues, explore the replacement options available for your vehicle.
