2010 Ford Mustang ECM and PCM Relearn Procedures
In the 2010 Ford Mustang the Engine Control Module (ECM) and Powertrain Control Module (PCM) manage fuel delivery, ignition timing, and transmission shifting. A failure often disables communication with diagnostic tools and can trigger the P0606 internal fault, leading to loss of engine control.
Quick Summary
- ECM and PCM relearn each require about half an hour of labor.
- Factory TSB #11-01-03 addresses calibration updates for multiple engine sizes.
- The common internal fault code is P0606, indicating module communication loss.
When a 2010 Ford Mustang exhibits no‑start conditions, rough idle, or unexpected shifting, the underlying cause may involve the vehicle’s control modules. Understanding how the ECM and PCM function, where they reside, and what post‑install steps are required can help you decide between a repair or a replacement. This guide walks you through the module roles, typical symptoms, factory service bulletins, and the specific labor involved, so you can make an informed choice for your Mustang.
What the PCM Does in a 2010 Ford Mustang
The ECM in the 2010 Mustang continuously monitors engine sensors to calculate the precise fuel mixture and ignition timing, while the PCM extends that oversight to the transmission. Together they ensure smooth power delivery and shift quality, which is essential for both performance and emissions compliance. A malfunction can disrupt engine start, cause stalling, or produce erratic gear changes. Proper calibration keeps the modules synchronized with the vehicle’s hardware. For owners seeking a swap, consider replacement engine control modules for the 2010 Mustang as a direct fit that maintains factory specifications.
Where the PCM Is Located and What Replacement Involves
Both the ECM and PCM are mounted within the engine bay, typically attached to the firewall or near the intake manifold. Access generally involves removing a few fasteners and disconnecting the electrical connector. The labor estimate for removing and reinstalling either module is listed as 0.5 hours, reflecting the straightforward nature of the task. No additional torque specifications are provided, so standard hand‑tightening to secure the mounting bolts is sufficient.

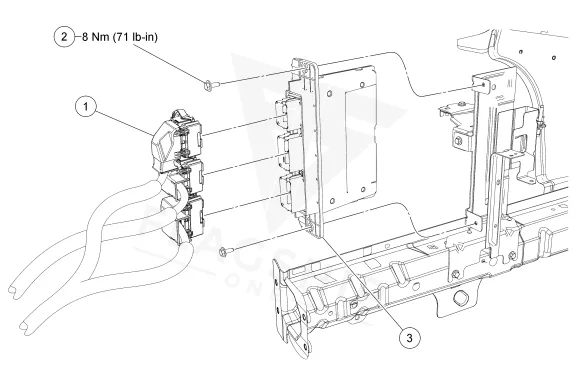

How to Reach the PCM on the 2010 Ford Mustang
- Remove the 8 retainers and the radiator sight shield.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new module, the factory procedure calls for a relearn sequence to synchronize the unit with the vehicle’s existing sensors and transmission parameters. The required steps include an Engine Control Module Relearn and a Powertrain Control Module Relearn, each taking about 0.5 hours of technician time. Flagship One units arrive pre‑programmed to the vehicle’s VIN, meaning that a VIN-programmed replacement unit eliminates the need for on‑site coding and reduces the overall service time.
Symptoms of a Failing PCM
Owners of a 2010 Mustang may notice a failure to start, intermittent stalling, rough idle, or unexpected gear shifts when the control modules are compromised. Diagnostic scans often reveal a loss of communication with the ECM or PCM, and the presence of internal communication fault can confirm the issue. Additional signs include illuminated check‑engine lights, reduced fuel efficiency, and the inability to clear codes without module replacement.
Module Trouble Codes on the 2010 Ford Mustang
The following internal fault codes have been recorded for the 2010 Mustang’s control modules:
| Code | Meaning | Full Guide |
|---|---|---|
| P0606 | Module processor failure | Full P0606 guide → |
Factory Service Bulletins Worth Knowing
Technical Service Bulletin #11-01-03 covers calibration updates for the 4.0L, 5.4L, and 6.8L engines, addressing various performance and drivability concerns that may arise after module replacement.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 11-01-03 | 4.0L / 5.4L / 6.8L – CALIBRATION UPDATE – VARIOUS ISSUES | — |
Protecting the PCM in Your 2010 Ford Mustang
- Maintain a healthy charging system to avoid voltage drops.
- Inspect and clean all ground connections regularly.
- Use surge protectors when jump‑starting to prevent spikes.
- Address diagnostic codes promptly before they worsen.
- Keep connector seals intact to protect against moisture.
- Avoid prolonged exposure to extreme temperatures.
Frequently Asked Questions
Can I replace the ECM on my 2010 Mustang myself?
The replacement process is relatively simple and listed at 0.5 hours of labor, but it requires proper tools and careful handling of the electrical connector to avoid damage.
What does the P0606 code indicate for a 2010 Mustang?
P0606 signals internal communication failure within the control module, which can prevent the engine from starting or cause erratic operation.
Is the TSB #11-01-03 required after installing a new module?
The bulletin provides a calibration update that may be necessary to ensure optimal performance, especially if you notice lingering drivability issues.
Do I need special equipment to perform the relearn?
The factory procedure outlines a relearn that can be completed with standard diagnostic tools; however, a VIN‑programmed unit from Flagship One removes the need for additional programming.
How often should I check the module connectors on my Mustang?
Regular inspections during routine service, such as oil changes, help catch corrosion or loosened pins before they cause faults.
When the ECM or PCM in your 2010 Ford Mustang shows signs of failure, you can choose a repair or a refurbished replacement. Both options aim to restore reliable engine control and shifting, but a pre‑programmed unit may reduce downtime. Evaluate the condition of the existing module, consider the labor involved, and decide which path best fits your schedule and budget.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Ford Mustang with a lifetime warranty, free shipping and no core charge. The full Ford Mustang module lineup covers other engine configurations as well.
Final Thoughts
For owners of a 2010 Ford Mustang, addressing ECM or PCM issues promptly can keep the vehicle running smoothly. Whether you opt for a repair or a Flagship One replacement, the right choice will safeguard performance and reliability.
