2010 Chevrolet Aveo PCM/ECM Failure: Symptoms, Replacement, Programming
The PCM/ECM in the 2010 Chevrolet Aveo (1.6L) is the engine control module that manages fuel injection, ignition timing, and emissions. Failure often results from voltage spikes, corrosion, or internal component degradation, leading to drivability issues and diagnostic trouble codes.
Quick Summary
- PCM/ECM replacement labor is 0.5 hours for Aveo and Aveo5; ECM R&R is 0.6 hours.
- An ECM relearn procedure takes 0.5 hours after replacement.
- Factory service bulletins #PIC4953E and #PIP5051A address part restrictions for the E83 ECM.
- Internal trouble codes P0601, P0602, P0603, P0604, P0606, P062F, P1621 indicate module failure.
If your 2010 Chevrolet Aveo (1.6L) is experiencing no-start, stalling, or check-engine light issues, the PCM/ECM may be at fault. This guide explains what the powertrain control module does, common failure symptoms, replacement labor times, and the factory relearn procedure. You will also learn about relevant service bulletins and internal trouble codes. Understanding these details helps you decide whether to repair or replace the module and what to expect during the process.
What the PCM Does in a 2010 Chevrolet Aveo
The PCM/ECM in the 2010 Chevrolet Aveo (1.6L) is the central computer that controls engine functions such as fuel delivery, ignition timing, and emissions systems. It receives input from sensors and sends commands to actuators to maintain optimal performance. When this module fails, the engine may run poorly or not at all. For this vehicle, replacement engine computers for the Aveo are available that match the original specifications. The module also communicates with the transmission control unit and other systems, so a failure can affect drivability and fuel economy.
Where the PCM Is Located and What Replacement Involves
Replacement of the PCM/ECM on the 2010 Chevrolet Aveo is assigned a book time of 0.5 hours for PCM R&R and 0.6 hours for ECM R&R. The Aveo and Aveo5 variants share these same labor times. The process involves disconnecting the battery, removing electrical connectors, unbolting the module, and installing the new unit. After installation, an ECM relearn procedure is required, which adds 0.5 hours of labor. Ensure the replacement module is compatible with your vehicle’s VIN and engine configuration.

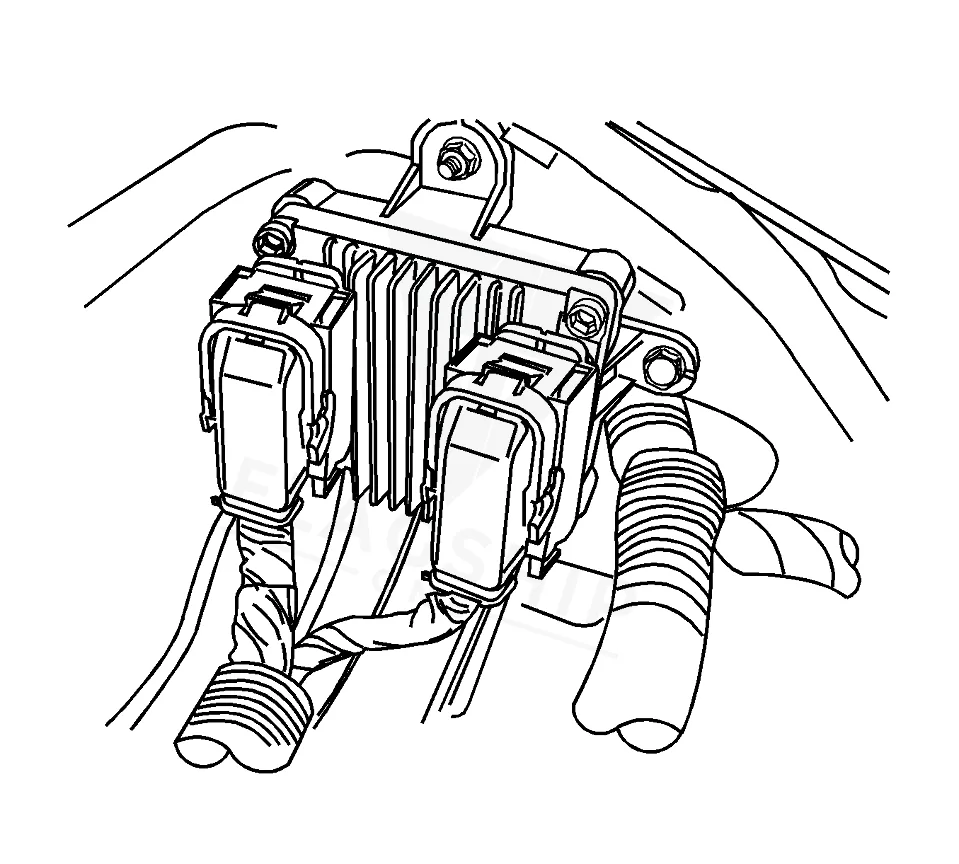

How to Reach the PCM on the 2010 Chevrolet Aveo
- Disconnect the negative battery cable.
- Disconnect the engine control module (ECM) connectors.
- Remove the ECM retaining bolts.
- Remove the ECM from the ECM mount.
- Position the ECM in place.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Aveo | 0.5 hr |
| Powertrain Control Module R&R | Aveo5 | 0.5 hr |
| Engine Control Module R&R | Aveo | 0.6 hr |
| Engine Control Module R&R | Aveo5 | 0.6 hr |
| Engine Control Module Relearn | Aveo | 0.5 hr |
| Engine Control Module Relearn | Aveo5 | 0.5 hr |
Programming Requirements After Replacement
After replacing the PCM/ECM on the 2010 Chevrolet Aveo, the factory procedure requires an ECM relearn that takes 0.5 hours. This step involves using a scan tool to synchronize the module with the vehicle’s immobilizer and other systems. However, a VIN-programmed replacement unit from Flagship One arrives with the correct programming already applied, so the relearn procedure is not needed. This saves you time and ensures the module is ready to install and drive.
Symptoms of a Failing PCM
Common symptoms of a failing PCM/ECM in the 2010 Chevrolet Aveo include no-start conditions, intermittent stalling, rough idle, misfire codes, and loss of communication with a scan tool. You may also notice transmission shifting issues or poor fuel economy. If the module has an internal fault, it may store a code like internal control module fault P0601 which indicates a memory or processor problem. These symptoms often appear suddenly and can worsen over time.
Module Trouble Codes on the 2010 Chevrolet Aveo
The following diagnostic trouble codes are stored within the PCM/ECM itself and indicate internal module failures. These codes are not related to external sensors or circuits.
Factory Service Bulletins Worth Knowing
Two service bulletins address part restrictions for the E83 ECM on the 2010 Chevrolet Aveo. Bulletin #PIC4953E (August 2011) and #PIP5051A (January 2013) both note a PQC part restriction for ECM part number 12642927. These bulletins indicate that replacement ECMs may be subject to availability controls, so sourcing a compatible unit may require checking with suppliers.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | PQC Part Restriction – E83 ECM – (Aug 23, 2011) | — |
| — | PQC Part Restriction – E83 ECM Restriction Part Number 12642927 – (Jan 25, 2013) | — |
Protecting the PCM in Your 2010 Chevrolet Aveo
- Maintain a healthy charging system; voltage spikes from a failing alternator can damage the PCM/ECM.
- Keep battery and ground connections clean and tight to prevent voltage drops and corrosion.
- Avoid jump-starting the vehicle with reversed polarity or using high-voltage boosters.
- Address diagnostic trouble codes promptly to prevent further module stress.
- Inspect the PCM/ECM connector seals for damage and ensure they are properly seated.
Frequently Asked Questions
What are the symptoms of a failing PCM in a 2010 Chevrolet Aveo?
Symptoms include no-start, stalling, rough idle, misfire codes, and loss of scan tool communication. You may also see internal trouble codes like P0601 or P0606.
How long does it take to replace the ECM on a 2010 Chevrolet Aveo?
Book time for ECM R&R is 0.6 hours, plus 0.5 hours for the required relearn procedure. PCM R&R is slightly less at 0.5 hours.
Are there any service bulletins for the 2010 Chevrolet Aveo ECM?
Yes, bulletins #PIC4953E and #PIP5051A address part restrictions for the E83 ECM, noting that replacement units may have limited availability.
If your 2010 Chevrolet Aveo’s PCM/ECM has failed, you have options: repair or replace. Given the complexity of internal electronics, replacement with a pre-programmed unit is often the most reliable choice. Flagship One offers VIN-programmed PCMs for the Aveo that eliminate the need for dealer programming, saving you time and hassle.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Chevrolet Aveo with a lifetime warranty, free shipping and no core charge. The full Chevrolet Aveo module lineup covers other engine configurations as well.
Final Thoughts
The 2010 Chevrolet Aveo’s PCM/ECM is a critical component. Understanding its failure symptoms and replacement process helps you make informed decisions. For a direct replacement, consider a pre-programmed unit from Flagship One to save time and hassle.
