2010 Cadillac Escalade 6.2L PCM/ECM Replacement and Programming Guide
The powertrain control module (PCM) in your 2010 Cadillac Escalade 6.2L is the central computer that manages engine and transmission operation. When it fails, you may experience drivability problems, no-start conditions, and internal trouble codes such as P0601, P0602, P0603, P0604, P062F, or P1621.
Quick Summary
- The PCM replacement book time for the 2010 Escalade, Escalade ESV, and Escalade EXT is 1.4 hours.
- A 0.5-hour relearn procedure is required after installing a new PCM.
- Before removing the ECM, you must use a scan tool to capture the ECM data.
- Module-internal trouble codes documented for this vehicle include P0601, P0602, P0603, P0604, P062F, and P1621.
- Flagship One provides VIN-programmed units that eliminate the need for post-install programming.
If your 2010 Cadillac Escalade 6.2L is experiencing drivability issues such as no-start, stalling, or a persistent check engine light, the powertrain control module (PCM) may be at fault. The PCM is the brain of your vehicle’s engine and transmission management system. When it fails, it can cause a range of symptoms that mimic other problems, making diagnosis tricky. This guide will help you understand what the PCM does in your Escalade, how to recognize failure symptoms, and what the replacement process involves. You will learn the factory-recommended procedures, including the critical step of capturing ECM data before removal, and how a pre-programmed replacement unit can simplify the job. The information here is based on documented labor times and trouble codes for the 2010 Escalade, Escalade ESV, and Escalade EXT models with the 6.2L engine.
What the PCM Does in a 2010 Cadillac Escalade
The powertrain control module (PCM) in your 2010 Cadillac Escalade 6.2L is a single computer that integrates engine control and transmission control functions. It receives input from sensors throughout the vehicle—such as the crankshaft position sensor, throttle position sensor, and oxygen sensors—and uses that data to adjust fuel delivery, ignition timing, and shift points. The PCM also monitors system performance and stores diagnostic trouble codes when it detects a fault. In the Escalade, the PCM is a critical component for maintaining drivability, fuel economy, and emissions compliance. When the PCM begins to fail, it may corrupt its internal memory, leading to codes like P0601, P0602, P0603, P0604, P062F, or P1621. These codes indicate internal control module errors that often require module replacement. If you are considering a replacement, you will want to look at replacement PCMs for the Escalade that are already programmed to your vehicle’s VIN to avoid the factory relearn procedure. The PCM’s role in managing both engine and transmission means that a failure can affect everything from starting to shifting, making it a component you cannot ignore.
Where the PCM Is Located and What Replacement Involves

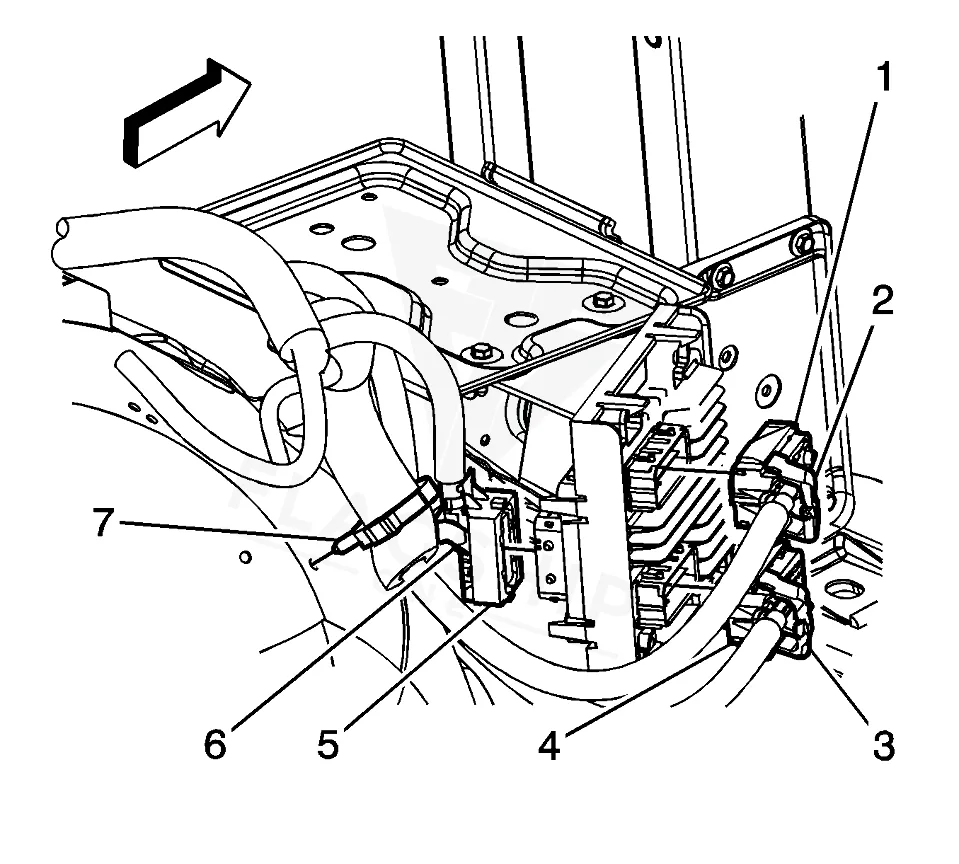

The PCM on the 2010 Cadillac Escalade 6.2L is located in the engine compartment, typically mounted on the driver side near the firewall. Access may require removing the air intake duct or other components, but the exact steps depend on your specific model (Escalade, Escalade ESV, or Escalade EXT). According to factory labor times, the PCM removal and replacement is a 1.4-hour job for all three body styles. After installing the new module, a 0.5-hour relearn procedure is required to synchronize the PCM with the vehicle’s security system and transmission. The relearn involves using a scan tool to perform a crank relearn and possibly a throttle body relearn. It is important to follow the factory procedure exactly to ensure proper operation. The book times reflect the work of a professional technician with the right tools and experience.
How to Reach the PCM on the 2010 Cadillac Escalade
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the ECM.
- Position the engine wiring harness lower electrical connector and engage the retainer.
- Position the engine wiring harness upper electrical connector and engage the retainer.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Escalade | 1.4 hr |
| Powertrain Control Module R&R | Escalade ESV | 1.4 hr |
| Powertrain Control Module R&R | Escalade EXT | 1.4 hr |
| Powertrain Control Module Relearn | Escalade | 0.5 hr |
| Powertrain Control Module Relearn | Escalade ESV | 0.5 hr |
| Powertrain Control Module Relearn | Escalade EXT | 0.5 hr |
| Engine Control Module R&R | Escalade | 1.4 hr |
| Engine Control Module R&R | Escalade ESV | 1.4 hr |
Programming Requirements After Replacement
The factory procedure for replacing the PCM on a 2010 Cadillac Escalade 6.2L requires you to use a scan tool to capture the ECM data before removing the old module. This data includes learned values for the transmission, throttle, and other adaptive systems. After installation, a relearn procedure is necessary to program the new PCM to the vehicle. However, when you choose a VIN-programmed replacement unit from Flagship One, the module arrives already programmed with your vehicle’s VIN and calibration data. This means the capture and relearn steps are already completed, allowing you to install the unit and start the engine without additional programming. The only post-install step may be a brief idle period for the PCM to adapt to the engine’s condition. This approach saves time and reduces the risk of errors during the programming process.
Symptoms of a Failing PCM
When the PCM begins to fail in your 2010 Cadillac Escalade 6.2L, you may notice a variety of symptoms. The engine may crank but not start, or it may start and then stall shortly after. You might experience rough idle, misfires, or hesitation during acceleration. The check engine light will likely illuminate, and you may see trouble codes related to internal module errors, such as internal control module memory error. Other symptoms include erratic transmission shifting, loss of communication with the scan tool, or the vehicle entering a reduced-power mode. In some cases, the PCM may fail intermittently, causing symptoms that come and go. Because the PCM controls both engine and transmission, a failure can affect multiple systems simultaneously. If you notice any of these issues, it is important to have the PCM tested and replaced if necessary to avoid being stranded.
Module Trouble Codes on the 2010 Cadillac Escalade
The following module-internal trouble codes have been documented for the 2010 Cadillac Escalade 6.2L. These codes indicate faults within the PCM itself rather than external sensors or circuits.
Protecting the PCM in Your 2010 Cadillac Escalade
- Keep your battery and charging system in good condition; voltage spikes or low voltage can damage the PCM.
- Ensure all ground connections and module connectors are clean and tight to prevent corrosion and intermittent contact.
- Avoid jump-starting your vehicle with a running donor vehicle; use a battery charger instead to prevent voltage surges.
- Address any diagnostic trouble codes promptly, especially internal module codes like P0601, to prevent further damage.
- Inspect the PCM connector seals and housing for cracks or moisture intrusion, which can cause internal shorts.
- Use a quality battery with the correct cold cranking amps for your Escalade to maintain stable voltage to the PCM.
Frequently Asked Questions
How do I know if the PCM in my 2010 Cadillac Escalade 6.2L is failing?
Common signs include no-start, stalling, rough idle, transmission shifting problems, and a check engine light with internal module codes such as P0601 or P0602. A scan tool may show loss of communication with the PCM.
Can I replace the PCM in my 2010 Escalade myself?
Yes, if you have mechanical experience. The book time is 1.4 hours for removal and replacement. However, you will need a scan tool to capture ECM data before removal and to perform the 0.5-hour relearn after installation. A pre-programmed unit simplifies the process.
What is the difference between a PCM and an ECM on the 2010 Escalade?
In this vehicle, the PCM (powertrain control module) combines engine and transmission control into one unit. Some manufacturers use separate ECM (engine control module) and TCM (transmission control module), but the Escalade uses a single PCM.
Will a used PCM from a salvage yard work on my 2010 Cadillac Escalade?
A used PCM must be programmed to your vehicle’s VIN and may still have internal faults. It also requires the same capture and relearn procedure as a new unit. A VIN-programmed replacement from Flagship One is a more reliable option.
What does the 0.5-hour relearn procedure involve for the 2010 Escalade?
The relearn typically includes a crank position sensor variation learn and a throttle body relearn. It requires a professional scan tool to complete. This step is necessary to synchronize the new PCM with the engine and transmission.
When your 2010 Cadillac Escalade 6.2L needs a new PCM, you have options: repair the existing module, buy a new OEM unit, or choose a refurbished replacement. Refurbished units from Flagship One are tested and come VIN-programmed, saving you the 0.5-hour relearn and the need to capture ECM data. This is a practical choice for the Escalade, Escalade ESV, and Escalade EXT models.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Cadillac Escalade with a lifetime warranty, free shipping and no core charge. The full Cadillac Escalade module lineup covers other engine configurations as well.
Final Thoughts
The PCM in your 2010 Cadillac Escalade 6.2L is a vital component that controls engine and transmission operation. Recognizing symptoms like no-start, stalling, or internal trouble codes can help you address failure early. With a VIN-programmed replacement unit, you can avoid the factory capture and relearn steps, making the repair straightforward. Consider a refurbished PCM for a reliable, cost-effective solution.
