2010 Buick Allure ECM: Module Replacement and Repair Guide

If your 2010 Buick Allure is experiencing starting problems, stalling, or unusual shifting behavior, the Engine Control Module may be the culprit. The ECM serves as the brain of your 2.4L engine, continuously monitoring sensors and adjusting fuel and ignition for optimal performance. When this module fails internally, it can leave you stranded or cause the check engine light to illuminate with cryptic codes. This guide explains what the ECM does, where its located, common failure symptoms, and your replacement options. You will learn the factory-recommended procedures and why choosing a properly programmed replacement matters for getting your Buick back on the road reliably.

What the PCM Does in a 2010 Buick Allure

The Engine Control Module in your 2010 Buick Allure serves as the primary computer managing engine and transmission operations. This unit continuously processes inputs from dozens of sensors to control fuel injection quantity, ignition timing advance, emission system operation, and even transmission shift points. Without a functioning ECM, the engine cannot run properly regardless of other mechanical condition. When internal memory circuits or the processor within the module fails—as indicated by codes P0601 through P0604, P062F, or P1621—the module loses the ability to store critical calibration data or execute its programming. Replacement engine computers for the 2010 Buick Allure must be programmed with the vehicles specific VIN and calibration files to restore proper operation of the 2.4L powertrain.

Flagship One keeps Buick Allure replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

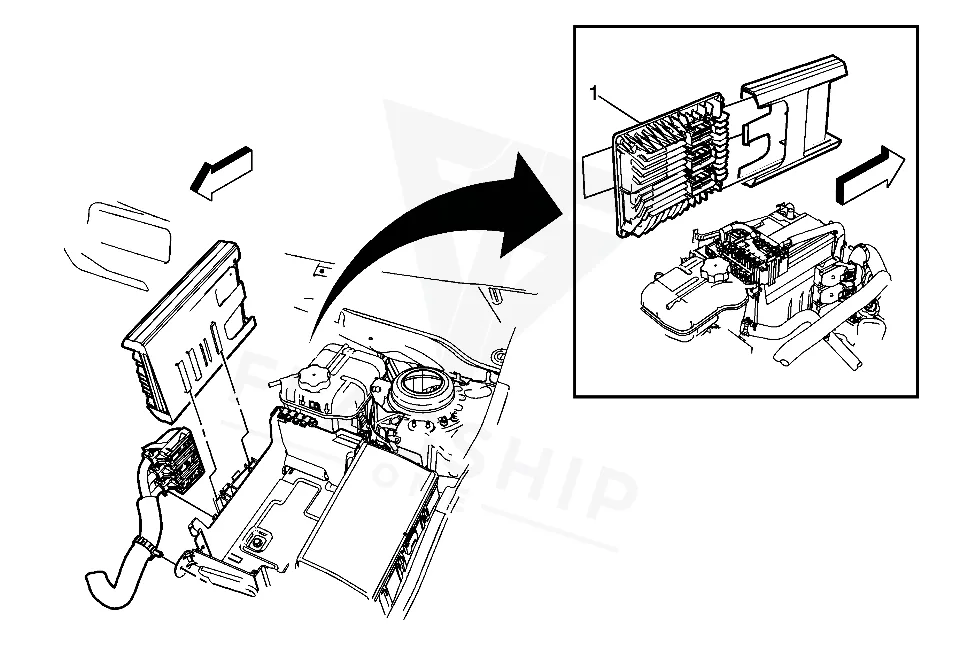

The Engine Control Module on the 2010 Buick Allure is typically mounted in the engine compartment, often near the firewall or front passenger area. Access may require removing surrounding components such as air intake ductwork or trim panels. The factory caution states you must turn the ignition off when installing or removing ECM connectors to prevent component damage. Replacement involves disconnecting the battery, removing the old module, installing the new unit, and reconnecting connectors properly. According to labor guides, ECM R&R on this vehicle is book timed at 0.6 hours, with additional time needed for relearn procedures afterward. Ensure all connector seals remain intact during the procedure and verify proper torque specifications when securing the module.

Programming Requirements After Replacement

After module replacement, the factory procedure requires reprogramming with special equipment, the correct program, and calibration files specific to the 2010 Buick Allure. This step loads the vehicles VIN and calibration data into the new ECM so it can properly control the 2.4L engine and transmission. Without this programming, the replacement module will not function in your vehicle. Flagship One sends a VIN-programmed replacement unit, which means these programming steps are already completed before the part arrives. This allows you to install the module and perform the relearn procedure without needing access to dealer-level programming equipment.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

Common symptoms of ECM failure in the 2010 Buick Allure include hard starting or no-start conditions, unexpected engine stalling, rough idle, and hesitation under acceleration. The check engine light typically illuminates, and diagnostic scanning may reveal multiple random misfire codes or complete failure to communicate with the module. Some owners report the engine runs but the transmission shifts roughly or the vehicle goes into limp mode. When the ECM fails internally, specific trouble codes often appear. One common code is Internal Control Module Memory Check, which indicates the modules internal memory checksum does not match expected values, suggesting a failed memory circuit within the ECM.

Module Trouble Codes on the 2010 Buick Allure

The 2010 Buick Allure may display several module-internal trouble codes when the ECM experiences internal failures. These codes include P0601 (internal memory checksum error), P0602 (internal control module programming error), P0603 (internal control module keep-alive memory error), P0604 (internal control module random access memory error), P062F (internal control module long term memory performance), and P1621 (internal control module performance). When these codes appear after clearing other faults or appear spontaneously, they typically indicate the ECM itself requires replacement rather than sensor or wiring repairs.

Factory Service Bulletins Worth Knowing

Factory service bulletins addressing this vehicle include bulletin #PI0079A, issued May 4, 2010, which covers a 2-3 upshift flare and 2-1 coastdown clunk or harsh shift condition requiring TCM reprogramming. Additionally, bulletin #10316, issued October 7, 2010, provides a service update for both inventory and customer vehicles requiring ECM reprogramming. These bulletins indicate the 2010 Buick Allure benefited from factory updates to control module calibration, and replacement units should receive current programming to address these known concerns.

Protecting the PCM in Your 2010 Buick Allure

• Maintain healthy charging system output to prevent low voltage conditions that stress the ECM
• Keep ECM connectors clean and dry; inspect connector seals during other service work
• Avoid jump-starting the vehicle from another car to prevent voltage spike damage
• Address diagnostic trouble codes promptly rather than ignoring warning lights
• Use proper diagnostic procedures and avoid disconnecting battery while engine is running
• Store vehicle in temperature-stable environment when possible to reduce thermal stress on electronics

Frequently Asked Questions

How do I know if my 2010 Buick Allure ECM is failing?

Common indicators include hard starting or no-start conditions, unexpected stalling, illumination of the check engine light, and multiple misfire codes. Diagnostic scanning may show communication failures or specific internal codes like P0601. If your Buick runs poorly or displays these symptoms, the ECM should be tested.

Can I replace the ECM on my 2010 Buick Allure without programming equipment?

The physical replacement is straightforward, but the new module requires programming with your vehicles specific VIN and calibration. Units from Flagship One arrive VIN-programmed, eliminating this step for most DIY installers. The relearn procedure still applies after installation.

What is the difference between the ECM and PCM on this vehicle?

The ECM (Engine Control Module) primarily manages engine functions like fuel and ignition, while the PCM (Powertrain Control Module) often handles transmission control. Some vehicles integrate these functions. The 2010 Buick Allure uses an ECM that also communicates with the TCM for shifting coordination.

When your 2010 Buick Allure requires ECM replacement, you have options ranging from expensive new OEM modules to quality remanufactured units. Consider your vehicles mileage, your budget, and how long you plan to keep the car. A remanufactured replacement from Flagship One provides VIN programming specific to your Allure, saving you the cost and hassle of dealer programming. Whether you choose new or remanufactured, ensure the unit includes proper calibration for the 2.4L engine.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2010 Buick Allure with a lifetime warranty, free shipping and no core charge. The full Buick Allure module lineup covers other engine configurations as well.

Final Thoughts

The 2010 Buick Allure depends on its Engine Control Module to manage critical engine and transmission functions. Recognizing failure symptoms early and addressing them promptly helps avoid being stranded. With proper VIN programming, a replacement ECM restores reliable operation to your Buick. Contact Flagship One to discuss options for getting your Allure back on the road.
