2006 Buick Allure PCM/ECM Replacement: What Owners Should Know
The powertrain control module (PCM) or engine control module (ECM) in your 2006 Buick Allure manages fuel, ignition, and emissions systems. Failures may cause erratic engine behavior, stored trouble codes, or complete no-start conditions.
Quick Summary
- The PCM/ECM in the 2006 Buick Allure is located near the air cleaner assembly.
- Factory procedure requires capturing module data before removal to restore to a new unit.
- Programming the replacement module demands specialized equipment and vehicle-specific software.
- Internal trouble codes like P0601 or P1621 often indicate module failure.
- Disconnecting power at the ECM fuse is a critical safety step before servicing.
If your 2006 Buick Allure is experiencing unexplained stalling, rough idling, or a no-start condition, the powertrain control module (PCM) or engine control module (ECM) may be at fault. This small but critical computer oversees engine performance, fuel delivery, and emissions systems. Replacing it involves more than just swapping hardware—factory procedures require careful data handling and precise programming. Understanding the steps, symptoms, and precautions can help you avoid unnecessary complications and ensure your vehicle runs reliably after the repair.
What the ECM Does in a 2006 Buick Allure
In your 2006 Buick Allure, the PCM/ECM acts as the brain of the engine, continuously adjusting fuel injection, ignition timing, and emissions controls for optimal performance. It also communicates with other vehicle systems, such as the transmission and onboard diagnostics. A malfunctioning module can disrupt these processes, leading to poor drivability or even a complete breakdown. When replacement becomes necessary, replacement engine computers for the Allure must be programmed to match your vehicle’s specific configuration to restore proper function.
Where the ECM Is Located and What Replacement Involves

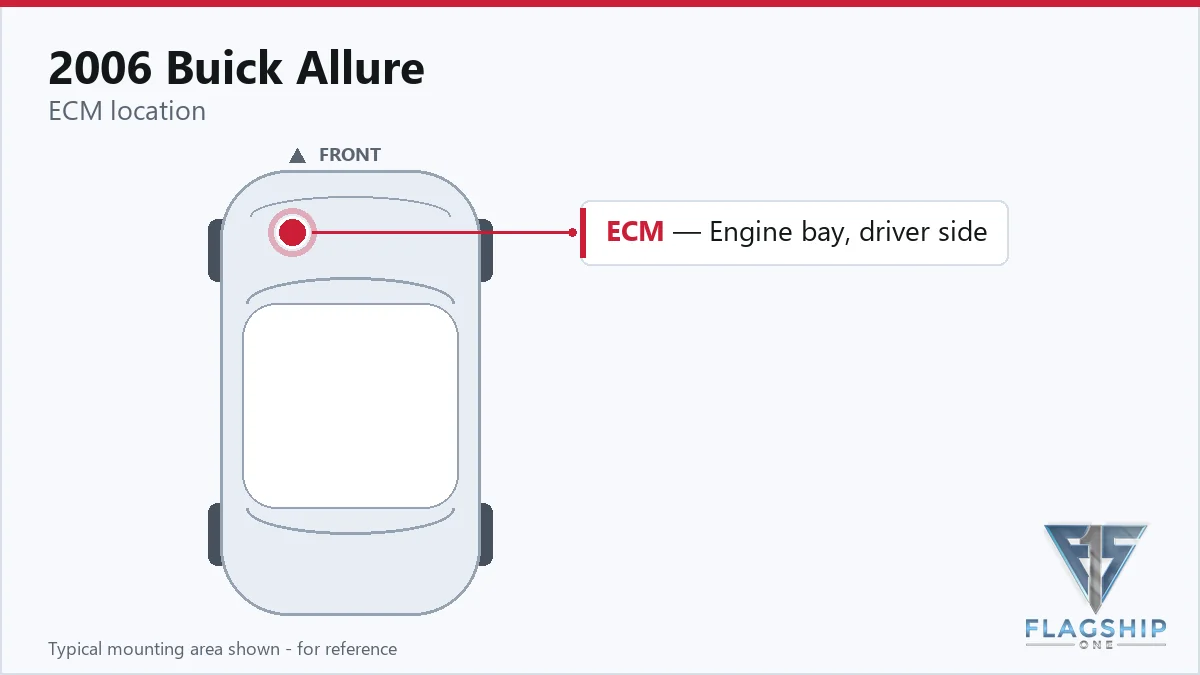

The PCM/ECM in the 2006 Buick Allure is positioned next to the air cleaner assembly, making it relatively accessible compared to some vehicles. However, replacement isn’t as simple as unbolting the old unit and installing a new one. Before removal, you’ll need to disconnect the main relay circuit voltage by checking the ECM fuse in the underhood fuse block with a digital voltmeter. This step prevents electrical damage during the process. Once the module is removed, the new unit must be installed and secured in the same location.
How to Reach the ECM on the 2006 Buick Allure
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the left front inner fender brace.
- Remove the air cleaner intake duct.
- Remove the air cleaner housing cover screws.
- Remove the air cleaner housing cover.
- Disconnect the PCM electrical connectors and remove the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
Programming Requirements After Replacement
After installing a new PCM/ECM in your 2006 Buick Allure, the factory procedure requires restoring the original module’s data using a scan tool. This step ensures the new unit retains your vehicle’s specific calibrations, such as fuel trims and transmission settings. Additionally, reprogramming the module demands specialized equipment and the correct software for your Allure. However, if you opt for a VIN-programmed replacement unit, these steps are already completed, saving you time and reducing the risk of programming errors during installation.
Symptoms of a Failing ECM
A failing PCM/ECM in your 2006 Buick Allure may cause a range of symptoms, from subtle drivability issues to complete engine shutdown. Common signs include intermittent stalling, rough idling, or a no-start condition. You might also notice poor acceleration, erratic shifting, or the check engine light illuminating with internal module codes. One such code, control module memory checksum error, often indicates a hardware fault within the PCM/ECM itself. If your scan tool fails to communicate with the module, that’s another strong sign of failure.
Module Trouble Codes on the 2006 Buick Allure
The 2006 Buick Allure may store specific trouble codes when the PCM/ECM experiences internal faults. These codes typically point to memory errors, communication failures, or calibration issues within the module itself.
Factory Service Bulletins Worth Knowing
General Motors issued service bulletin #05-06-04-060 addressing internal module trouble codes P0601, P0602, P0603, P0604, and P1621 that may appear in the PCM, ECM, or TCM of the 2006 Buick Allure. The bulletin outlines diagnostic steps and potential solutions for these shared faults, which often indicate a need for module replacement or reprogramming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 05-06-04-060 | Powertrain Control Module (PCM), Engine Control Module (ECM), Transmission Control Module (ECM) | — |
Protecting the ECM in Your 2006 Buick Allure
- Keep your vehicle’s charging system in good condition to avoid voltage spikes that may damage the PCM/ECM.
- Ensure all electrical connectors and grounds are clean, tight, and free of corrosion to maintain reliable communication.
- Avoid jump-starting the battery with incorrect voltage, as this can harm sensitive electronics.
- Address any stored trouble codes promptly to prevent cascading failures in related systems.
- Inspect the PCM/ECM connector seals regularly to prevent moisture intrusion, which can cause corrosion.
- Use a battery maintainer if the vehicle sits unused for extended periods to prevent low-voltage conditions.
Frequently Asked Questions
Why does my 2006 Buick Allure need PCM/ECM data captured before replacement?
The PCM/ECM stores critical vehicle-specific data, such as fuel trims, transmission calibrations, and emissions settings. Capturing this data before removal ensures it can be restored to the new module, preventing drivability issues or incorrect operation after installation.
Can I install a used PCM/ECM from another 2006 Buick Allure?
While it’s possible, used modules often require reprogramming to match your vehicle’s VIN and configuration. Without proper programming, the module may not function correctly, leading to performance issues or stored trouble codes.
What happens if I don’t disconnect the ECM fuse before removing the module?
Failing to disconnect power at the ECM fuse may result in electrical damage to the module or other sensitive components. The factory procedure specifies this step to prevent short circuits or voltage spikes during removal.
If your 2006 Buick Allure is showing signs of PCM/ECM failure, you have options for replacement. A new or refurbished module can restore reliable performance, but programming is critical. Choosing a pre-programmed unit tailored to your Allure eliminates the need for post-installation software updates, simplifying the repair process.
Flagship One stocks a refurbished, VIN-programmed ECM for the 2006 Buick Allure with a lifetime warranty, free shipping and no core charge. The full Buick Allure module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Buick Allure relies on its PCM/ECM for smooth engine operation, and addressing module issues promptly can prevent further complications. Whether you’re dealing with a no-start condition or stored trouble codes, understanding the replacement process ensures a successful repair. With the right precautions and a properly programmed module, your Allure can continue running reliably.
