You’ve just noticed that your 2009 Pontiac Montana 3.5L is behaving oddly—perhaps it stalls or shows a fault code when you start it. The problem could be with the PCM, the module that coordinates engine and transmission operations. Understanding where the PCM sits, how it’s removed, and what steps are needed to install a replacement is key to a reliable fix. This guide explains the PCM’s role in your vehicle, where it lives, and the exact procedures you must follow to replace it safely. You’ll also learn how to avoid common pitfalls that can lead to misdiagnosis after the swap, ensuring your Montana runs smoothly again.

What the ECM Does in a 2009 Pontiac Montana

In the 2009 Pontiac Montana 3.5L, the PCM controls fuel injection, ignition timing, and transmission shifts. It gathers sensor data and executes engine maps that keep the powertrain running efficiently. A malfunctioning PCM can cause a range of symptoms, from poor throttle response to complete engine shutdown. replacement engine computers for the 2009 Pontiac Montana The PCM’s failure often triggers internal trouble codes such as P0601, P0602, or P0603, which are stored within the module’s memory. Addressing these issues requires a proper replacement or reprogramming of the unit, as the PCM’s software must match the vehicle’s calibration.

Where the ECM Is Located and What Replacement Involves

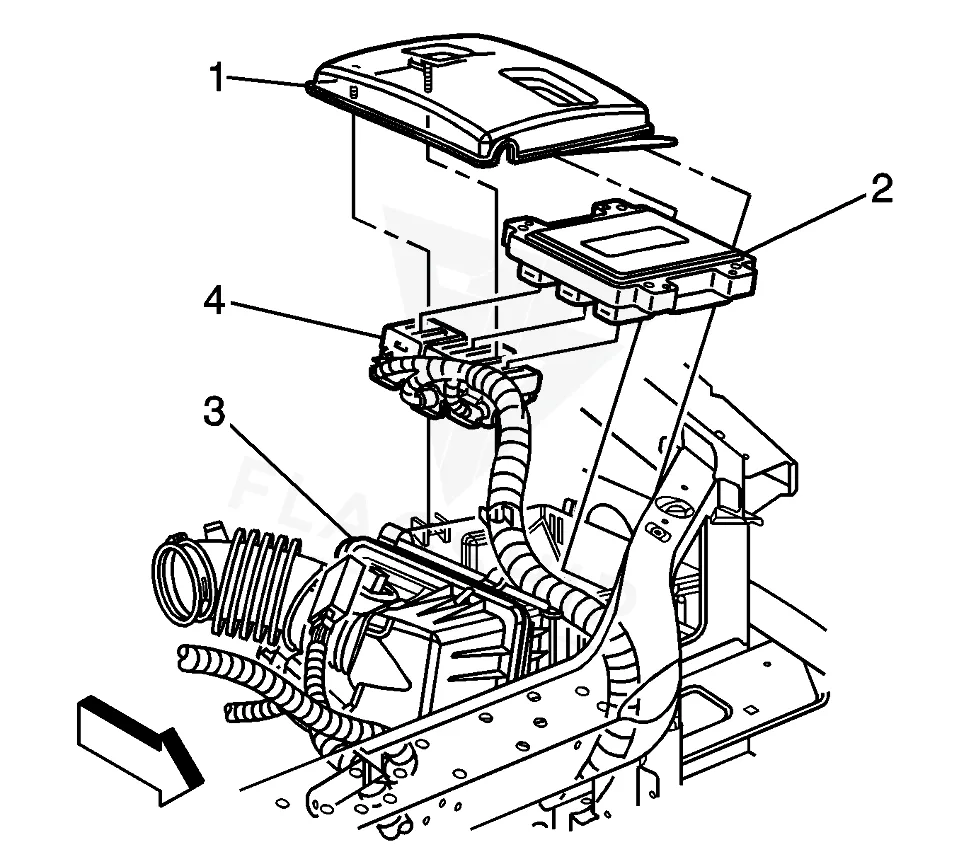

The PCM sits adjacent to the air cleaner assembly in the 2009 Pontiac Montana 3.5L. To access it, remove any covers that conceal the air cleaner and carefully disconnect the electrical harness. Once the module is free, you can install the new unit. If you need to replace other components in that area, be mindful of the labor involved and keep the surrounding wiring intact. The module’s location means that a quick visual check of the air cleaner housing will reveal whether the PCM is present and in good condition.

Programming Requirements After Replacement

After you install the new PCM, the factory procedure requires you to capture the old module’s data with a scan tool before removal. Once the replacement is in place, you must power down the ignition for 30 seconds and then restart with the engine off to clear any residual memory. Flagship One units arrive VIN‑programmed, so those steps are already completed. VIN‑programmed replacement unit This eliminates the need for post‑install programming and lets you return to normal operation immediately.

Symptoms of a Failing ECM

When the PCM in a 2009 Pontiac Montana 3.5L fails, drivers may notice a hard start, sudden stalling, or a loss of power while driving. Misfires can also occur, and the engine may refuse to idle. If the PCM cannot communicate with the vehicle’s diagnostic system, you might see a dead scan‑tool connection or an inability to read data. These symptoms often correlate with internal trouble codes like internal control module error that indicate the PCM’s memory is corrupted or its firmware is out of sync.

Module Trouble Codes on the 2009 Pontiac Montana

The following list shows internal trouble codes that can be stored in the PCM of a 2009 Pontiac Montana 3.5L. These codes help pinpoint the exact nature of the PCM fault.

Protecting the ECM in Your 2009 Pontiac Montana

• Check the battery’s charging system regularly to keep the PCM’s power supply stable.
• Ensure all ground connections are clean and tight to prevent intermittent communication.
• Avoid sudden voltage spikes by using a proper jump‑starter and disconnecting the battery when necessary.
• Respond quickly to any fault codes to prevent the PCM from storing additional errors.
• Keep connector seals intact to avoid moisture ingress that can damage the PCM.
• Use a quality scan tool to capture ECM data before removing the PCM.

Frequently Asked Questions

Can I replace the PCM in my 2009 Pontiac Montana 3.5L without a scan tool?

A scan tool is necessary to capture the existing PCM data before removal. This step preserves important calibration settings and helps avoid misdiagnosis after replacement.

Will a new PCM from Flagship One work with my 2009 Pontiac Montana 3.5L?

Yes. Flagship One units are VIN‑programmed for the 2009 Pontiac Montana 3.5L, so they match the vehicle’s specific calibration and eliminate the need for additional programming.

What if I see code P0601 after installing a new PCM?

Code P0601 indicates an internal control module error. If it appears after a replacement, verify the new PCM’s connections and ensure the battery was disconnected during installation to avoid power‑related glitches.

How long does the PCM replacement take?

The procedure is straightforward and typically completes in a few hours, depending on the technician’s familiarity with the 2009 Pontiac Montana’s layout.

Do I need to reset the vehicle after installing a new PCM?

Yes. After installing the new PCM, power down the ignition for 30 seconds and then restart with the engine off to clear residual memory and confirm the unit is functioning correctly.

Replacing the PCM in your 2009 Pontiac Montana 3.5L can restore reliable performance. Whether you opt for a professional repair or a refurbished replacement from Flagship One, the key is to follow the factory‑approved steps to avoid misdiagnosis. With a VIN‑programmed unit, you can skip the programming hassle and get back on the road faster.

Flagship One stocks a refurbished, VIN-programmed ECM for the 2009 Pontiac Montana with a lifetime warranty, free shipping and no core charge. The full Pontiac Montana module lineup covers other engine configurations as well.

Final Thoughts

A proper PCM replacement in your 2009 Pontiac Montana 3.5L will help you avoid engine stalls, misfires, and other performance issues. Follow the factory instructions and consider a VIN‑programmed unit for a smoother, quicker repair.
