2009 Nissan Titan PCM/ECM Replacement and Common Failure Signs
The powertrain control module (PCM) in your 2009 Nissan Titan manages engine and transmission functions. Failure may cause erratic performance, stalling, or complete no-start conditions, often triggered by electrical issues or internal faults.
Quick Summary
- The PCM in your 2009 Nissan Titan controls critical engine and transmission operations.
- Replacement typically requires 1.4 to 1.8 hours of labor, depending on module location.
- A relearn procedure (0.5 hours) is necessary after installation to ensure proper function.
- Factory cautions advise against using ECM ground terminals for voltage measurements to prevent damage.
- Common symptoms include stalling, no-start conditions, and stored trouble codes like P0605.
If your 2009 Nissan Titan is experiencing unexplained stalling, rough idling, or a stubborn no-start condition, the powertrain control module (PCM) may be the culprit. This critical component acts as the brain of your vehicle’s engine and transmission, coordinating fuel delivery, ignition timing, and shift points to keep everything running smoothly. When it fails, the symptoms can range from subtle performance hiccups to a complete inability to start the engine. Understanding the role of the PCM, how to diagnose potential issues, and what replacement involves can save you time and frustration. This guide covers the essentials: where the module is located, what labor to expect, the factory programming requirements, and how to recognize the warning signs of a failing PCM in your Titan. Whether you’re a DIYer or planning to visit a shop, knowing these details helps you make informed decisions about your vehicle’s health.
What the PCM Does in a 2009 Nissan Titan
The powertrain control module (PCM) in your 2009 Nissan Titan is a sophisticated computer that oversees nearly every aspect of engine and transmission performance. It processes data from sensors throughout the vehicle—such as the throttle position, oxygen levels, and crankshaft speed—to make real-time adjustments to fuel injection, ignition timing, and transmission shift points. This ensures optimal power delivery, fuel efficiency, and emissions compliance. Without a properly functioning PCM, your Titan may struggle with poor acceleration, erratic shifting, or even fail to start. The module also plays a key role in diagnosing issues, storing trouble codes when something goes wrong. If the PCM itself fails, you might notice symptoms like stalling, misfires, or a check engine light that won’t clear. Replacing it isn’t just about swapping a part; it requires careful handling and programming to match your vehicle’s specific configuration. For those needing a new unit, replacement engine computers for the Titan are designed to restore full functionality without the guesswork of used or mismatched modules.
Where the PCM Is Located and What Replacement Involves
In your 2009 Nissan Titan, the powertrain control module (PCM) is typically mounted in the engine bay, though its exact location can vary slightly depending on the model year and trim. Replacing it involves disconnecting the battery to prevent electrical issues, then removing the module’s electrical connectors and mounting bolts. The labor time for this procedure is usually around 1.4 hours for the engine control module (ECM) and 1.8 hours for the powertrain control module (PCM), as these tasks may require additional steps like removing air intake components or other nearby parts for better access. Once the old module is out, the new one is installed in reverse order, ensuring all connectors are securely fastened and the module is properly seated. Torque specifications for the mounting bolts should be followed to avoid damaging the module or its mounting points. After installation, a relearn procedure is necessary to synchronize the new module with your Titan’s systems, which typically adds another 0.5 hours of labor.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.8 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After replacing the powertrain control module (PCM) in your 2009 Nissan Titan, a factory relearn procedure is required to ensure the new unit communicates correctly with the engine and transmission. This process typically involves using a scan tool to reset the module and allow it to adapt to your vehicle’s specific settings, such as fuel trim and shift patterns. The factory procedure takes about 0.5 hours of labor, but this step is already completed if you install a VIN-programmed replacement unit. These pre-programmed modules are matched to your Titan’s VIN, eliminating the need for additional programming and reducing the risk of compatibility issues. This not only saves time but also ensures your vehicle runs as intended from the moment the new module is installed. Always follow the manufacturer’s guidelines to avoid potential drivability issues or error codes after replacement.
Symptoms of a Failing PCM
A failing powertrain control module (PCM) in your 2009 Nissan Titan can manifest in several ways, often mimicking other common issues like fuel pump failure or transmission problems. One of the most noticeable symptoms is a no-start condition, where the engine cranks but refuses to fire up, often due to the PCM failing to send the correct signals to the fuel injectors or ignition system. Stalling or rough idling may also occur, particularly when the vehicle is warm, as the PCM struggles to maintain consistent engine operation. You might also experience erratic shifting in the transmission, such as harsh or delayed gear changes, as the PCM controls shift points and torque converter lockup. Another red flag is the illumination of the check engine light, often accompanied by trouble codes like an internal control module read-only memory error, which directly points to a PCM issue. In some cases, the vehicle may enter a “limp mode,” limiting engine power to prevent further damage. If your Titan exhibits any of these symptoms, especially in combination, the PCM should be high on your list of potential culprits. Diagnosing the issue with a scan tool can help confirm whether the module is the root cause or if another component is to blame.
Module Trouble Codes on the 2009 Nissan Titan
The 2009 Nissan Titan’s powertrain control module (PCM) may store specific trouble codes when internal faults occur. These codes help pinpoint issues within the module itself, rather than external sensors or components. Below are the documented module-internal trouble codes for this vehicle.
| Code | Meaning | Full Guide |
|---|---|---|
| P0605 | Internal ROM error | Full P0605 guide → |
Protecting the PCM in Your 2009 Nissan Titan
- Keep your Titan’s battery and charging system in good condition to avoid voltage spikes that can damage the PCM.
- Inspect and clean electrical connectors and grounds regularly to prevent corrosion or poor connections.
- Avoid jump-starting the vehicle with improper voltage, as this can overload the PCM and other sensitive electronics.
- Address any stored trouble codes promptly to prevent cascading issues that may affect the PCM.
- Ensure the PCM’s connector seals are intact to protect against moisture and debris, which can cause internal shorts.
- Use a quality scan tool to reset codes and monitor PCM health during routine maintenance checks.
Frequently Asked Questions
How do I know if my 2009 Nissan Titan’s PCM is failing?
Common signs include a no-start condition, stalling, rough idling, or erratic transmission shifts. The check engine light may also illuminate, often with codes like P0605. A scan tool can help confirm if the PCM is the issue by reading stored trouble codes.
Can I replace the PCM in my Titan myself, or should I take it to a shop?
Replacing the PCM is possible for experienced DIYers, but it requires careful handling of electrical connections and a relearn procedure afterward. If you’re unfamiliar with automotive electronics, a professional shop can ensure the job is done correctly.
What’s the difference between the PCM and ECM in my 2009 Nissan Titan?
In your Titan, the PCM (powertrain control module) typically refers to the combined engine and transmission control unit, while the ECM (engine control module) focuses solely on engine management. The labor times for replacement may vary slightly between the two.
Why does the PCM need a relearn procedure after replacement?
The relearn procedure allows the new PCM to adapt to your Titan’s specific settings, such as fuel trim and transmission shift patterns. Without it, the vehicle may run poorly or throw error codes due to mismatched data.
Can a bad battery or alternator damage my Titan’s PCM?
Yes, voltage spikes or low voltage from a failing battery or alternator can stress the PCM and other electronics. It’s important to address charging system issues promptly to avoid potential damage.
If your 2009 Nissan Titan is showing signs of PCM failure, you have a few options to consider. A repair shop can diagnose and replace the module, but labor costs can add up quickly, especially with the required relearn procedure. Alternatively, a refurbished or new replacement unit can restore your vehicle’s performance without the uncertainty of a used part. For those looking to save time and ensure compatibility, a VIN-programmed module eliminates the need for additional programming, getting your Titan back on the road faster. Weighing the cost and convenience of each option can help you decide the best path forward for your vehicle.

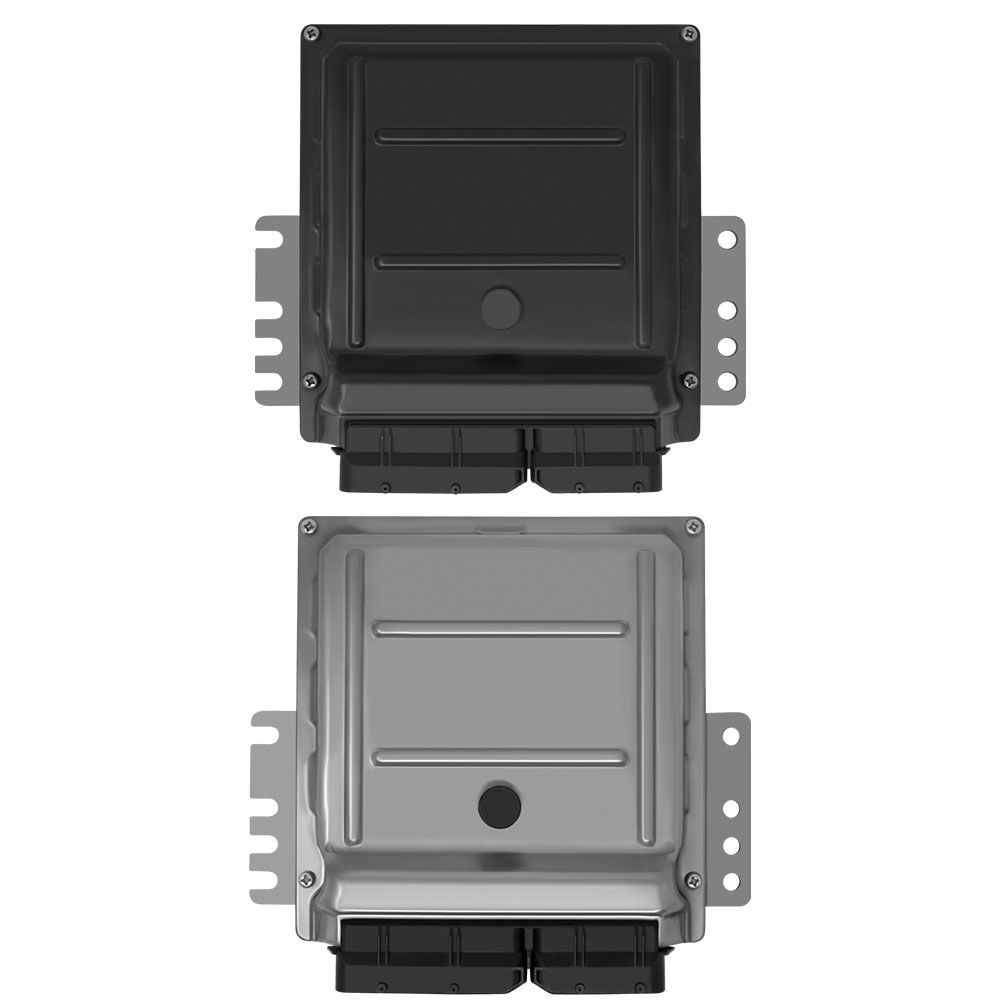

Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Nissan Titan with a lifetime warranty, free shipping and no core charge. The full Nissan Titan module lineup covers other engine configurations as well.
Final Thoughts
The powertrain control module in your 2009 Nissan Titan plays a critical role in keeping your engine and transmission running smoothly. If you’re experiencing symptoms like stalling, no-start conditions, or erratic shifting, the PCM may be the cause. Understanding the replacement process, labor requirements, and programming needs can help you make an informed decision about repairs. Whether you choose to tackle the job yourself or leave it to a professional, addressing PCM issues promptly can prevent further complications and keep your Titan reliable for years to come.
