2009 Mercury Mariner ECM/PCM Relearn and Replacement Guide
In the 2009 Mercury Mariner, the engine control module (ECM) and powertrain control module (PCM) manage fuel delivery, ignition timing, and transmission shift strategy. A failure in either unit can trigger the check engine light, cause harsh gear changes, or prevent the engine from starting, reflecting loss of electronic command over critical systems.
Quick Summary
- Engine and powertrain control modules each require roughly half an hour of labor to remove and reinstall.
- Relearn procedures for both ECM and PCM take about 0.5 hours each after replacement.
- Factory programming of the PATS is required to complete a PCM swap.
- Service bulletins note transmission shift errors and hybrid MIL codes for this model year.
When a 2009 Mercury Mariner begins to exhibit rough shifting, a persistent MIL lamp, or a lack of powertrain response, the electronic control units governing the engine and transmission often merit close inspection. Understanding how the ECM and PCM function, the labor involved in swapping them, and the post‑install steps can help you decide whether to pursue a repair or a refurbished replacement. This guide walks you through the module’s role, typical failure signs, factory service bulletins that affect the Mariner, and practical steps to protect the new unit once installed. By the end, you should feel confident evaluating the condition of your vehicle’s control computers and knowing what to expect from a proper reinstall.
What the PCM Does in a 2009 Mercury Mariner
The engine control module in the 2009 Mercury Mariner acts as the brain for fuel injection, ignition timing, and emission controls, while the powertrain control module extends that oversight to the transmission, coordinating shift points and torque converter lockup. Together, they translate sensor data into real‑time adjustments that keep the engine running smoothly and the gearbox engaging at the right moments. When either unit malfunctions, you may see erratic shift behavior, harsh engagements, or a steady check engine light, reflecting the loss of precise electronic command. Maintaining accurate data flow through these computers is essential for fuel efficiency and drivability, and any replacement must match the vehicle’s specifications. The process often involves accessing the modules beneath the engine cover and securing them with factory‑specified fasteners. replacement engine control modules for the 2009 Mercury Mariner ensures that the new hardware integrates seamlessly with existing wiring and sensor arrays.
Where the PCM Is Located and What Replacement Involves
Both the ECM and PCM in the 2009 Mercury Mariner are mounted within the engine compartment, typically secured to the firewall or a bracket near the intake manifold. Removal generally requires disconnecting the main power connector, unplugging sensor harnesses, and unbolting the mounting hardware. The factory book time lists 0.5 hours for each removal and reinstallation, reflecting the straightforward access but careful handling needed to avoid damaging connectors. After the unit is positioned, the bolts are tightened to the specified torque, and all electrical connections are re‑engaged before any diagnostic procedures commence.

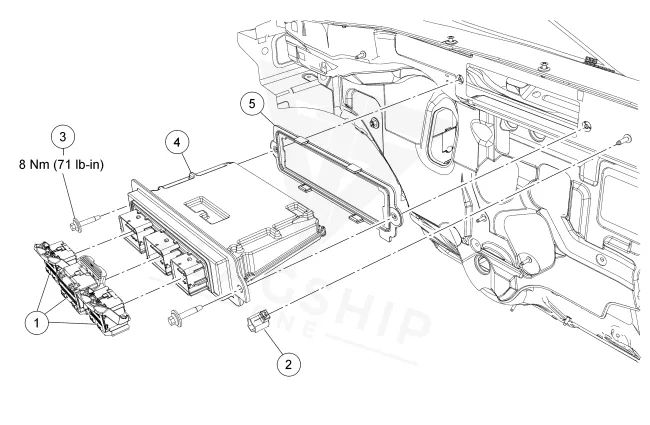

How to Reach the PCM on the 2009 Mercury Mariner
- Detach the wiring harness retainer from the cowl stud bolt.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 bolts and the PCM.
- Remove and inspect the PCM cowl seal.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once a new PCM is installed in the 2009 Mercury Mariner, the factory procedure calls for a powertrain control module relearn, which takes about 0.5 hours, followed by an engine control module relearn of another 0.5 hours. In addition, the vehicle’s passive anti‑theft system (PATS) must be reprogrammed to recognize the new unit. Flagship One supplies each replacement already VIN‑programmed, so the required PATS step is completed before the part reaches you. This eliminates the need for a separate programming session and reduces the overall shop time. a VIN-programmed replacement unit therefore arrives ready for the relearn cycles, streamlining the installation process.
Symptoms of a Failing PCM
When the ECM or PCM begins to fail in a 2009 Mercury Mariner, drivers often notice a range of issues. A common sign is the check engine light staying illuminated while the vehicle exhibits harsh or delayed shifts, which aligns with the transmission‑related trouble codes documented in service bulletins. You may also experience intermittent stalling, reduced engine power, or a complete no‑start condition if the modules lose communication with critical sensors. In some cases, diagnostic scans reveal specific codes such as transmission shift fault that point directly to the control unit’s inability to command the gearbox properly. Addressing these symptoms promptly can prevent further drivetrain wear and maintain overall vehicle reliability.
Factory Service Bulletins Worth Knowing
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-19-05 | 6F35 TRANSMISSION, DTC- P0770, P0772, P0773, P0774 – BUILT 9/8/2008 TO 9/26/2008 – ERRATIC SHIF | — |
| 10-18-03 | HYBRID – MIL ON DTCS P013A, P0030, P0130 AND/OR P0400 | — |
Protecting the PCM in Your 2009 Mercury Mariner
- Maintain a healthy charging system to avoid voltage spikes that can damage module electronics.
- Regularly inspect and clean ground connections and sensor plugs for corrosion.
- Use proper jump‑start techniques to prevent sudden voltage surges reaching the ECM or PCM.
- Promptly address any check engine light or diagnostic codes to prevent prolonged stress on the modules.
- Ensure connector seals remain intact to keep moisture out of the electronic housing.
- Avoid exposure to extreme temperatures that can degrade solder joints inside the control units.
Frequently Asked Questions
What are the typical labor times for replacing the ECM in a 2009 Mercury Mariner?
Factory labor guides estimate about half an hour to remove the engine control module and another half an hour to reinstall it, assuming normal access conditions.
Does the 2009 Mercury Mariner require a PCM relearn after replacement?
Yes, the powertrain control module relearn is a required step and is listed as a 0.5‑hour procedure in the service manual.
Can I use a used PCM without programming the PATS on a 2009 Mercury Mariner?
A used PCM must be programmed to match the vehicle’s VIN and PATS; otherwise the anti‑theft system will prevent the engine from starting.
What TSB addresses harsh shifting in the 2009 Mercury Mariner?
TSB 09‑19‑05 covers transmission shift issues for certain build dates and lists related diagnostic codes.
Are there any hybrid‑specific codes for the 2009 Mercury Mariner?
TSB 10‑18‑03 documents hybrid‑related MIL activation with codes such as P013A and P0400.
When the ECM or PCM in your 2009 Mercury Mariner requires attention, you can choose a professional repair that includes a new factory‑programmed unit or a refurbished replacement that meets OEM specifications. Both options involve the same labor steps, but a Flagship One part arrives VIN‑programmed, eliminating the need for additional PATS programming. Evaluate the condition of your current module, consider the warranty coverage, and decide which path aligns with your vehicle’s usage and budget.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Mercury Mariner with a lifetime warranty, free shipping and no core charge. The full Mercury Mariner module lineup covers other engine configurations as well.
Final Thoughts
The 2009 Mercury Mariner’s engine and powertrain control modules play a vital role in smooth operation and emission compliance. Whether you opt for a repair or a Flagship One refurbished unit, understanding the required relearn procedures and preventive measures can help keep your vehicle reliable. Contact a qualified technician to assess the situation and choose the best solution for your Mariner.
