2006 Mercury Mariner Engine Control and Powertrain Module Service
In the 2006 Mercury Mariner, the Engine Control Module (ECM) and Powertrain Control Module (PCM) manage fuel delivery, ignition timing, and transmission shifting. A failure typically results from corrupted software, voltage spikes, or internal component wear, leading to loss of engine control, diagnostic trouble codes, and reduced drivability.
Quick Summary
- ECM relearn takes about half an hour of labor.
- PCM replacement generally requires less than forty minutes.
- Both modules need a passive anti‑theft system reprogram after installation.
- Key reprogramming is part of the post‑install process.
When a 2006 Mercury Mariner begins to exhibit erratic idle, unexpected stalling, or a lit check‑engine light, the vehicle’s engine and powertrain computers are often the culprits. These electronic brains coordinate fuel injection, spark timing, and transmission behavior, and any disruption can quickly translate into drivability problems. Understanding how the ECM and PCM function, where they reside, and what steps are required after they are swapped can help you assess repair options, avoid unnecessary downtime, and keep your Mariner running smoothly. This guide walks you through the basics of the modules, their location, the labor involved, programming requirements, and practical tips to protect them.
What the PCM Does in a 2006 Mercury Mariner
The Engine Control Module in the 2006 Mercury Mariner interprets sensor data to control fuel injection, ignition timing, and emission systems, while the Powertrain Control Module oversees transmission shift points and torque converter lockup. Together they ensure the engine runs efficiently and the transmission shifts correctly, which is essential for fuel economy and emissions compliance. A malfunction can cause loss of power, rough idle, or transmission slip. The vehicle relies on these computers to meet regulatory standards and provide a smooth driving experience. For owners seeking replacements, replacement engine and powertrain computers for the 2006 Mercury Mariner are engineered to match the original specifications and retain all calibrated parameters.
Where the PCM Is Located and What Replacement Involves
Both the ECM and PCM are mounted within the engine compartment, typically attached to the firewall or near the air intake assembly. Accessing the ECM often requires removal of the intake ducting and a few fasteners, which aligns with the listed 0.5‑hour labor time for a relearn and 0.6‑hour for removal and replacement. The PCM is positioned closer to the transmission and may be reached by disconnecting a small connector harness, matching the 0.3‑hour removal time and 0.5‑hour for the relearn procedure. No torque specifications are provided, so standard factory bolts are used, and care is taken to avoid damaging the surrounding wiring harnesses during removal.

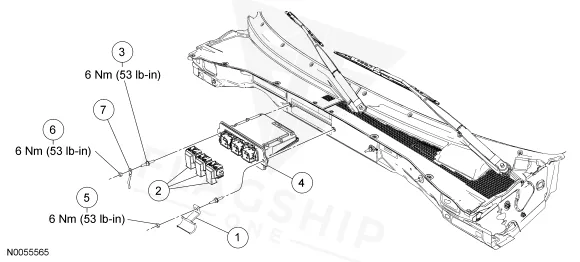

How to Reach the PCM on the 2006 Mercury Mariner
- Remove the nut and the ground strap from the PCM stud bolt.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 stud bolts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.6 hr |
| Powertrain Control Module R&R | All configurations | 0.3 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new or refurbished unit in the Mariner, the factory process calls for reprogramming the passive anti‑theft system and updating the customer’s keys. Flagship One supplies units that arrive VIN‑programmed, so the required a VIN-programmed replacement unit already contains the correct vehicle identification and calibration data, eliminating the need for on‑site coding. Technicians still need to follow the prescribed steps to verify that the anti‑theft system and key programming are correctly recognized by the vehicle’s security module.
Symptoms of a Failing PCM
Owners of a 2006 Mercury Mariner may notice a lack of engine start, intermittent stalling, or a sudden loss of power when the ECM or PCM fails. Diagnostic trouble codes often appear, such as a series of primary coil circuit failures, and the vehicle may display a check‑engine light. In some cases, the transmission may shift harshly or fail to engage, reflecting a loss of communication with the powertrain computer. When the module reports a fault, you might see primary coil circuit malfunction on a scan tool, indicating a specific sensor or coil issue tied to the module’s oversight.
Factory Service Bulletins Worth Knowing
Technical Service Bulletin 10‑18‑10 addresses 3.0L engines built on or before October 3 2005 that present a malfunction indicator lamp with DTCs ranging from P0351 to P0356, indicating primary coil circuit problems. The bulletin outlines diagnostic steps and recommended repairs for the affected coil circuitry.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 10-18-10 | 3.0L ENGINE – BUILT ON OR BEFORE 10/03/2005 – MIL ON WITH DTC P0351 THROUGH P0356 – MULTIPLE CO | — |
Protecting the PCM in Your 2006 Mercury Mariner
- Maintain a healthy charging system to avoid voltage spikes that can damage module electronics.
- Inspect and clean ground connections regularly to ensure reliable sensor communication.
- Use proper jump‑start techniques to prevent sudden voltage spikes from reaching the computers.
- Address diagnostic trouble codes promptly before they trigger module failure.
- Keep connector seals intact to protect against moisture intrusion.
- Avoid prolonged exposure to extreme temperatures that can stress electronic components.
Frequently Asked Questions
What are the typical labor times for replacing the ECM in a 2006 Mercury Mariner?
The book time for removing and reinstalling the Engine Control Module is listed as 0.6 hours, while a relearn operation adds another 0.5 hours.
Does the Powertrain Control Module require any special tools for removal in the 2006 Mercury Mariner?
No specific tools are noted beyond standard hand tools; the job is rated at 0.3 hours for removal and 0.5 hours for the relearn step.
Will a VIN‑programmed replacement unit eliminate the need for key reprogramming?
The unit arrives pre‑programmed with the vehicle identification, but the anti‑theft system and customer keys still need to be reprogrammed after installation.
What TSB covers coil circuit failures on the 2006 Mercury Mariner?
Technical Service Bulletin 10‑18‑10 addresses primary coil circuit DTCs P0351 through P0356 for engines built on or before 10/03/2005.
Can I use a refurbished PCM as a direct replacement in my Mariner?
A refurbished PCM that matches the original specifications can be installed, provided the post‑install relearn and anti‑theft programming steps are completed.
When your 2006 Mercury Mariner’s engine or powertrain computer needs attention, you can choose a brand‑new OEM replacement or a Flagship One refurbished unit. Both options restore the vehicle’s control functions, but a refurbished module arrives VIN‑programmed, reducing on‑site programming effort. Evaluate the labor estimates, required relearn steps, and warranty coverage to decide which path best fits your repair plan.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Mercury Mariner with a lifetime warranty, free shipping and no core charge. The full Mercury Mariner module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Mercury Mariner’s ECM and PCM are vital for reliable operation, and proper service—including relearn and anti‑theft programming—keeps the vehicle performing as intended. Consider your repair options and protect the modules with routine maintenance to extend their life.
