2009 Lincoln MKX PCM and ECM Service Overview
In the 2009 Lincoln MKX, the Powertrain Control Module (PCM) and Engine Control Module (ECM) serve as the vehicle’s central computers, managing engine timing, fuel delivery, transmission shifting and emissions controls. A failure in either unit can interrupt communication with sensors, trigger limp‑mode operation, or prevent the engine from starting, leading to diagnostic trouble codes and loss of drivability.
Quick Summary
- PCM relearn takes about half an hour of labor.
- ECM removal and reinstall each require roughly 0.4 hours.
- Factory‑programmed units arrive ready for use, eliminating extra coding steps.
- A related TSB notes odometer display conversion issues after a key cycle.
When a 2009 Lincoln MKX exhibits symptoms such as a no‑start condition, erratic idle, or unexpected transmission behavior, the underlying cause often traces back to the vehicle’s primary control computers. The Powertrain Control Module (PCM) and Engine Control Module (ECM) are responsible for interpreting sensor data and commanding actuators to keep the engine and drivetrain operating smoothly. Understanding how these modules function, what the factory expects after a replacement, and the typical labor involved can help you make an informed decision about repair or refurbishment. This guide walks you through the role of each module, the steps a technician follows, the programming requirements, and practical tips to keep the electronics healthy in your MKX.
What the PCM Does in a 2009 Lincoln MKX
The Powertrain Control Module in the 2009 Lincoln MKX acts as the brain for both engine and transmission, constantly processing inputs from thousands of sensors to determine fuel injection timing, spark events, and gear shifts. It also monitors emissions output to ensure compliance with regulations. The Engine Control Module, while closely linked, focuses specifically on engine management, handling ignition timing, idle speed control and fuel trim adjustments. Together, these computers enable the vehicle to meet performance targets while protecting components from damage. A malfunction can result in loss of power, rough running, or a complete shutdown, which is why the PCM and ECM are critical to vehicle operation. Replacement units are typically sourced as replacement powertrain control modules for the 2009 Lincoln MKX that match the original specifications and communication protocols.
Where the PCM Is Located and What Replacement Involves
Both the PCM and ECM are mounted within the engine compartment, usually attached to the firewall or near the intake manifold for easy sensor access. Access typically requires removal of a protective cover and disconnecting the main power connector. The book time for removing and reinstalling the Powertrain Control Module is listed as 0.4 hours, while the Engine Control Module follows the same 0.4‑hour guideline. After the units are secured, the technician reconnects the harnesses, ensures proper torque on mounting bolts if specified, and verifies that all related fuses are intact before proceeding to the programming step.

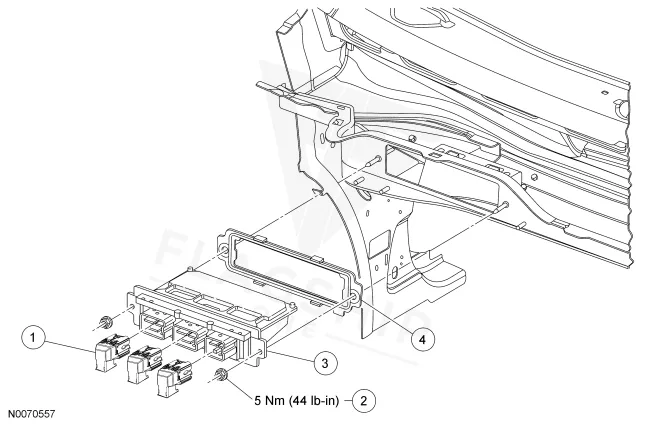

How to Reach the PCM on the 2009 Lincoln MKX
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 nuts and the PCM.
- Remove the gasket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Once the PCM or ECM is physically installed, the factory procedure calls for a relearn operation to synchronize the new unit with the vehicle’s existing sensors and actuators. The Powertrain Control Module Relearn is allocated 0.5 hours, and the Engine Control Module Relearn requires a similar 0.5‑hour period. Flagship One supplies each replacement as a VIN-programmed replacement unit that already contains the correct calibration data, so the technician can skip the VIN entry and proceed directly to the relearn steps, saving time and reducing the chance of programming errors.
Symptoms of a Failing PCM
A failing PCM or ECM in the 2009 Lincoln MKX may manifest as a complete loss of power, intermittent stalling, rough idle, or unexpected gear shifts. Drivers often report the check engine light illuminating, accompanied by diagnostic trouble codes that indicate loss of communication with the engine control network. In some cases, the vehicle may enter a reduced‑power mode to protect the drivetrain, resulting in sluggish acceleration and limited top speed. These symptoms typically point to a loss of sensor data processing or an internal fault within the control module itself.
Factory Service Bulletins Worth Knowing
Service bulletin #09-09-05 (TSB 09-09-05) addresses an issue where the instrument cluster odometer display fails to switch from metric (kilometers) to English (miles) after an ignition key cycle. The bulletin outlines a software update and a specific reset procedure to correct the display conversion problem.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-09-05 | INSTRUMENT CLUSTER ODOMETER DISPLAY UNABLE TO CHANGE – METRIC (KM) TO ENGLISH (MILES) AFTER IGN | — |
Protecting the PCM in Your 2009 Lincoln MKX
- Maintain a healthy charging system to avoid voltage fluctuations that can corrupt module memory.
- Inspect and clean ground straps and connector pins regularly to ensure solid electrical contact.
- Avoid jump‑starting the vehicle unless absolutely necessary, as high surge currents can damage electronic components.
- Promptly address any diagnostic trouble codes to prevent prolonged operation with a compromised module.
- Keep the protective covers over the PCM and ECM sealed to guard against moisture and debris.
- Use OEM‑specified fuses and relays to maintain proper circuit protection for the control units.
Frequently Asked Questions
What are the typical labor times for replacing the PCM on a 2009 Lincoln MKX?
The factory book time for removing and reinstalling the Powertrain Control Module on a 2009 Lincoln MKX is listed as 0.4 hours. This includes disconnecting the electrical harness and securing the unit in its mounting location.
Does the 2009 Lincoln MKX require a special programming step after installing a new ECM?
Yes, the Engine Control Module Relearn procedure is required after replacement and is allocated 0.5 hours of labor. The process synchronizes the new module with the vehicle’s sensor network.
Can a refurbished PCM cause the odometer display issue noted in TSB 09-09-05?
The odometer display problem is unrelated to the PCM hardware itself and is addressed by a software update described in Service Bulletin #09-09-05. A properly programmed PCM will not affect that specific display function.
How does a VIN‑programmed replacement unit simplify the repair process?
A VIN‑programmed unit arrives with the vehicle identification number already encoded, eliminating the need for the technician to enter the VIN manually during the post‑install programming steps.
What are common signs that the ECM may be failing in my 2009 Lincoln MKX?
Common indicators include rough idle, loss of power, the check engine light flashing, and diagnostic trouble codes that reference engine control communication errors.
When a PCM or ECM needs attention on a 2009 Lincoln MKX, you can choose between a brand‑new factory unit or a professionally refurbished replacement. Both options restore the vehicle’s electronic control functions, but a refurbished module from Flagship One includes the required VIN programming and has been tested to meet original specifications, offering a cost‑effective path to reliable performance.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Lincoln MKX with a lifetime warranty, free shipping and no core charge. The full Lincoln MKX module lineup covers other engine configurations as well.
Final Thoughts
If your 2009 Lincoln MKX is showing symptoms linked to its powertrain or engine control modules, addressing the issue promptly can return the vehicle to normal operation. Consider a certified replacement that meets factory standards, and you’ll be back on the road with confidence.
