2009 Ford Van Powertrain and Engine Control Module Replacement Overview
In the 2009 Ford Van, the powertrain control module (PCM) and engine control module (ECM) manage engine timing, fuel delivery, and transmission shifting. Failure of either unit can trigger a malfunction indicator lamp, cause rough idle, stalling, or loss of power, and generate diagnostic trouble codes such as P0130 and P0150.
Quick Summary
- Both PCM and ECM removal are listed at 0.5 hours of labor in the factory guide.
- The control modules sit beside the air cleaner assembly for direct factory access.
- Relearn procedures for both modules each require an additional 0.5 hours after installation.
- TSB 12-06-13 addresses MIL illumination with codes P0130 and P0150 for these engines.
When a 2009 Ford Van exhibits a persistent MIL or specific diagnostic codes, the underlying issue often lies with the vehicle’s control modules. This guide explains what the PCM and ECM do, where they are located, and what steps are needed to replace them correctly. By following the outlined process, you can restore proper engine management and avoid unnecessary downtime.
What the PCM Does in a 2009 Ford Van (E-Series)
The powertrain control module in a 2009 Ford Van orchestrates fuel injection, ignition timing, and transmission shift logic, while the engine control module focuses on sensor interpretation and emissions control. Their coordination is vital for smooth operation, and any malfunction can lead to drivability concerns. Understanding these functions helps you appreciate why a proper replacement engine computers installation matters for vehicle reliability.

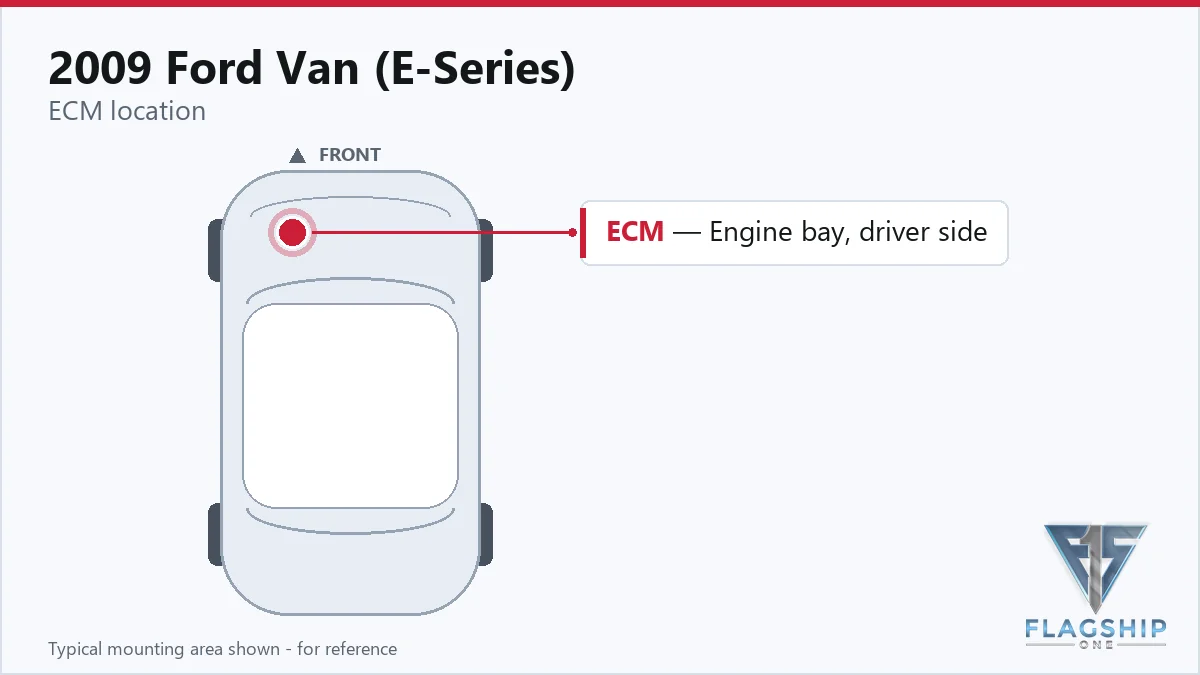

Where the PCM Is Located and What Replacement Involves
The factory removal procedure indicates that the control module is positioned next to the air cleaner assembly, providing straightforward access without extensive disassembly. Removing the unit typically requires 0.5 hours of labor, as documented in the service guide. After removal, the new module is installed in the same location, and the same amount of time is allocated for the replacement process. No additional torque specifications are provided in the available facts.
How to Reach the PCM on the 2009 Ford Van (E-Series)
- Remove the 6 pushpin retainers and the upper air deflector.
- Remove the 4 power steering reservoir bracket bolts.
- Remove the power steering fluid indicator and 3 bolts.
- Disconnect the coolant hoses from the Air Cleaner (ACL) outlet pipe.
- Remove the bolt and PCM.
- Position the power steering reservoir bracket and install the power steering indicator.
- Position the upper air deflector and install the 6 pushpin retainers.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 4.6L | 0.5 hr |
| Powertrain Control Module R&R | 5.4L | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | 4.6L | 0.5 hr |
| Engine Control Module R&R | 5.4L | 0.5 hr |
Programming Requirements After Replacement
After installing a new PCM or ECM, the factory process calls for a relearn of the control strategy, which takes another 0.5 hours per module. Flagship One supplies a a VIN-programmed replacement unit that arrives already calibrated for your vehicle, eliminating the need for separate programming steps during installation.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in a 2009 Ford Van include an illuminated malfunction indicator lamp, engine stalling, rough idle, and the appearance of diagnostic codes such as oxygen sensor low or P0150. You may also notice erratic transmission shifts or loss of power during acceleration, all of which point to a control module issue.
Factory Service Bulletins Worth Knowing
Service bulletin 12-06-13 addresses MIL activation with codes P0130 and P0150 for the 4.6L and 5.4L engines. Additionally, bulletin 09-24-03 covers a calibration update for the 6.0L diesel variant, though it does not directly affect the 2009 Ford Van’s gasoline engines.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 12-06-13 | 4.6L/5.4L – MALFUNCTION INDICATOR LAMP (MIL) ON WITH DIAGNOSTIC TROUBLE CODES (DTCS) P0130 AND | — |
| 09-24-03 | 6.0L DIESEL CALIBRATION UPDATE – VARIOUS ISSUES | — |
Protecting the PCM in Your 2009 Ford Van (E-Series)
- Maintain a healthy charging system to avoid voltage drops.
- Inspect and clean all ground connections regularly.
- Use proper jump-start techniques to prevent voltage spikes.
- Address diagnostic codes promptly before they recur.
- Ensure connector seals remain intact to keep moisture out.
Frequently Asked Questions
What are the typical labor times for replacing the PCM in a 2009 Ford Van?
The factory guide lists 0.5 hours for removal and another 0.5 hours for the relearn procedure, totaling about one hour of labor.
Can I use a used PCM in my 2009 Ford Van without reprogramming?
A used unit would still require the factory relearn steps, but a VIN-programmed replacement from Flagship One arrives pre‑configured, saving that effort.
What TSB should I reference if my 2009 Ford Van shows a MIL with code P0130?
TSB 12-06-13 specifically addresses MIL illumination with code P0130 for the 4.6L and 5.4L engines.
When the PCM or ECM fails, you can choose a repair using a refurbished unit or opt for a brand‑new Flagship One replacement. Both approaches restore the vehicle’s control logic, but the new unit arrives VIN‑programmed, eliminating extra programming steps and ensuring compatibility with your 2009 Ford Van.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Ford Van (E-Series) with a lifetime warranty, free shipping and no core charge. The full Ford Van (E-Series) module lineup covers other engine configurations as well.
Final Thoughts
Replacing the PCM or ECM in your 2009 Ford Van can resolve MIL warnings and restore smooth operation. Consider a Flagship One VIN‑programmed unit for a hassle‑free solution and get back on the road with confidence.
