2009 Ford Flex Powertrain Control Module Replacement
The Powertrain Control Module (PCM) in the 2009 Ford Flex coordinates engine and transmission functions. A faulty PCM can cause misfires, stalling, or loss of power, as it no longer communicates properly with other vehicle systems.
Quick Summary
- Powertrain Control Module replacement takes 0.9 hours.
- Relearn procedures for PCM, PCM, and EEC are 0.5 hours each.
- Repair may involve resetting the Passive Anti-Theft System (PATS).
- TSB 09-11-11 warns of water ingress in PCM connectors pre‑10/22/2008.
- VIN‑programmed units from Flagship One eliminate post‑install relearn.
When a 2009 Ford Flex develops engine or transmission symptoms, a common cause is a failing Powertrain Control Module. Replacing the PCM can restore proper engine timing, fuel delivery, and shift logic. This guide walks you through the practical steps of locating the module, the labor involved, and the factory programming that follows a swap. By understanding the PCM’s role, the replacement process, and the related service bulletin, you’ll be better equipped to keep your Flex running smoothly and avoid costly downtime.
What the PCM Does in a 2009 Ford Flex
The Powertrain Control Module in the 2009 Ford Flex manages the interaction between the engine and the transmission. It receives input from various sensors, such as throttle position and camshaft position, and uses that data to calculate fuel injection timing and shift points. The module’s firmware also governs the vehicle’s safety systems, including the Passive Anti-Theft System. 2009 Ford Flex Powertrain Control Module replacement is critical because it directly influences engine performance, emissions, and overall drivability. A malfunctioning PCM can lead to a cascade of issues, from rough idling to complete loss of engine control, making timely replacement essential for maintaining vehicle reliability.
Where the PCM Is Located and What Replacement Involves
The PCM is located under the passenger side dashboard, behind a protective cover. Removing the cover requires unscrewing the mounting bolts and disconnecting the electrical harness. The module is then lifted out and replaced with a new unit. The labor book time for this operation is 0.9 hours. After the new PCM is installed, the vehicle’s control systems are reset, and the relearn procedures for the PCM, EEC, and PATS are performed, each taking 0.5 hours.

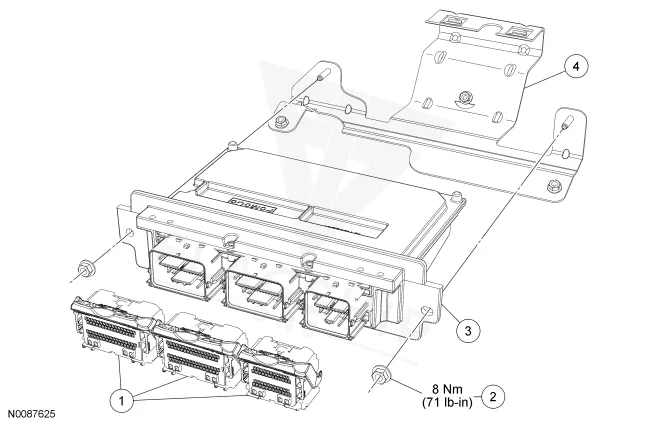

How to Reach the PCM on the 2009 Ford Flex
- Remove the cowl panel grille.
- Disconnect the 3 PCM electrical connectors.
- Remove the 2 nuts and the PCM.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 0.9 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.9 hr |
Programming Requirements After Replacement
After the PCM swap, the factory procedure requires a relearn of the Passive Anti-Theft System and the powertrain control logic. Flagship One units arrive already programmed for your vehicle’s VIN, so the relearn step is already completed. This means you can skip the manual relearn cycle and return the vehicle to service immediately. VIN-programmed replacement unit is already tuned for the 2009 Ford Flex’s specifications.
Symptoms of a Failing PCM
A failing PCM in a 2009 Ford Flex often presents with engine misfires, stalling, or a rough idle. The vehicle may also refuse to start, or the scan tool may report dead communication with the PCM. When the PCM is compromised, the engine control module may trigger trouble codes such as P2110, P2111, P2135, or P2112, indicating water intrusion or connector faults. These symptoms arise because the PCM can no longer process sensor data accurately, leading to erratic fuel and ignition timing.
Factory Service Bulletins Worth Knowing
TSB 09-11-11 addresses vehicles built before 10/22/2008 that may have water in the PCM connector, which can trigger DTCS codes P2110, P2111, P2135, or P2112. The bulletin recommends inspecting the connector for moisture and performing a PCM reset if water is detected.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-11-11 | BUILT BEFORE 10/22/2008 – DTCS P2110, P2111, P2135 OR P2112 – POSSIBLE WATER IN PCM CONNECTOR | — |
Protecting the PCM in Your 2009 Ford Flex
- Keep the charging system in good condition to prevent voltage spikes that can damage the PCM.
- Inspect and clean all ground connections regularly to ensure solid electrical contact.
- Avoid jump‑starting the vehicle with a high‑current source that could overload the PCM.
- Address any diagnostic trouble codes promptly to prevent further degradation.
- Ensure the PCM connector seal remains intact to keep moisture out.
When faced with a PCM issue in your 2009 Ford Flex, you can choose a quick repair or a refurbished replacement. A refurbished PCM can offer the same functionality as a new unit while reducing cost and waste. Both options come with a thorough diagnostic and relearn process, ensuring your Flex runs reliably again.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Ford Flex with a lifetime warranty, free shipping and no core charge. The full Ford Flex module lineup covers other engine configurations as well.
Final Thoughts
Replacing the Powertrain Control Module in a 2009 Ford Flex restores engine and transmission coordination, preventing further performance loss. Consider a refurbished PCM to maintain your vehicle’s reliability without unnecessary expense.
