2009 Chevrolet Tahoe ECM Replacement & Programming Guide
The Powertrain Control Module (PCM) and Engine Control Module (ECM) are the central computers managing your Tahoe’s 4.8L engine operation, fuel delivery, emissions, and transmission functions. Internal electrical failure from voltage spikes or component degradation is the primary failure cause.
Quick Summary
- The ECM/PCM is the central computer for the 2009 Tahoe’s 4.8L engine and transmission
- Module failure may trigger codes P0601-P1621 indicating internal memory or processor faults
- Replacement requires 1.4 hours R&R plus 0.5 hours relearn and 0.3 hours reset
- Capture ECM data with a scan tool before removal per factory procedure
- A rare TSB addresses cruise control cutout during window switch use in cold weather
If your 2009 Chevrolet Tahoe won’t start, runs poorly, or the check engine light is on with communication faults, the Engine Control Module may be the culprit. The ECM is the brain of your 4.8L powertrain, and when it fails internally, the vehicle can exhibit a range of drivability issues. This guide explains what the module does, common failure symptoms, the replacement procedure, and your options for getting back on the road.
What the PCM Does in a 2009 Chevrolet Tahoe
The Engine Control Module in your 2009 Chevrolet Tahoe serves as the primary computer for the 4.8L V8 engine and its optional replacement engine computers for the Tahoe. It manages fuel injection timing, idle air control, emission systems, and communicates with the transmission control module to determine shift points. The module contains a specialized processor and non-volatile memory that stores calibration data, adaptive learning values, and fault code information specific to your vehicle. When this internal electronics package fails, the module can no longer process sensor inputs correctly, leading to drivability concerns that often cannot be resolved with sensor replacements alone. The PCM (Powertrain Control Module) on this model integrates engine and transmission control into a single unit.

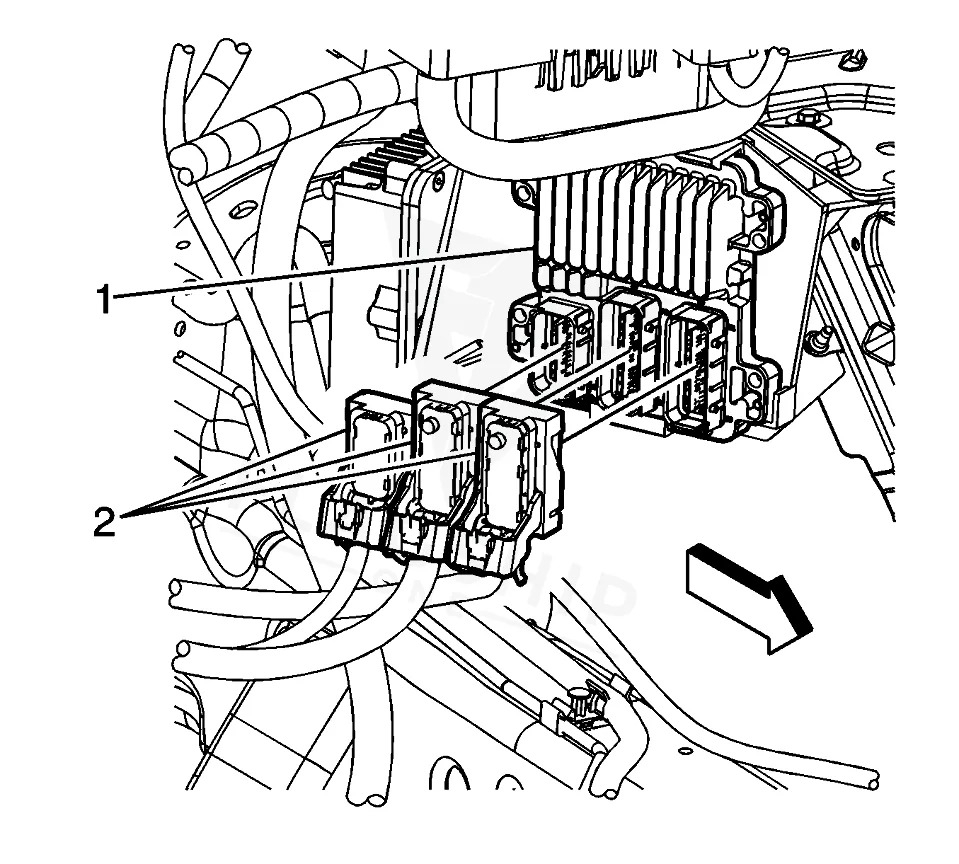

Where the PCM Is Located and What Replacement Involves
The ECM on the 2009 Chevrolet Tahoe is located behind the passenger side dashboard panel, requiring removal of the interior trim to access. The replacement procedure begins with connecting a scan tool to capture the existing ECM data before disconnection, as the factory procedure requires preserving this information. The old module is then unbolted from its mounting bracket, connectors are detached, and the new unit is installed in reverse order. Book time for R&R is 1.4 hours, with an additional 0.5 hours allocated for the relearn procedure and 0.3 hours for system reset after installation.
How to Reach the PCM on the 2009 Chevrolet Tahoe
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the battery and battery tray.
- Remove the under hood electrical center.
- Remove the ECM from the bracket.
- Position the engine wiring harness electrical connectors and engage the retainers.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
Following ECM replacement, the factory procedure requires performing a relearn procedure using a GM scan tool to calibrate idle settings, transmission adaptive values, and fuel trims to the new module. A system reset is also needed to clear stored data and allow the vehicle to adapt to the replacement computer. Flagship One units arrive as a VIN-programmed replacement unit that is pre-configured for your specific Tahoe, meaning the essential programming steps are completed before the module ships. This significantly reduces post-install time compared to a raw replacement unit requiring dealer-level programming.
Symptoms of a Failing PCM
When the ECM fails, the 2009 Chevrolet Tahoe may exhibit no-start conditions where the engine cranks but will not fire, or it may start and then stall unexpectedly. Misfire codes such as P0300 through P0308 are common, along with rough idle and hesitation under acceleration. The scan tool may fail to communicate with the module entirely, or transmission shifting may become erratic as the ECM cannot properly control shift solenoids. In some cases, the vehicle may run but display multiple unrelated fault codes due to internal memory failure within the module itself. These symptoms often develop suddenly after a voltage spike or gradually as internal components degrade over time.
Module Trouble Codes on the 2009 Chevrolet Tahoe
The 2009 Chevrolet Tahoe is documented with specific module-internal trouble codes that indicate various internal ECM failures: P0601 (memory checksum invalid), P0602 (calibration memory lost), P0603 (internal ID error), P0604 (RAM error), P062F (internal control module performance), and P1621 (transmission control module RAM fault). These codes signify that the module’s internal processor or memory has detected a fault and may require replacement rather than sensor-level repairs.
Factory Service Bulletins Worth Knowing
Factory Service Bulletin #09-08-68-001 addresses a condition where cruise control may turn off during operation on rare occasions. This bulletin specifically applies to vehicles experiencing the issue while pulling up and releasing both driver door window switches, or when activating the heated windshield washer fluid system in cold weather conditions with battery charge below 80%. The repair involves reprogramming the ECM with updated software to correct the cruise control cutout logic.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-08-68-001 | Cruise Control Turns Off During Operation (Reprogram ECM) – (Nov 13, 2009) | On rare occasions, some customers may comment that the cruise control turned off. This typically occurs during operation and while pulling up and releasing… |
Protecting the PCM in Your 2009 Chevrolet Tahoe
- Maintain proper charging system function — a weak or overcharging battery subjects the ECM to damaging voltage fluctuations
- Keep ground straps and battery connections clean and tight to ensure stable electrical reference
- Avoid jump-starting other vehicles or using booster packs incorrectly, which can send voltage spikes to the module
- Address check engine lights promptly rather than driving with active faults that may stress the module
- Inspect and preserve connector weather seals to prevent moisture intrusion that can cause internal corrosion
Frequently Asked Questions
Will any ECM work for my 2009 Chevrolet Tahoe?
No. The ECM must be matched to your specific vehicle’s VIN. A replacement unit must be programmed with your Tahoe’s unique calibration data to function properly.
Can I replace the ECM myself on a 2009 Chevrolet Tahoe?
The mechanical replacement is straightforward for experienced DIYers, but programming the new module to the vehicle requires GM-specific scan tool software that is typically only available to professional shops.
How do I know if my Tahoe needs an ECM or just a sensor?
If diagnostic trouble codes indicate module-internal failures like P0601 through P1621, or if the scan tool cannot communicate with the ECM at all, the module itself is likely faulty and requires replacement.
When your 2009 Chevrolet Tahoe requires an ECM replacement, you have two primary paths: repair the existing module or install a refurbished replacement. Flagship One offers VIN-programmed replacement units configured specifically for your Tahoe, eliminating the need for post-install programming at a dealership. This approach saves time and ensures the module is ready to run once installed.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Chevrolet Tahoe with a lifetime warranty, free shipping and no core charge. The full Chevrolet Tahoe module lineup covers other engine configurations as well.
Final Thoughts
The Engine Control Module is a critical component of your 2009 Chevrolet Tahoe’s 4.8L powertrain, and failure requires prompt attention to avoid being stranded. Whether you choose a professional repair or a pre-programmed replacement unit, understanding the procedure and symptoms helps you make informed decisions about your vehicle’s repair.
