2009 Chevrolet Silverado Hybrid Powertrain and Engine Control Module Guide
In the 2009 Chevrolet Silverado Hybrid, the powertrain control module and engine control module manage engine timing, transmission shifting, and emissions. Failure of either unit may interrupt cruise control, cause no‑start conditions, or generate communication errors, leading to reduced performance and possible safety concerns.
Quick Summary
- Powertrain and engine control modules share a common removal time of 1.4 hours.
- Relearn procedures for the modules typically require 0.5 hours after installation.
- Factory service bulletin #09-08-68-001 notes cruise‑control shutoff under specific low‑battery conditions.
- Capture ECM data with a scan tool before removal to retain calibration.
When a 2009 Chevrolet Silverado Hybrid exhibits intermittent cruise‑control loss or engine‑control warnings, the underlying cause often lies with the powertrain or engine control module. This guide explains how the modules function, what symptoms to expect, and the steps required for a proper replacement. By the end, you will understand the diagnostic clues, labor expectations, and how Flagship One’s VIN‑programmed units simplify the process.
What the PCM Does in a 2009 Chevrolet Silverado Hybrid
The powertrain control module in the 2009 Chevrolet Silverado Hybrid coordinates engine output with transmission actions, while the engine control module governs fuel injection and emissions. Both are essential for smooth acceleration, proper shifting, and reliable cruise‑control operation. Understanding their role helps you recognize why a fault can affect drivability. replacement engine computers for the Silverado are designed to meet the same specifications as the originals.

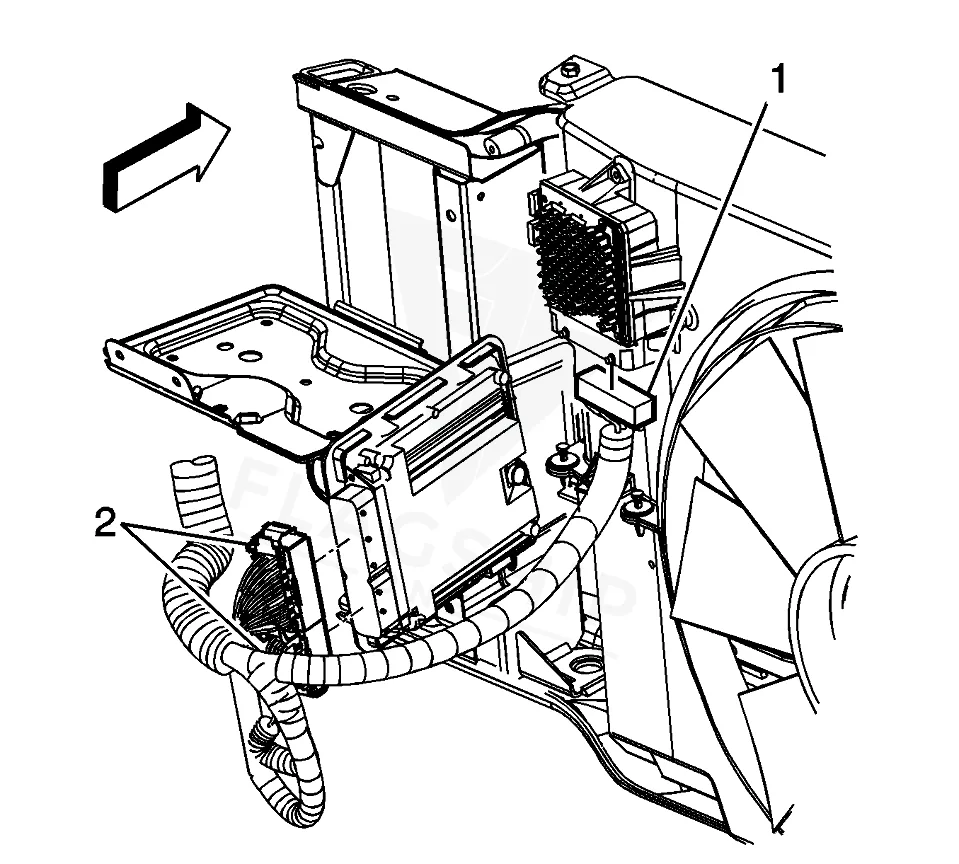

Where the PCM Is Located and What Replacement Involves
Both modules are mounted within the engine compartment and require removal of the existing unit followed by installation of a new one. The standard labor estimate for removal and installation is 1.4 hours per module. After the unit is secured, a relearn step of 0.5 hours is typically needed to synchronize the control logic with the vehicle’s systems.
How to Reach the PCM on the 2009 Chevrolet Silverado Hybrid
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Disconnect the ECM electrical.
- Release the ECM upper retaining tabs.
- Remove the ECM from the bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | Silverado 3500 HD | 1.4 hr |
| Powertrain Control Module R&R | Silverado 2500 HD | 1.4 hr |
| Powertrain Control Module R&R | Silverado 1500 | 1.4 hr |
| Powertrain Control Module Relearn | Silverado 3500 HD | 0.5 hr |
| Powertrain Control Module Relearn | Silverado 2500 HD | 0.5 hr |
| Powertrain Control Module Relearn | Silverado 1500 | 0.5 hr |
| Engine Control Module R&R | Silverado 3500 HD | 1.4 hr |
| Engine Control Module R&R | Silverado 2500 HD | 1.4 hr |
Programming Requirements After Replacement
Factory procedure calls for capturing all ECM data with a scan tool before the unit is removed, then re‑programming the new module after installation. Flagship One supplies a VIN‑programmed replacement unit, so the required data capture and post‑install programming are already completed. a VIN‑programmed replacement unit eliminates the need for additional field programming steps.
Symptoms of a Failing PCM
Common signs of a failing module in the 2009 Silverado Hybrid include loss of power‑train control, stalling during acceleration, and cruise‑control disengagement. You may also see communication errors on the scan tool or receive trouble codes such as Powertrain control module processor fault. These symptoms often appear together with erratic shifting or a no‑start condition.
Module Trouble Codes on the 2009 Chevrolet Silverado Hybrid
The following internal trouble codes have been documented for the 2009 Chevrolet Silverado Hybrid:
Factory Service Bulletins Worth Knowing
Service bulletin #09-08-68-001, dated November 13, 2009, advises that cruise control may turn off during operation when both driver‑door window switches are pulled or the heated windshield washer fluid is activated in cold weather, especially if battery charge is below 80%. The bulletin recommends reprogramming the ECM to address the issue.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 09-08-68-001 | Cruise Control Turns Off During Operation (Reprogram ECM) – (Nov 13, 2009) | On rare occasions, some customers may comment that the cruise control turned off. This typically occurs during operation and while pulling up and releasing… |
Protecting the PCM in Your 2009 Chevrolet Silverado Hybrid
- Maintain a healthy charging system to ensure adequate battery voltage.
- Keep ground straps and connector contacts clean and free of corrosion.
- Avoid voltage spikes from jump‑starts or improper battery connections.
- Address any stored trouble codes promptly before they recur.
- Inspect connector seals regularly to prevent moisture intrusion.
Frequently Asked Questions
Can I replace the powertrain control module on my 2009 Silverado Hybrid myself?
The module can be removed and installed with a 1.4‑hour labor estimate, but you must follow the relearn procedure and ensure the new unit is VIN‑programmed to avoid additional programming steps.
What should I do if the cruise control stops working after a battery replacement?
Check for the conditions described in bulletin #09-08-68-001; if the issue persists, a reprogram of the ECM may be required, which Flagship One’s VIN‑programmed units already include.
Do I need special tools to capture ECM data before removal?
A compatible scan tool is required to read and store the ECM data prior to removal, as outlined in the factory programming notes.
When the powertrain or engine control module fails, you can choose between a new factory‑spec unit or a refurbished replacement that meets the original specifications. Both options restore the vehicle’s control functions, but a VIN‑programmed replacement from Flagship One removes the need for additional field programming, simplifying the repair process for your 2009 Silverado Hybrid.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Chevrolet Silverado Hybrid with a lifetime warranty, free shipping and no core charge. The full Chevrolet Silverado Hybrid module lineup covers other engine configurations as well.
Final Thoughts
Replacing a faulty module in your 2009 Chevrolet Silverado Hybrid can restore normal operation and prevent further drivability issues. Consider a VIN‑programmed replacement to streamline the repair and get back on the road with confidence.
