2009 Chevrolet Malibu Hybrid PCM and ECM Replacement Guide
In the 2009 Malibu Hybrid, the powertrain control module (PCM) and engine control module (ECM) manage fuel delivery, ignition timing, and hybrid system coordination. Failure of either unit may cause loss of power, stalling, or error codes, and can disrupt communication with diagnostic equipment.
Quick Summary
- PCM removal typically requires 1.4 hours of labor.
- ECM replacement also averages 1.4 hours, plus a 0.3‑hour reset.
- Both modules need a relearn step of about half an hour after installation.
- Capture ECM data before removal to preserve calibration information.
When a 2009 Chevrolet Malibu Hybrid begins to exhibit no‑start conditions, rough idle, or unexpected shifting, the underlying cause often points to the vehicle’s control computers. The powertrain control module and engine control module act as the brain for the gasoline engine and hybrid system, translating sensor inputs into precise commands for fuel, spark, and electric assistance. Understanding how these modules function, what the factory repair process entails, and how a VIN‑programmed replacement from Flagship One can simplify the job helps you decide between a repair and a refurbished unit. This guide walks you through the module roles, typical labor requirements, programming steps, common symptoms, relevant service bulletins, and best‑practice prevention tips.
What the PCM Does in a 2009 Chevrolet Malibu Hybrid
The powertrain control module in the 2009 Malibu Hybrid coordinates the gasoline engine with the electric motor, regulating torque distribution, shift timing, and emissions compliance. It receives data from the throttle position sensor, vehicle speed sensor, and hybrid battery management system, then commands the transmission and fuel injectors accordingly. The engine control module focuses on engine‑specific parameters, controlling ignition timing, fuel injection, and emissions controls while also monitoring the hybrid battery state. Both modules share diagnostic communication over the vehicle’s data bus, allowing a scan tool to read fault codes and perform calibrations. A malfunction in either unit can disrupt power delivery, cause unexpected limp‑mode operation, or trigger multiple error codes. Proper operation of these computers is essential for smooth acceleration, efficient fuel use, and reliable hybrid system integration. replacement engine control modules for the 2009 Malibu Hybrid ensure that the vehicle meets factory specifications after a failed component is swapped.

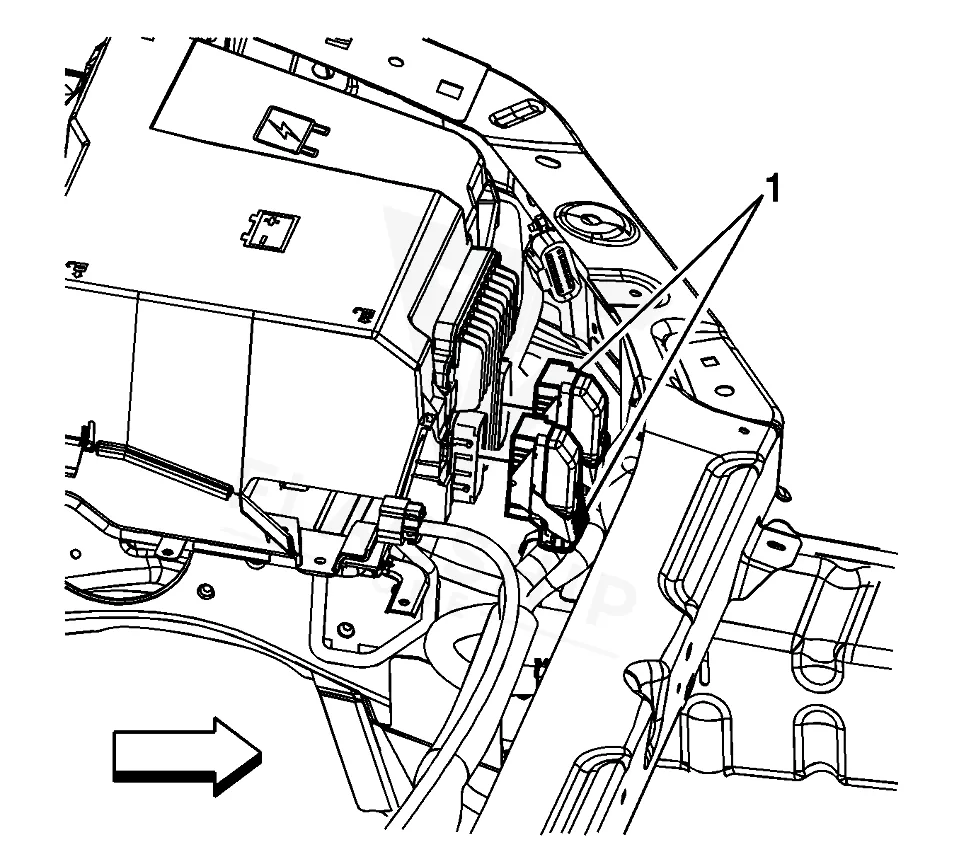

Where the PCM Is Located and What Replacement Involves
The PCM and ECM are mounted within the engine compartment of the 2009 Malibu Hybrid and are accessed by disconnecting the battery and removing a series of fasteners. According to the labor guide, removing and reinstalling the powertrain control module requires approximately 1.4 hours, followed by a 0.5‑hour relearn procedure to reestablish communication with the vehicle’s networks. The engine control module follows the same removal time of 1.4 hours, with an additional 0.3‑hour reset step to clear internal memory after installation. Once the module is physically secured, a 0.5‑hour relearn is also needed for the ECM to synchronize with the hybrid control strategy.
How to Reach the PCM on the 2009 Chevrolet Malibu Hybrid
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Slide the lever locks to the up position in order to release the engine wiring harness.
- Disconnect the engine wiring harness electrical connectors from the engine control.
- Release the retaining tab located in the battery tray using a small screwdriver or.
- Remove the ECM by lifting upward after releasing the tab.
- Slide the ECM into the bracket on the battery tray.
- Slide the lever locks to the down position in order to engage the engine wiring harness.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
Factory service procedures dictate that, before the ECM is removed, a scan tool must capture the existing module data to preserve calibration settings. After the new unit is installed, special equipment and the exact program and calibration file for the 2009 Malibu Hybrid are required to complete the reprogramming, followed by a relearn of the control strategies. Flagship One supplies a a VIN-programmed replacement unit that arrives with the correct software already loaded, eliminating the need for on‑site data capture and calibration steps.
Symptoms of a Failing PCM
Typical signs of a failing PCM or ECM in the 2009 Malibu Hybrid include a complete no‑start condition, rough idle, stalling at low speeds, and erratic gear shifts. Drivers may also notice a loss of hybrid assistance, reduced fuel efficiency, or the illumination of the check engine light. Diagnostic trouble codes often appear, such as processor communication error or other processor‑related codes, indicating internal module failures. In some cases, the scan tool may lose communication entirely, suggesting a loss of power or ground to the control unit.
Module Trouble Codes on the 2009 Chevrolet Malibu Hybrid
The 2009 Malibu Hybrid can generate several internal trouble codes that pinpoint processor and communication issues within its control modules. The following list captures the codes documented for this model:
Factory Service Bulletins Worth Knowing
Service bulletin PI0777, dated August 3 2012, provides an oil life monitor calibration update that requires reprogramming the ECM. Bulletin 08296, issued September 15 2008, addresses an ECM diagnostic trouble code P1400 and includes an OBD enhancement calibration that also necessitates ECM reprogramming.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Oil Life Monitor Calibration Update – Reprogram Engine Control Module – (Aug 3, 2012) | — |
| — | Service Update for Inventory and Customer Vehicles-ECM DTC P1400 OBD Enhancement Calibration-Re | — |
Protecting the PCM in Your 2009 Chevrolet Malibu Hybrid
- Maintain a healthy charging system to ensure stable voltage for the modules.
- Inspect and clean all ground connections and connector pins regularly.
- Avoid using jump‑start equipment that can introduce voltage spikes to the 12 V system.
- Address any diagnostic codes promptly to prevent prolonged module stress.
- Keep connector seals intact to protect against moisture intrusion.
- Limit aftermarket electrical accessories that draw power directly from the battery.
Frequently Asked Questions
What labor time is typically required to replace the PCM on a 2009 Chevrolet Malibu Hybrid?
The factory book time lists about 1.4 hours for removal and installation, plus an additional 0.5 hour for the relearn procedure.
Do I need special equipment to reprogram the ECM after replacement in a 2009 Malibu Hybrid?
Yes, the factory procedure requires the correct program and calibration file, as well as a scan tool capable of capturing the original data before removal.
Can a VIN‑programmed replacement from Flagship One eliminate the need for on‑site reprogramming?
Flagship One units arrive pre‑loaded with the proper software for the vehicle, so the typical reprogramming steps are already completed.
What are common error codes associated with PCM or ECM failure in this model?
Codes such as P0601, P0602, P0603, P0604, P062F, and P1621 have been reported for internal processor and communication faults.
Is there a specific service bulletin that addresses ECM calibration for the 2009 Malibu Hybrid?
Yes, bulletin PI0777 from August 3 2012 details an oil life monitor calibration update that requires ECM reprogramming.
When the PCM or ECM in your 2009 Chevrolet Malibu Hybrid fails, you can choose a factory‑approved repair or a refurbished, VIN‑programmed replacement. Both options restore the vehicle’s performance, but a Flagship One unit arrives ready for immediate use, saving you the time and tools needed for on‑site programming.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2009 Chevrolet Malibu Hybrid with a lifetime warranty, free shipping and no core charge. The full Chevrolet Malibu Hybrid module lineup covers other engine configurations as well.
Final Thoughts
The 2009 Chevrolet Malibu Hybrid relies on its PCM and ECM to manage both gasoline and hybrid functions. Whether you repair the original or install a Flagship One replacement, ensuring proper installation and programming will get your vehicle back on the road with confidence.
