2008 Cadillac STS-V ECM/PCM Replacement & Programming Guide
The engine control module on your 2008 Cadillac STS-V serves as the primary computer governing the 4.4L supercharged V8. This unit manages fuel delivery, ignition timing, variable valve timing, and emissions systems through continuous sensor input. Internal memory faults like P0601, P0602, and P0603 often indicate module degradation requiring replacement rather than repair.
Quick Summary
- The 2008 Cadillac STS-V ECM operates the 4.4L supercharged engine under all driving conditions.
- Module-internal fault codes such as P0601 signal internal failure, not external sensor issues.
- Factory procedure requires capturing ECM data with a scan tool before removal.
- The 4.4L engine ECM replacement book time is 1.8 hours, plus relearn procedures.
- ESD-sensitive connectors require careful handling during installation.
Engine control module failures on the 2008 Cadillac STS-V can produce frustrating symptoms ranging from no-start conditions to intermittent stalling. Your 4.4L supercharged V8 depends on this computer to coordinate fuel injection, ignition timing, and supercharger operation. This guide explains how the ECM functions, what failure looks like, and what replacement involves for your specific vehicle. You will learn the factory-recommended procedures, understand why certain codes indicate module replacement rather than sensor repair, and see why purchasing a pre-programmed replacement unit may streamline your repair. The goal is to help you make an informed decision when your STS-V exhibits these symptoms.
What the PCM Does in a 2008 Cadillac STS-V
The engine control module in your 2008 Cadillac STS-V acts as the central nervous system for the 4.4L Northstar supercharged V8. It receives data from dozens of sensors including mass airflow, crankshaft position, camshaft position, and intake air temperature to calculate optimal fuel delivery and spark advance for every driving situation. This module directly controls the supercharger’s bypass valve and manages the Active Fuel Management system on the Northstar architecture. Because the supercharged application demands precise boost management, the ECM must integrate throttle position data with boost pressure readings to prevent detonation. When this module fails internally, you may see one of several module-internal fault codes rather than sensor-related faults. Replacement units for the STS-V are available as pre-programmed assemblies, though verifying VIN compatibility remains essential. Understanding what this computer does helps you recognize why certain symptoms point directly to module failure rather than wiring or sensor issues.
Flagship One keeps Cadillac STS-V replacement engine computers in stock for exactly this failure pattern.
What Replacing the PCM Involves

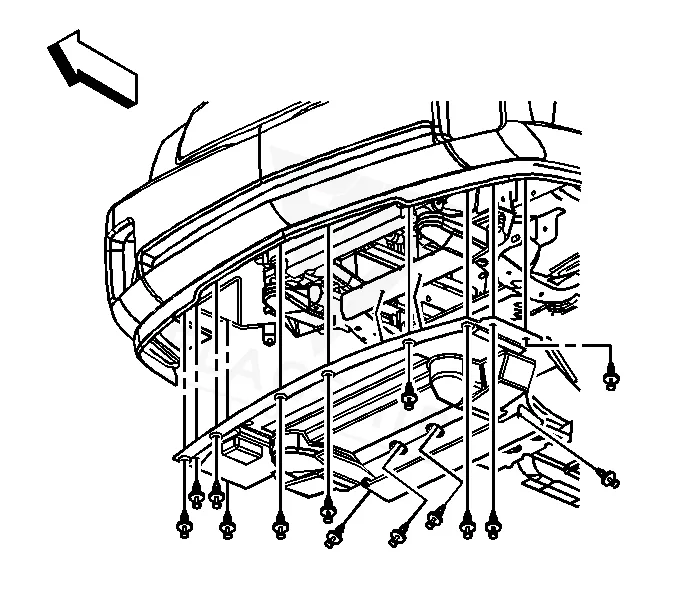

How to Reach the PCM on the 2008 Cadillac STS-V
- Remove any debris from around the control module connector.
- Disconnect the battery negative cable.
- Raise and support the vehicle.
- Remove the front air deflector.
- Disconnect the ECM electrical connectors.
- Remove the ECM mounting nuts.
- Remove the ECM from the vehicle.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 3.6L | 1.5 hr |
| Powertrain Control Module R&R | 4.4L | 1.8 hr |
| Powertrain Control Module R&R | 4.6L | 1.8 hr |
| Engine Control Module R&R | 3.6L | 0.9 hr |
| Engine Control Module R&R | 4.6L | 1.8 hr |
| Engine Control Module R&R | 4.4L | 1.8 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
The factory procedure for your 2008 Cadillac STS-V requires capturing ECM data with a scan tool before removing the original module. This captured information must then be restored into the replacement ECM as part of the reinstallation process. After installing a new module, the technician must perform the ECM relearn procedure to allow the powertrain control system to adapt to the new computer. These steps ensure that vehicle-specific calibration data and learned values transfer to the replacement unit. Flagship One units arrive VIN-programmed specifically for your STS-V application, which means the critical calibration data may already be present at the time of installation. This pre-programming can eliminate certain post-installation steps that would otherwise require dealer-level equipment or additional scan tool procedures.
Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.
Symptoms of a Failing PCM
Engine control module failures on the 2008 Cadillac STS-V typically manifest as complete communication loss or stored fault codes indicating internal faults. Common symptoms include a no-start condition where the starter engages but the engine fails to fire, intermittent stalling that occurs without warning during driving, and multiple misfire codes appearing simultaneously across cylinders. Some owners report that the check engine light illuminates followed by a sudden loss of throttle response. Diagnostic scans may show the ECM unable to communicate or multiple module-internal codes stored in memory. If you see P0601, internal memory checksum error, this typically indicates the module itself has failed rather than an external circuit problem. Other related codes like P0602, P0603, P0604, P062F, and P1621 all point toward internal electronic faults within the control unit that necessitate replacement rather than sensor or wiring repairs.
Module Trouble Codes on the 2008 Cadillac STS-V
The 2008 Cadillac STS-V may exhibit module-internal trouble codes that directly indicate engine control module failure. These codes specifically reference internal memory, checksum, or processor issues within the ECM itself rather than circuit faults to external components.
Factory Service Bulletins Worth Knowing
Factory service bulletin number 10287C addresses premature timing chain wear on certain applications, which involves reprogramming the engine control module as part of the remedy. While this bulletin relates to ECM programming rather than replacement due to failure, it demonstrates that the factory recognizes the importance of ECM software in managing timing chain wear. Your 2008 Cadillac STS-V may be affected by related service campaigns depending on production date and repair history. Checking with a Cadillac dealer for open service campaigns can reveal whether your vehicle has received the latest ECM calibration update.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Customer Satisfaction – Premature Timing Chain Wear-Reprogram Engine Control Module – (Apr 13, | — |
Protecting the PCM in Your 2008 Cadillac STS-V
- Maintain healthy charging system voltage to prevent module power supply stress
- Keep battery terminals clean and corrosion-free to ensure stable voltage to the ECM
- Avoid jump-starting the vehicle incorrectly, as voltage spikes can damage sensitive electronics
- Address any check engine light or driveability codes promptly before they worsen
- Ensure wiring harness connectors remain sealed and properly latched during repairs
- Use a battery maintainer rather than trickle chargers when storing the vehicle for extended periods
Frequently Asked Questions
Will any used ECM work on my 2008 Cadillac STS-V?
The replacement ECM must be compatible with your specific VIN and the 4.4L supercharged engine application. Using an incorrect module may result in drivability issues or prevent the engine from starting entirely.
Can I replace the ECM myself on my STS-V?
The physical replacement involves standard tools and moderate mechanical skill, but capturing the existing data and performing the relearn procedure typically requires a professional-grade scan tool and proper factory procedures.
Why do I see multiple module-internal codes instead of sensor codes?
When the ECM experiences internal electronic failure, it may set several related fault codes indicating memory or processor issues. This pattern of codes appearing together often confirms module replacement is necessary rather than chasing individual sensor faults.
When your 2008 Cadillac STS-V displays module-internal fault codes, you face a choice between repairing the existing unit or replacing it with a refurbished or new assembly. Repair success on internally failed modules is unpredictable, and the diagnostic time involved may exceed the cost of a quality replacement unit. A pre-programmed replacement ECM arrives ready to install on your 4.4L application, potentially eliminating programming delays. Evaluate whether the added convenience and warranty coverage justify the investment compared to sourcing a used unit that may have unknown history.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2008 Cadillac STS-V with a lifetime warranty, free shipping and no core charge. The full Cadillac STS-V module lineup covers other engine configurations as well.
Final Thoughts
The 2008 Cadillac STS-V depends on a properly functioning engine control module to manage its 4.4L supercharged V8 under all conditions. Recognizing the symptoms of ECM failure, understanding the factory cautions around data capture, and knowing what replacement involves helps you approach this repair with confidence. Whether you choose dealer service or an independent shop, ensure they follow proper procedures for your specific vehicle application.
