2007 Ford Five Hundred PCM Replacement: Complete Guide

If your 2007 Ford Five Hundred runs poorly, stalls unexpectedly, or won’t start at all, the powertrain control module may be the culprit. This vehicle’s PCM is a sophisticated computer that manages virtually every aspect of engine and transmission operation, and when it fails, the results range from frustrating driveability symptoms to complete immobilization. In this guide, you’ll learn how PCM failure manifests in this specific model, what the replacement process involves, and whether repair or replacement makes more sense for your situation. We cover the factory-recommended procedures, the documented trouble codes, and the service bulletins that apply to the Five Hundred’s powertrain control system. Whether you’re diagnosing a current problem or planning ahead, this information helps you understand what to expect from the repair process.

What the PCM Does in a 2007 Ford Five Hundred

The powertrain control module in your 2007 Ford Five Hundred is the primary computer governing the 3.0L V6 engine and the AISIN automatic transmission. Unlike simpler engine computers of earlier decades, this module handles multiple critical functions simultaneously: it calculates fuel injector pulse width based on inputs from dozens of sensors, controls ignition timing within tight tolerances, manages the variable valve timing system, monitors emissions control components, and coordinates shift points with the transmission control unit. The PCM also stores the vehicle’s VIN and the Passive Anti-Theft System (PATS) security keys, making it a central piece of the car’s identity. When this module experiences internal failure—often indicated by codes P0601 through P0606—the processor or memory becomes corrupted, and the module can no longer reliably perform these calculations. Heat exposure, voltage spikes from jump-starts or battery disconnection, and age-related capacitor degradation are common culprits. For Ford Five Hundred owners, replacement engine computers for the Five Hundred are available as either new or refurbished units, each with different implications for programming requirements and long-term reliability.

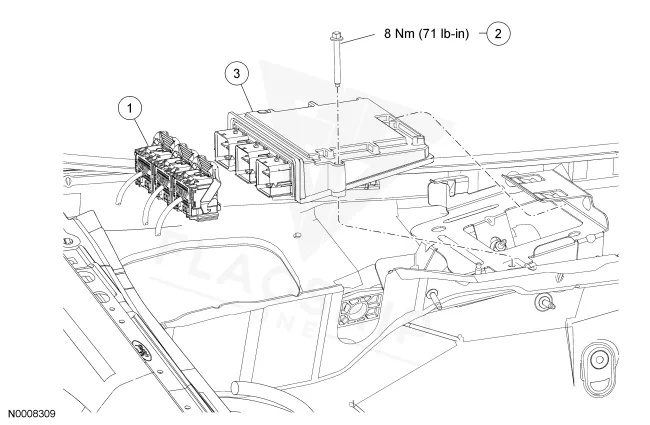

Where the PCM Is Located and What Replacement Involves

The PCM on the 2007 Ford Five Hundred is located in the engine compartment, mounted on the left front fender well area behind the battery. Access requires removing the battery and its tray to reveal the module’s mounting bracket. The replacement process involves disconnecting the battery first—as a safety precaution and to prevent voltage spikes that could damage the new module—then unplugging the three large harness connectors from the old PCM. These connectors use a locking tab design that requires releasing the tabs before pulling the connector free. The module itself is held in place with three or four bolts; note the exact bolt locations for reinstallation. Installation is the reverse of removal, with careful attention to connector seating and bolt torque specifications. Book time for the R&R procedure is 1.4 hours, with an additional 0.5 hour for the powertrain control system diagnosis and testing that verifies the new module is functioning correctly. After installation, the relearn procedure allows the PCM to adapt to your specific engine’s characteristics.

Programming Requirements After Replacement

After installing a replacement PCM in your 2007 Ford Five Hundred, the factory procedure requires reprogramming the Passive Anti-Theft System (PATS) to establish communication between the new module and the vehicle’s security system. Without this step, the PATS system will prevent the engine from starting, even with a fully functional replacement module. The PATS reprogramming process requires specialized dealer-level scan tools or equivalent aftermarket programming equipment capable of writing the security keys to the new module. This is distinct from general PCM relearning, which allows the engine control system to optimize fuel delivery and other parameters based on your specific engine’s characteristics. However, when you purchase from Flagship One, a VIN-programmed replacement unit arrives with your specific VIN already programmed into the module. This means the PATS keys and vehicle identification are pre-loaded at the factory, so the installation process is simplified to basic R&R without requiring dealer programming equipment or additional programming steps.

Symptoms of a Failing PCM

PCM failure in the 2007 Ford Five Hundred typically announces itself through several recognizable patterns. The most dramatic symptom is a no-start condition where the engine cranks normally but won’t fire—the PATS light may flash rapidly indicating a security communication failure between the key and the module. Other drivers report intermittent stalling, particularly at idle or during low-speed maneuvers, where the engine suddenly dies and restarts normally after a cool-down period. Misfire codes (P0300 series) frequently accompany PCM problems because the module miscalculates fuel delivery or ignition timing. In some cases, scan tools cannot communicate with the PCM at all, or communication is sporadic—a sign of internal processor failure. Shifting complaints are also common, as the Five Hundred’s AISIN transmission relies heavily on PCM input for shift firmness and timing; harsh shifting or delayed engagement may point to powertrain control issues rather than mechanical transmission failure. The presence of internal memory check sum error codes specifically indicates the PCM’s internal processor has detected corrupted memory, which often progresses to complete failure if not addressed.

Module Trouble Codes on the 2007 Ford Five Hundred

The 2007 Ford Five Hundred documents several module-internal trouble codes that point specifically to powertrain control module failure rather than sensor or wiring issues. These codes indicate various forms of internal processor or memory malfunction. When these codes appear alongside drivability symptoms, replacement of the PCM is typically required rather than repair, as the module’s internal electronics have failed.

Factory Service Bulletins Worth Knowing

Two factory service bulletins apply to common concerns with the 2007 Ford Five Hundred’s powertrain system. TSB #08-09-07 addresses diagnostic trouble codes P0106, P0109, P2111, P2112, and P2072 with the malfunction indicator lamp illuminated—conditions that can stem from PCM calibration issues or sensor interpretation errors. TSB #08-24-01 covers AISIN transmission harsh shifting complaints occurring at mileage above 20,000 miles with no stored diagnostic trouble codes, suggesting the transmission control logic may need updating or the PCM may require relearning to restore normal shift quality. These bulletins indicate that Ford acknowledged drivability concerns specific to this model, and addressing them may involve PCM updates or reprogramming as part of the repair procedure.

Protecting the PCM in Your 2007 Ford Five Hundred

• Maintain your vehicle’s charging system—keep battery terminals clean and tight, and replace the battery before it fails completely to avoid voltage drop that can stress the PCM
• Avoid jump-starting if possible; if necessary, connect jumper cables correctly (positive to positive, negative to ground point) to minimize voltage spike exposure to the module
• Keep all PCM and sensor connectors dry and intact—inspect engine compartment wiring harnesses periodically for damaged boots or corroded pins
• Address check engine light codes promptly—ignoring diagnostic trouble codes allows underlying issues to worsen and may mask developing PCM problems
• Use quality fuel and keep the intake system clean to reduce the workload on the PCM’s adaptive learning capabilities
• When disconnecting the battery for any reason, allow a few minutes before reconnecting to let vehicle systems fully discharge

If your 2007 Ford Five Hundred has been diagnosed with PCM failure or you’re experiencing the symptoms described above, you have two primary repair paths. Replacement with a new OEM module ensures fresh components but requires dealer programming and costs significantly more. A refurbished replacement from a reputable supplier like Flagship One offers a cost-effective alternative, and units pre-programmed with your VIN eliminate the programming hassle. Consider your budget, the module’s warranty coverage, and whether you have access to programming equipment when deciding which route makes sense for your Five Hundred.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 Ford Five Hundred with a lifetime warranty, free shipping and no core charge. The full Ford Five Hundred module lineup covers other engine configurations as well.

Final Thoughts

The powertrain control module in your 2007 Ford Five Hundred is a critical component that, when failed, can leave your vehicle stranded or running poorly. Understanding the symptoms, the replacement process, and the programming requirements helps you make informed decisions about the repair. Whether you choose a new or refurbished replacement, addressing PCM failure promptly restores your vehicle’s reliability and drivability.
