2007 Chevrolet Monte Carlo 3.5L ECM Replacement Guide
The engine control module (ECM) in your 2007 Chevrolet Monte Carlo 3.5L manages fuel delivery, ignition timing, and emissions controls. Failure can cause no-start, stalling, poor performance, and trigger internal trouble codes such as P0601.
Quick Summary
- The factory book time for ECM removal and replacement on the 3.5L is 1.1 hours, plus 0.5 hours for a relearn procedure.
- Before removing the ECM, the factory procedure requires using a scan tool to capture the module’s data for later restoration into the new unit.
- A separate ECM reset procedure is listed at 0.3 hours, though the full relearn takes 0.5 hours.
- Service bulletin #06162C covers a reprogramming update for the E85 Virtual Flex Fuel Sensor (VFFS) on this vehicle.
- The ECM is located next to the air cleaner assembly, following the factory removal procedure.
If your 2007 Chevrolet Monte Carlo with the 3.5L engine is experiencing no-start conditions, intermittent stalling, or check-engine lights with internal module codes, the engine control module (ECM) may be failing. The ECM is the central computer that controls fuel injection, spark timing, and emissions systems. This guide explains what the ECM does in your Monte Carlo, common failure symptoms, the factory-recommended replacement procedure, and the programming steps required after installation. You will also learn how a pre-programmed replacement unit can eliminate the need for dealer-level programming, saving time and effort.
What the PCM Does in a 2007 Chevrolet Monte Carlo
The engine control module (ECM) in your 2007 Chevrolet Monte Carlo 3.5L is the primary computer that manages engine operation. It receives input from sensors such as the oxygen sensor, throttle position sensor, and crankshaft position sensor, then adjusts fuel injector pulse width, ignition timing, and idle speed to maintain performance and emissions compliance. The ECM also communicates with the transmission control module and other systems via the vehicle’s data bus. When the ECM fails, the engine may not start, run poorly, or set diagnostic trouble codes. For this vehicle, replacement engine computers for the Monte Carlo are available that match the original specifications, ensuring proper fit and function.

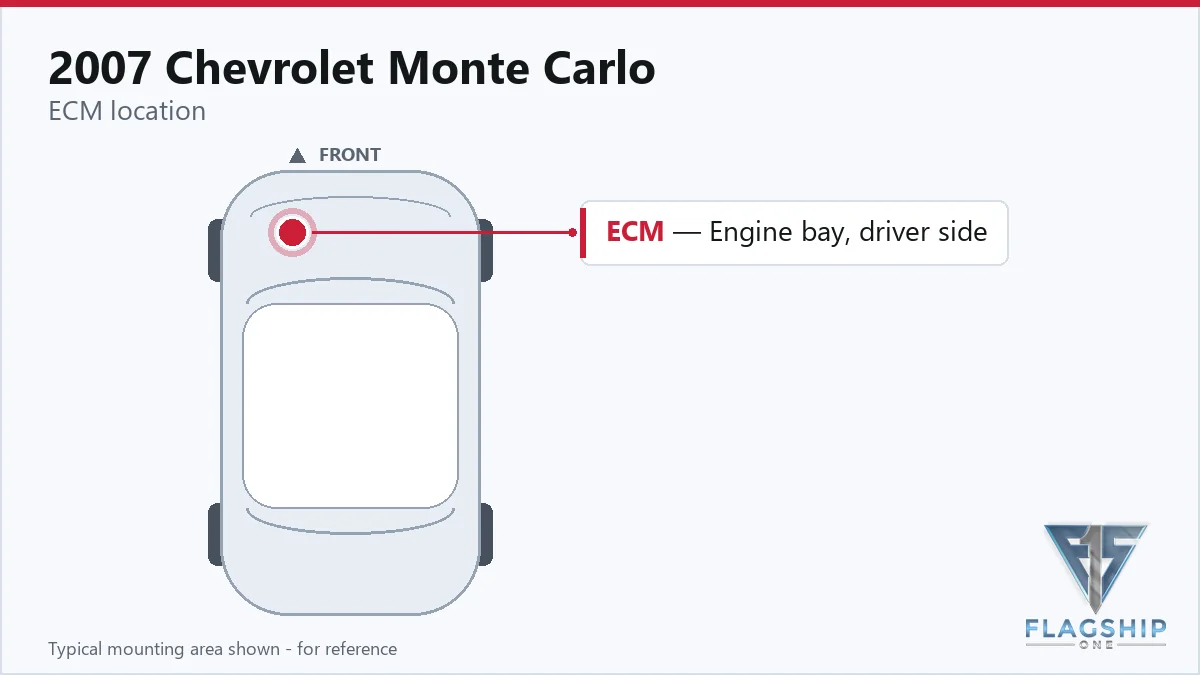

Where the PCM Is Located and What Replacement Involves
The factory removal procedure for the ECM on the 2007 Chevrolet Monte Carlo 3.5L reaches the control module next to the air cleaner assembly. This location is under the hood, typically on the driver’s side near the air filter housing. Replacing the ECM involves disconnecting the battery, removing the air cleaner duct or housing for access, unbolting the module, and disconnecting the wiring harness. The book time for ECM removal and replacement is 1.1 hours. After installation, a relearn procedure is required, listed at 0.5 hours, and a separate reset procedure is listed at 0.3 hours. No torque specifications are provided in the available facts.
How to Reach the PCM on the 2007 Chevrolet Monte Carlo
- Remove any debris from around the control module connector.
- Disconnect the negative battery cable.
- Remove the left front inner fender brace.
- Remove the air cleaner assembly.
- Disconnect the ECM electrical connectors.
- Remove the ECM from the air cleaner lower housing.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Powertrain Control Module R&R | 3.5L | 1.1 hr |
| Powertrain Control Module R&R | 5.3L | 1.1 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.1 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
Programming Requirements After Replacement
The factory procedure for the 2007 Chevrolet Monte Carlo 3.5L requires that before removing the ECM, you use a scan tool to capture the module’s data. This captured data must then be restored into the new ECM after installation. Additionally, the ignition must be turned off when installing or removing ECM connectors to prevent component damage. Flagship One provides a VIN-programmed replacement unit that arrives with the correct calibration already loaded, so the factory data-capture and restore steps are already completed. This means you can install the module and, after a basic relearn, have the vehicle running without dealer-level programming.
Symptoms of a Failing PCM
Common failure symptoms of the ECM in the 2007 Chevrolet Monte Carlo 3.5L include a no-start condition where the engine cranks but does not fire, intermittent stalling while driving, and misfire or fuel-trim codes that do not clear. You may also experience dead scan-tool communication, where a diagnostic tool cannot connect to the ECM, or erratic transmission shifting because the ECM controls shift points. One specific internal fault documented for this vehicle is anchor text which indicates an internal control module memory error. Other symptoms can include poor fuel economy, hesitation, and the check-engine light illuminating with module-related codes.
Module Trouble Codes on the 2007 Chevrolet Monte Carlo
The following diagnostic trouble codes are documented as module-internal faults for the 2007 Chevrolet Monte Carlo 3.5L ECM. These codes indicate problems within the control module itself rather than external sensors or circuits:
Factory Service Bulletins Worth Knowing
Service bulletin #06162C, dated September 12, 2007, applies to the 2007 Chevrolet Monte Carlo. This bulletin is a service update for inventory and customer vehicles regarding the E85 Virtual Flex Fuel Sensor (VFFS) update. It involves reprogramming the ECM to properly detect and adjust for E85 fuel blends. If your vehicle is equipped for flex-fuel operation and you are experiencing related driveability issues, this update may be applicable. The bulletin does not address other ECM failure modes.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| — | Service Update for Inventory and Customer Vehicles-E85 Virtual Flex Fuel Sensor (VFFS) Update-R | — |
Protecting the PCM in Your 2007 Chevrolet Monte Carlo
- Maintain the charging system in good condition; voltage spikes from a failing alternator can damage the ECM.
- Keep all engine and chassis grounds clean and tight, as poor grounds can cause erratic ECM behavior.
- Avoid jump-starting the vehicle with a running donor vehicle; use a battery charger or follow the manual’s jump-start procedure to prevent voltage surges.
- Address any diagnostic trouble codes promptly, especially module-internal codes like P0601, before they lead to a no-start condition.
- Inspect the ECM connector seals and the module housing for moisture intrusion, which can corrode pins and cause intermittent failures.
Frequently Asked Questions
What is the book time for replacing the ECM on a 2007 Chevrolet Monte Carlo 3.5L?
The factory book time for ECM removal and replacement is 1.1 hours. An additional 0.5 hours is listed for the relearn procedure, and a separate reset procedure is listed at 0.3 hours.
Do I need to capture data before removing the ECM on my 2007 Monte Carlo?
Yes, the factory procedure requires using a scan tool to capture the ECM data before removal. This data must then be restored into the new ECM after installation. Flagship One’s pre-programmed units arrive with the correct calibration, so this step is already handled.
What does TSB #06162C cover for the 2007 Chevrolet Monte Carlo?
TSB #06162C is a service update for the E85 Virtual Flex Fuel Sensor (VFFS) system. It involves reprogramming the ECM to properly handle E85 fuel blends. This bulletin applies to inventory and customer vehicles and was released on September 12, 2007.
When your 2007 Chevrolet Monte Carlo 3.5L ECM fails, you have two main options: have a shop repair the original module or replace it with a refurbished unit. Repairing the original may be possible for some internal faults, but replacement is often more reliable. A pre-programmed replacement ECM from Flagship One arrives ready to install, eliminating the need for dealer-level programming and the factory data-capture step. This can save you the 0.5-hour relearn time and ensure the module is correctly calibrated for your vehicle.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2007 Chevrolet Monte Carlo with a lifetime warranty, free shipping and no core charge. The full Chevrolet Monte Carlo module lineup covers other engine configurations as well.
Final Thoughts
The ECM in your 2007 Chevrolet Monte Carlo 3.5L is a critical component that controls engine performance. Recognizing symptoms like no-start, stalling, or P0601 codes can help you address failure early. Whether you choose repair or replacement, understanding the factory procedure—including data capture and relearn—ensures a successful outcome. Flagship One offers pre-programmed units that simplify the process, getting your Monte Carlo back on the road quickly.
