2006 Volkswagen Phaeton ECM and PCM Service Guide
In the 2006 Volkswagen Phaeton, the Engine Control Module (ECM) and Powertrain Control Module (PCM) manage fuel delivery, ignition timing, and transmission shifting. Failure of either unit can cause loss of power, stalling, or communication loss with diagnostic tools.
Quick Summary
- ECM removal and replacement typically requires 1.4 hours for the 4.2L engine.
- PCM replacement for the 4.2L version also takes about 1.4 hours.
- Both modules together may need up to 3.0 hours of labor.
- After install, a reset (0.3 h) and relearn (0.5 h) are usually required.
When a 2006 Volkswagen Phaeton exhibits erratic engine behavior or transmission glitches, the ECM and PCM are common suspects. This guide explains where the modules live, what work is involved, and how Flagship One’s pre‑programmed units simplify the process. You’ll learn the labor expectations, the post‑install steps the factory mandates, and practical tips to keep the electronics healthy.
What the PCM Does in a 2006 Volkswagen Phaeton
The ECM in the 2006 Volkswagen Phaeton interprets sensor data to control fuel injection, ignition timing, and emissions, while the PCM extends that control to the transmission. Together they ensure smooth power delivery and compliance with emission standards. Proper operation is essential for drivability and fuel economy, and any fault can trigger a range of diagnostic codes. Replacement units such as 2006 Volkswagen Phaeton replacement ECM are designed to match the original specifications and communicate seamlessly with the vehicle’s networks.
Where the PCM Is Located and What Replacement Involves

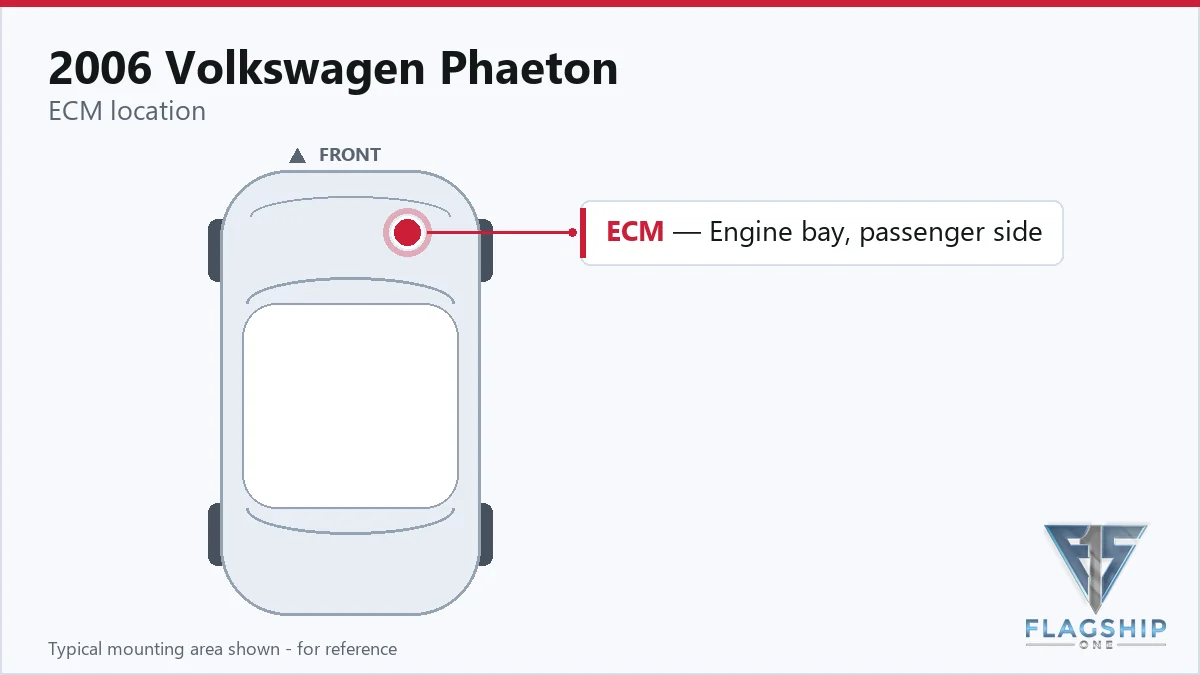

The control module sits inside the plenum chamber on the right side, positioned ahead of the Engine Control Module. Access typically involves removing surrounding covers to reach the ECM, then disconnecting the harness and bolts. For a 4.2L engine, the book time for removing and reinstalling the ECM is 1.4 hours, while the PCM requires the same 1.4 hours. If both modules are serviced together, the combined labor estimate rises to 3.0 hours. After physical installation, a reset (0.3 hours) and relearn procedures (0.5 hours each for ECM and PCM) are usually performed.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | 4.2L | 1.4 hr |
| Engine Control Module R&R | One | 2.7 hr |
| Engine Control Module R&R | Both | 3.0 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | 4.2L | 1.4 hr |
| Powertrain Control Module R&R | One | 2.7 hr |
Programming Requirements After Replacement
Factory service requires a reset of the ECM followed by a relearn of both the engine and power‑train control strategies. Flagship One supplies a a VIN-programmed replacement unit that arrives already calibrated, so those programming steps are completed before the unit reaches your shop.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM in the 2006 Volkswagen Phaeton include a no‑start condition, intermittent stalling, random misfire codes, and loss of transmission shifting. You may also see the check engine light illuminate with codes such as random cylinder misfire, indicating a broader control issue that often traces back to the modules.
Factory Service Bulletins Worth Knowing
Service bulletin #01-07-54 advises technicians not to replace the ECM when certain DTCs appear, while bulletin #01-09-09 provides updated programming steps for MIL‑on conditions and specific codes like P0300‑P0304, P0102, P1297, P0420 and P0441.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 01-07-54 | 01-07-54 – Engine Control Module (ECM), DO NOT Replace for These Diagnostic Trouble Codes (DTCs | — |
| 01-09-09 | Attachment: 01-09-09 – Update Programming, MIL ON, DTCs P0300-P0304, P0102, P1297, P0420 and P0 | — |
Protecting the PCM in Your 2006 Volkswagen Phaeton
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all grounds and connector pins are clean and tight.
- Avoid harsh jump‑starts that can stress electronic modules.
- Address any stored codes promptly before they multiply.
- Inspect connector seals regularly to keep moisture out.
Frequently Asked Questions
Can I replace the ECM on my 2006 Volkswagen Phaeton myself?
The replacement is feasible with the proper tools and the 1.4‑hour labor estimate, but you must still perform the reset and relearn steps to ensure correct operation.
What diagnostic codes indicate a PCM issue in this vehicle?
Codes related to transmission control, such as shift timing errors, often point to the PCM, especially when accompanied by erratic gear changes.
Is a factory‑programmed unit necessary for a 2006 Phaeton?
A VIN‑programmed unit eliminates the need for on‑site programming, reducing the risk of errors and saving time during installation.
When the ECM or PCM in your 2006 Volkswagen Phaeton needs attention, you can choose a brand‑new factory unit or a refurbished replacement that meets the original specifications. Both options require the same labor steps, but a pre‑programmed part removes the need for post‑install coding, allowing you to return the vehicle to service faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Volkswagen Phaeton with a lifetime warranty, free shipping and no core charge. The full Volkswagen Phaeton module lineup covers other engine configurations as well.
Final Thoughts
The 2006 Volkswagen Phaeton relies on its ECM and PCM for reliable performance. Proper replacement, reset, and relearn procedures keep the vehicle running smoothly, and Flagship One’s pre‑programmed units simplify the job. Consider your repair path and get the vehicle back on the road with confidence.
