2005 Volkswagen Phaeton 4.2L ECM and PCM Complete Replacement Guide
The Engine Control Module (ECM) in your 2005 Volkswagen Phaeton 4.2L is the primary computer managing fuel injection, ignition timing, and emissions. Failure often causes no-start, stalling, or drivability issues. The Powertrain Control Module (PCM) integrates ECM and transmission control functions in some configurations.
Quick Summary
- The ECM and PCM in the 2005 Phaeton 4.2L control engine and transmission functions; failure leads to no-start, stalling, or misfire codes.
- Factory book time for ECM replacement on the 4.2L is 1.4 hours; a reset takes 0.3 hours and a relearn 0.5 hours.
- The Transmission Control Module (TCM) sits in the plenum chamber on the right side, in front of the ECM, affecting access.
- Two service bulletins advise against replacing the ECM for certain DTCs and recommend a programming update instead.
- Flagship One units arrive VIN-programmed, eliminating the need for a factory relearn procedure after installation.
If your 2005 Volkswagen Phaeton 4.2L is experiencing no-start, stalling, or persistent check-engine lights, the Engine Control Module (ECM) or Powertrain Control Module (PCM) may be at fault. These modules are the brain of your vehicle’s engine and transmission management, processing sensor data to control fuel delivery, ignition timing, and shift points. Before replacing the module, it is important to confirm that the issue is not caused by a wiring fault, a failed sensor, or a software glitch that a simple update could fix. This guide covers the function of the ECM and PCM in your Phaeton, their location, replacement labor times, and the factory-recommended procedures. You will also learn about common failure symptoms, relevant service bulletins, and how a pre-programmed replacement unit can simplify the repair.
What the PCM Does in a 2005 Volkswagen Phaeton
The Engine Control Module (ECM) in your 2005 Volkswagen Phaeton 4.2L is a dedicated computer that interprets data from sensors such as the oxygen sensors, throttle position sensor, and crankshaft position sensor. It then adjusts fuel injector pulse width, ignition timing, and idle speed to maintain optimal performance and emissions. The Powertrain Control Module (PCM) combines ECM and transmission control functions in a single unit on some Phaeton variants. When the ECM fails, it may lose communication with the scan tool, store incorrect sensor readings, or stop sending commands to the fuel system entirely. For a reliable replacement, you can choose from Phaeton replacement ECMs that are built to match the original specifications and are pre-loaded with the correct software for your vehicle.
Where the PCM Is Located and What Replacement Involves

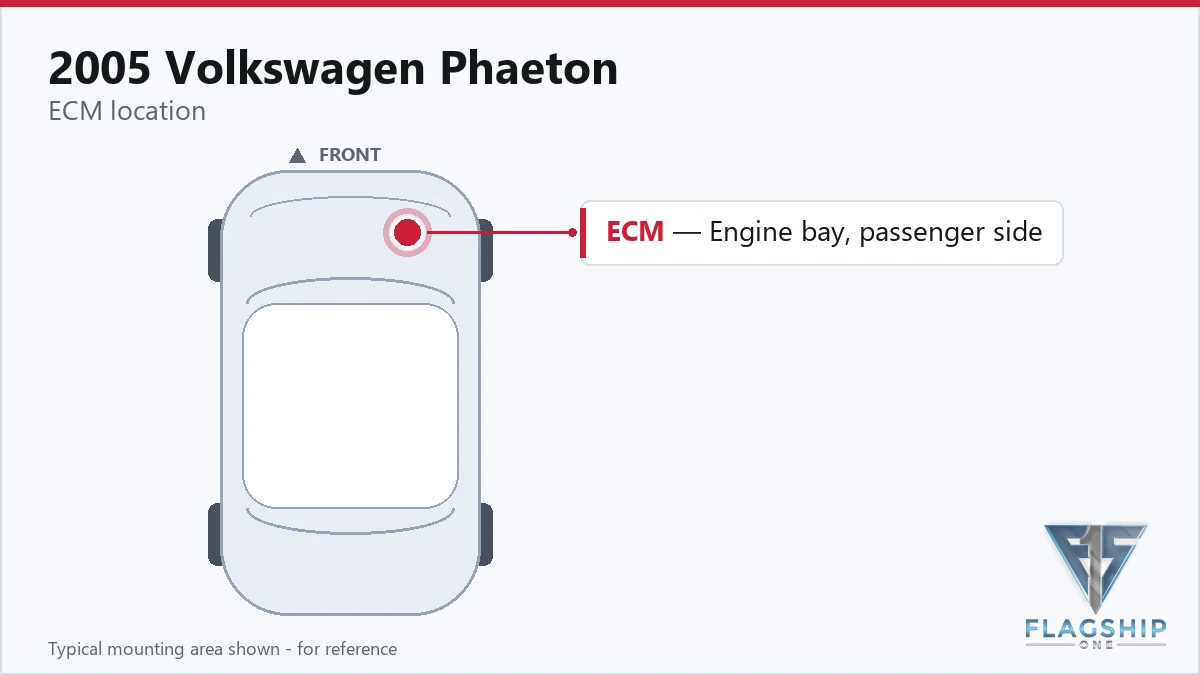

The Engine Control Module (ECM) on the 2005 Volkswagen Phaeton 4.2L is located inside the plenum chamber on the right side of the engine bay, behind the Transmission Control Module (TCM). The TCM sits in front of the ECM, so accessing the ECM may require removing the TCM first. According to factory labor times, replacing the ECM on the 4.2L engine is allotted 1.4 hours. If you are replacing only one of two possible modules (if your vehicle has a separate ECM and PCM), the time is 2.7 hours; replacing both modules is estimated at 3.0 hours. After installation, a reset procedure takes 0.3 hours and a relearn procedure takes 0.5 hours. The Powertrain Control Module (PCM) replacement on the 4.2L also carries a 1.4-hour book time, and replacing one of two PCMs is 2.7 hours. Ensure the battery is disconnected before handling any module to avoid electrical damage.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module R&R | 4.2L | 1.4 hr |
| Engine Control Module R&R | One | 2.7 hr |
| Engine Control Module R&R | Both | 3.0 hr |
| Engine Control Module Reset | All configurations | 0.3 hr |
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | 4.2L | 1.4 hr |
| Powertrain Control Module R&R | One | 2.7 hr |
Programming Requirements After Replacement
After replacing the ECM or PCM in your 2005 Volkswagen Phaeton 4.2L, the factory procedure requires a reset and a relearn. The reset takes 0.3 hours and the relearn takes 0.5 hours. Additionally, a Powertrain Control Module relearn is also 0.5 hours. These steps typically involve using a factory scan tool to initialize the module and teach it the vehicle’s immobilizer and sensor characteristics. However, when you purchase a VIN-programmed ECM from Flagship One, the unit arrives with your vehicle’s specific VIN and software already loaded. This means the factory relearn steps are already completed, so you can install the module and start the engine without needing a dealership visit for programming.
Symptoms of a Failing PCM
A failing ECM or PCM in the 2005 Volkswagen Phaeton 4.2L often produces symptoms such as an engine that cranks but does not start, intermittent stalling, rough idle, or a check-engine light that stays on. You may also notice misfire codes like random misfire code P0300 stored in the ECM fault memory, along with other codes such as P0102 (mass air flow circuit low), P1297 (manifold absolute pressure sensor connection), P0420 (catalyst system efficiency below threshold), or P0441 (evaporative emission system incorrect purge flow). The scan tool may fail to communicate with the module entirely, or the vehicle may enter a reduced-power mode. Transmission shifting issues can also occur if the PCM is involved, as it controls shift solenoids and line pressure.
Factory Service Bulletins Worth Knowing
Two factory service bulletins apply to the 2005 Volkswagen Phaeton 4.2L regarding the ECM. Bulletin #01-07-54 advises technicians not to replace the ECM for certain diagnostic trouble codes, as the issue may be caused by other factors such as wiring or sensor faults. Bulletin #01-09-09 addresses a condition where the MIL (check-engine light) is on and DTCs P0300-P0304, P0102, P1297, P0420, and P0441 are stored in ECM fault memory. The recommended fix is an update programming of the ECM, not a replacement. Always check for these bulletins before ordering a new module.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 01-07-54 | 01-07-54 – Engine Control Module (ECM), DO NOT Replace for These Diagnostic Trouble Codes (DTCs | — |
| 01-09-09 | Attachment: 01-09-09 – Update Programming, MIL ON, DTCs P0300-P0304, P0102, P1297, P0420 and P0 | — |
Protecting the PCM in Your 2005 Volkswagen Phaeton
- Keep the battery and charging system in good condition; low voltage or voltage spikes can damage the ECM.
- Ensure all ground connections and module connectors are clean, tight, and free of corrosion.
- Avoid jump-starting the vehicle with incorrect polarity or using a fast charger directly on the battery without disconnecting the module.
- Address any diagnostic trouble codes promptly; a small issue like a failing oxygen sensor can stress the ECM over time.
- Inspect the plenum chamber drain for blockages; water intrusion can short-circuit the ECM and TCM.
- When performing electrical work, always disconnect the battery negative terminal to prevent voltage surges.
Frequently Asked Questions
How do I know if my 2005 Volkswagen Phaeton 4.2L ECM is bad versus a sensor issue?
A scan tool is essential. If the ECM fails to communicate or shows multiple unrelated codes, the module may be faulty. However, codes like P0300-P0304 often indicate spark or fuel issues, not a bad ECM. Check service bulletins first, as a software update may resolve the problem without replacement.
Can I replace the ECM in my 2005 Phaeton 4.2L myself?
Yes, if you have basic mechanical skills. The ECM is located in the plenum chamber on the right side, behind the TCM. Factory book time is 1.4 hours. You will need to disconnect the battery, remove the TCM for access, unplug the connectors, and install the new module. After installation, a reset and relearn are required unless you use a pre-programmed unit.
What is the difference between the ECM and PCM on the 2005 Volkswagen Phaeton?
The ECM (Engine Control Module) manages engine functions like fuel and ignition. The PCM (Powertrain Control Module) combines engine and transmission control in one unit. Some Phaeton 4.2L models use separate modules, while others use a single PCM. Check your vehicle’s configuration before ordering a replacement.
When your 2005 Volkswagen Phaeton 4.2L needs an ECM or PCM replacement, you have two main options: have a shop install a new factory module and pay for programming, or choose a refurbished unit that arrives pre-programmed. Flagship One offers VIN-programmed modules that match your vehicle’s original software, eliminating the need for a dealership visit. This can save you time and labor costs while ensuring the module is ready to plug in and drive.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Volkswagen Phaeton with a lifetime warranty, free shipping and no core charge. The full Volkswagen Phaeton module lineup covers other engine configurations as well.
Final Thoughts
The 2005 Volkswagen Phaeton 4.2L relies on its ECM and PCM for smooth engine and transmission operation. Before replacing the module, check for relevant service bulletins and confirm that a software update or sensor repair won’t solve the issue. If replacement is necessary, a pre-programmed unit from Flagship One simplifies the process by removing the factory relearn step, getting you back on the road faster.
