2006 Toyota Prius ECM/PCM Relearn and Replacement Guide
In the 2006 Toyota Prius, the engine and powertrain control modules manage fuel, ignition, and hybrid system coordination. A failure can trigger communication loss, erratic engine behavior, or emission‑related codes, requiring relearn or replacement procedures.
Quick Summary
- Relearn procedures typically require about half an hour of labor.
- Full removal and replacement of the ECM or PCM usually takes around one and a half hours.
- Access to the module involves disconnecting the negative battery cable and removing the instrument panel sub‑assembly.
- VIN must be written after installation, and a 90‑second wait after battery disconnect prevents airbag pretensioner activation.
When a 2006 Toyota Prius experiences engine‑control related faults, you may need to relearn or replace its control modules. This guide explains what the ECM and PCM do, how to access them, the programming steps required after a swap, and what symptoms point to a problem. By following the outlined procedures, you can ensure a proper repair while avoiding common pitfalls.
What the PCM Does in a 2006 Toyota Prius
The engine control module (ECM) and powertrain control module (PCM) in a 2006 Toyota Prius act as the brain for the hybrid power‑train, controlling fuel injection, ignition timing, and electric‑motor coordination. Their proper operation is essential for smooth acceleration, fuel efficiency, and compliance with emissions standards. 2006 Toyota Prius engine control modules are designed to communicate with numerous sensors, and any loss of that communication can trigger a range of diagnostic codes and drivability issues.
Where the PCM Is Located and What Replacement Involves
The ECM and PCM sit behind the instrument panel sub‑assembly. To reach them you must first disconnect the negative battery cable, wait at least 90 seconds, then remove the instrument panel sub‑assembly. Once the panel is out, the module can be unbolted and swapped. The factory book time for a full removal and replacement is 1.4 hours, while a simple relearn operation is listed at 0.5 hours.

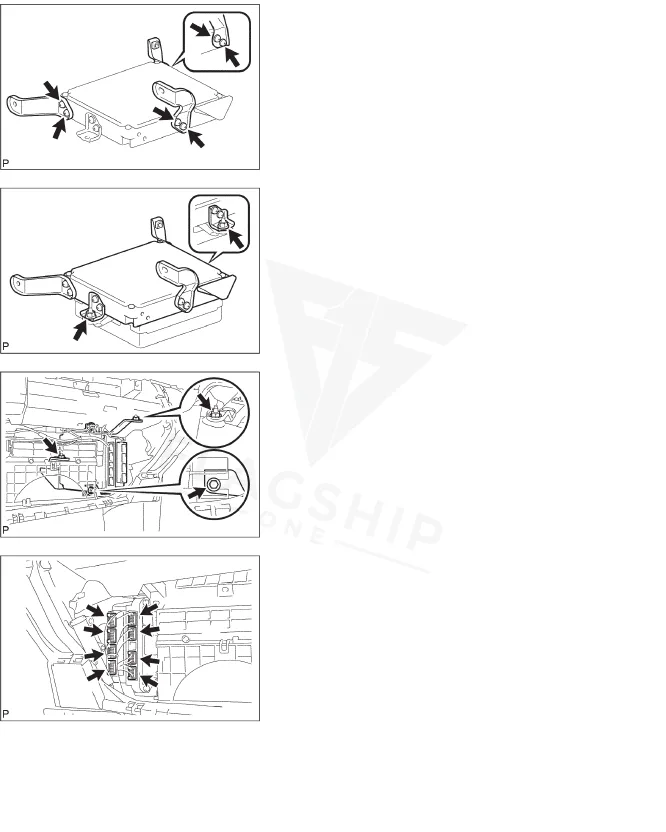

How to Reach the PCM on the 2006 Toyota Prius
- Disconnect cable from negative battery.
- Remove instrument panel sub-assembly.
- Remove the instrument panel (.
- Disconnect the 4 ECM connectors.
- Disconnect the 4 hybrid vehicle control ECU.
- Remove the 2 nuts and bolt, and ECM with bracket.
- Remove the 2 nuts and ECM.
- Remove the 6 screws and 3 No.
- Remove the 4 screws and 2 No.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module R&R | All configurations | 1.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
After installing a new unit, the factory procedure requires you to write the vehicle identification number to the module using the diagnostic tester display. The VIN entry must be confirmed as complete; if it is not, the write process should be repeated. Flagship One units arrive as a VIN-programmed replacement unit, so the VIN write step is already satisfied.
Symptoms of a Failing PCM
Typical signs of a failing ECM or PCM in a 2006 Prius include a no‑start condition, rough idle, unexpected stalling, or loss of hybrid‑system functionality. You may also see communication errors on a scan tool or experience shifting irregularities. When the fault code engine control module communication fault P0604 appears, it often indicates internal module failure or a loss of power to the unit.
Module Trouble Codes on the 2006 Toyota Prius
The following internal diagnostic codes are commonly recorded by the 2006 Toyota Prius when the ECM or PCM experiences issues:
Protecting the PCM in Your 2006 Toyota Prius
- Maintain a healthy charging system to avoid voltage fluctuations.
- Inspect and clean all ground connections and module connectors regularly.
- Avoid jump‑starting the vehicle, which can introduce voltage spikes.
- Address any diagnostic trouble codes promptly before they worsen.
- Ensure connector seals remain intact to prevent moisture intrusion.
Frequently Asked Questions
What is the typical labor time to replace the PCM on a 2006 Toyota Prius?
The factory book time lists about 1.4 hours for removal and replacement of the powertrain control module.
Do I need to wait after disconnecting the battery before working on the ECM?
Yes, a minimum of 90 seconds is recommended to prevent accidental airbag or seat‑belt pretensioner activation.
Why is VIN entry important after installing a new ECM or PCM?
The VIN must be written to the module to satisfy emissions regulations; failure to do so can cause the vehicle to fail state or local inspections.
When the control module in your 2006 Toyota Prius needs service, you can either have a qualified shop perform the relearn or replacement, or consider a refurbished unit that meets factory specifications. Both approaches address the underlying fault, but a refurbished module may reduce downtime and cost while still requiring the standard VIN programming step.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Toyota Prius with a lifetime warranty, free shipping and no core charge. The full Toyota Prius module lineup covers other engine configurations as well.
Final Thoughts
Proper handling of the ECM and PCM in your 2006 Toyota Prius helps restore reliable hybrid operation and keeps the vehicle compliant with emissions standards. Choose the repair method that fits your schedule and budget, and remember the VIN and safety steps are essential.
