2005 Toyota Prius ECM/PCM: Engine Computer Replacement Guide

If your 2005 Toyota Prius is experiencing starting issues, unusual running behavior, or has illuminated warning lights, the engine control module (ECM) or powertrain control module (PCM) may be the culprit. These onboard computers are the brain of your vehicle’s powertrain, and when they fail or lose programming, the effects range from inconvenient to stranded. This guide covers what these modules do, where they reside, the replacement process, and why proper VIN programming matters for your 2005 Prius. Whether you are diagnosing a no-start condition or planning a preventive replacement, understanding these components helps you make informed decisions about your vehicle’s repair.

What the PCM Does in a 2005 Toyota Prius

The engine control module in your 2005 Toyota Prius serves as the central computer responsible for managing the 1.5L four-cylinder gasoline engine and coordinating with the hybrid system. This is not a simple task—the ECM monitors dozens of sensors throughout the engine compartment, adjusting fuel injection timing, ignition advance, idle speed, and emissions control systems in real time. The module processes input from the mass airflow sensor, coolant temperature sensor, oxygen sensors, throttle position sensor, and many others, then outputs commands to actuators that control how your engine runs. On the 2005 Prius, the ECM also communicates with the hybrid vehicle control unit, sharing data about power demand and regenerative braking status. Because this vehicle uses a hybrid system, the ECM must coordinate with the motor generator units and battery management system. When the ECM fails or becomes corrupted, your vehicle may run poorly, fail to start entirely, or trigger check engine lights. The related powertrain control module handles transmission and drivetrain coordination, managing gear selection in the electronic continuously variable transmission (eCVT) and ensuring smooth power delivery from the engine to the wheels through the hybrid system. Both modules are critical for proper operation, and both require specialized programming after replacement. If you are searching for replacement engine computers for the Prius, both the ECM and PCM are available as direct-fit units designed for this specific model year.

Flagship One keeps Toyota Prius replacement engine computers in stock for exactly this failure pattern.

Where the PCM Is Located and What Replacement Involves

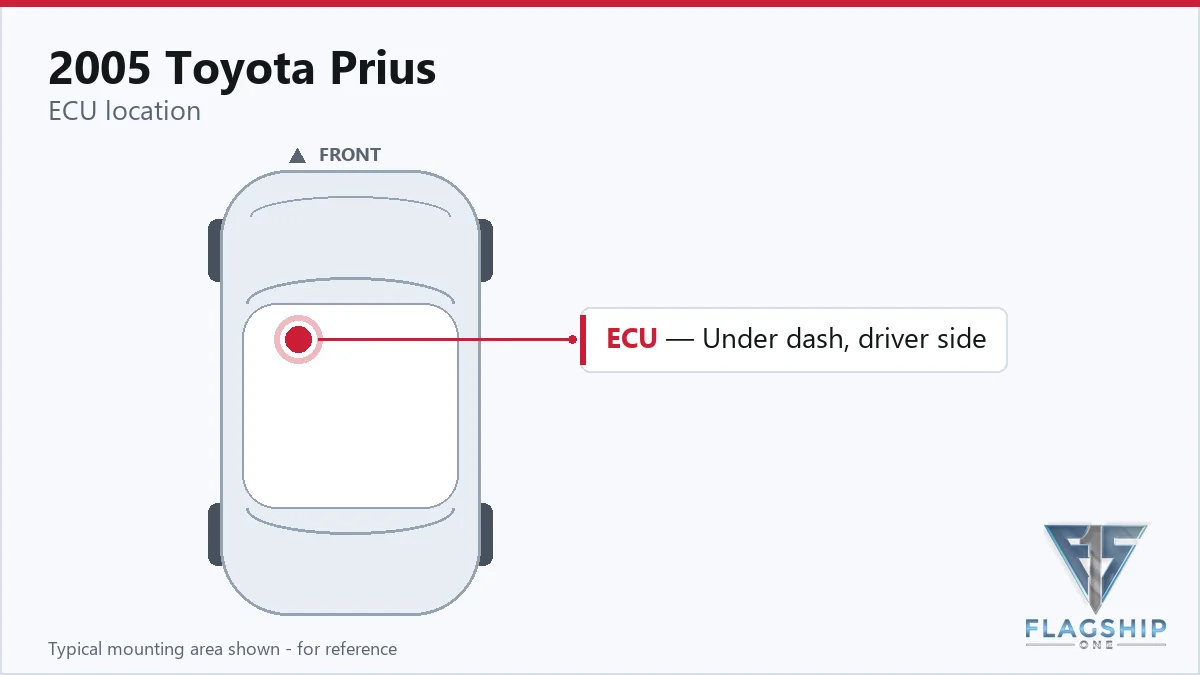

The factory wiring documentation places the engine ECU inside the instrument panel, meaning replacement requires removing dashboard trim pieces to gain access. This location inside the passenger compartment protects the module from under-hood heat and moisture but necessitates interior disassembly for service. The book time for ECM remove-and-replace is 1.4 hours, which accounts for the access required to reach the unit behind the instrument cluster area. After installing the new module, a relearn procedure consuming 0.5 hours must be performed to allow the ECM to adapt to your vehicle’s specific sensors and actuators. The powertrain control module follows a similar service procedure with its own 1.4-hour R&R time and 0.5-hour relearn procedure. Total combined labor for replacing both modules falls around three hours when accounting for access, installation, and initialization. The replacement process involves disconnecting the battery, removing necessary trim pieces, unplugging the old module, mounting the new unit, reconnecting all harnesses, and performing the relearn procedure using a diagnostic scan tool. Proper torque specifications do not apply to the module mounting itself, but all electrical connections must be fully seated and secure.

Programming Requirements After Replacement

After replacing the ECM or PCM in your 2005 Toyota Prius, the factory service procedure requires writing the vehicle identification number into the new module. This is not optional—vehicles with missing or incorrect VINs in their control modules will fail state and local emissions inspection and maintenance programs. The procedure specifies entering the VIN according to the diagnostic tester display, then verifying the written VIN matches your vehicle’s identification plate. If the VINs do not match, the procedure directs you to write the VIN again until verification succeeds. This programming requirement applies to 2004, 2005, and 2006 model year vehicles, with the Highlander HV added to the procedure via a June 2005 update. The good news is that when you purchase from Flagship One, you receive a VIN-programmed replacement unit with your specific VIN already written, eliminating the post-install programming step that would otherwise be required.

Every VIN-programmed replacement unit from Flagship One arrives with these steps already completed.

Symptoms of a Failing PCM

When the ECM or PCM in your 2005 Toyota Prius fails, the symptoms often appear suddenly and can mimic other mechanical problems. A no-start condition is common—the engine may crank normally but receive no fuel or spark because the computer is not outputting commands to the fuel injectors or ignition system. Stalling while driving is another frequent complaint, particularly at idle or under light load, as the module loses the ability to maintain proper idle speed and fuel mixture. Misfire codes such as P0300 (random/multiple cylinder misfire) or specific cylinder misfires frequently appear when the ECM cannot properly control fuel delivery or ignition timing. In some cases, the scan tool may not communicate with the ECM at all, indicating a failed module or corrupted software. Shifting issues can occur when the PCM loses communication with the transmission control system, causing harsh shifts, delayed engagement, or failure to shift into gear. Check engine lights with vague or multiple pending codes often accompany ECM problems, as the module detects cascading failures across multiple systems. If your vehicle displays any combination of these symptoms and standard repairs have not resolved the issue, the control module should be considered as a potential root cause.

Factory Service Bulletins Worth Knowing

A factory service bulletin dated June 3, 2005, updated content for the 2005 model year vehicles to include 2004 and 2006 model year vehicles in the VIN write procedure. The Highlander Hybrid was added to step 4 of the VIN Write Procedure on page 2 of the bulletin. The factory caution emphasizes the importance of entering the VIN during programming, noting that vehicles with missing VINs in the ECM or PCM will fail state and local vehicle emissions Inspection and Maintenance programs. This bulletin applies to your 2005 Prius and should be referenced if you experience emissions testing failures after module replacement.

Protecting the PCM in Your 2005 Toyota Prius

• Maintain healthy charging system: a weak or failing battery places stress on the ECM during startup, as voltage drops can cause the module to reset or behave erratically
• Keep electrical connections clean and secure: inspect ground straps and module connectors periodically, as corrosion or looseness can cause communication failures
• Avoid jump-starting from vehicles with different electrical systems: voltage spikes during jump starts can damage sensitive ECM circuitry
• Address diagnostic trouble codes promptly: ignoring warning lights allows underlying issues to worsen and potentially damage the module
• Protect connector seals during service: ensure all rubber boots and seals remain intact to prevent moisture intrusion into the module and harness connections
• Use quality replacement parts: when replacing sensors or actuators, choose OEM or equivalent components to prevent voltage irregularities from reaching the ECM

Frequently Asked Questions

Will a used ECM from another 2005 Toyota Prius work in my vehicle?

A used ECM will physically fit, but it will contain the VIN and programming from the donor vehicle. You would need to have the VIN rewritten using factory diagnostic equipment, and the module may have remaining internal faults from its previous installation.

Can I replace the ECM myself on my 2005 Prius, or do I need a professional?

While mechanically skilled DIYers can perform the removal and installation, the relearn procedure and any necessary VIN programming require a diagnostic scan tool capable of communicating with Toyota modules. Most home mechanics benefit from professional installation.

My 2005 Prius starts but runs rough and shows multiple misfire codes. Could this be the ECM?

Multiple random misfire codes often point to ECM issues because the computer is responsible for coordinating firing order and fuel delivery. However, other causes like bad spark plugs, vacuum leaks, or fuel delivery problems should be ruled out first.

How do I know if my 2005 Prius needs ECM replacement versus repair?

If your vehicle will not start and you have verified good battery voltage, fuel pressure, and spark, the ECM is a prime suspect. A scan tool that cannot communicate with the ECM or the presence of internal fault codes like P0601 strongly suggests module replacement is needed.

Does replacing the ECM reset the hybrid system on my Prius?

The hybrid system maintains its own battery management history, which is separate from the ECM. However, the new ECM will need to perform a relearn procedure to adapt to your specific hybrid system’s characteristics, which may take a few drive cycles.

If your 2005 Toyota Prius requires an engine control module replacement, you have two primary options: repair the existing module through a specialist offering re-flashing services, or install a new or refurbished replacement unit. Repair may be suitable for certain electrical faults, but many failures require complete module replacement. A refurbished unit from a reputable supplier undergoes testing to verify functionality, while new units offer the security of never having been used. Flagship One provides modules pre-programmed with your specific VIN, saving the step of post-install programming that would otherwise be required. Consider your budget, timeline, and whether your state requires emissions testing when making your decision.

Flagship One stocks a refurbished, VIN-programmed PCM for the 2005 Toyota Prius with a lifetime warranty, free shipping and no core charge. The full Toyota Prius module lineup covers other engine configurations as well.

Final Thoughts

The engine control module in your 2005 Toyota Prius is a critical component that manages both conventional engine functions and hybrid system coordination. When this module fails, your vehicle may not start, run properly, or pass emissions testing. Understanding the location in the instrument panel, the labor involved in replacement, and the VIN programming requirement helps you approach this repair knowledgeably. Whether you choose professional installation or plan to tackle the project yourself, ensuring the replacement module is properly programmed with your VIN is essential for your Prius to operate correctly and pass required inspections.
