2006 Toyota Avalon Engine Control Module Replacement and Programming Guide
The engine control module manages powertrain functions for your 2006 Toyota Avalon. Internal faults within this computer can disrupt communication between system sensors and actuators. When this unit fails, you may encounter drivability concerns or illumination of the check engine light on your dashboard.
Quick Summary
- Factory access requires removing the cowl side trim assembly.
- Book time for module removal and installation is 0.4 hours.
- VIN programming is required to pass emissions inspections.
- Service bulletins address shifting performance enhancements for this model.
Replacing the computer in your 2006 Toyota Avalon requires specific attention to factory procedures and programming protocols. You need to understand the physical access path and the digital configuration steps necessary for proper operation. This guide outlines the documented labor times and location details found in service information. You will learn about the removal process behind the trim panels and the critical VIN writing procedure. Understanding these requirements helps ensure your vehicle meets emissions standards and operates smoothly. Proper handling of the electronic control unit prevents common pitfalls associated with uninitialized modules. Reviewing the technical service bulletins provides context for calibration updates available for your specific model year. This information prepares you for a successful repair process without unnecessary complications during the installation phase.
What the PCM Does in a 2006 Toyota Avalon
This computer manages engine performance and transmission shifting logic for your 2006 Toyota Avalon. It processes data from various sensors to optimize fuel delivery and ignition timing. When the original unit develops internal faults, you may notice degraded driving characteristics or warning lights. Technicians often recommend replacement engine computers for the Avalon when diagnostic testing confirms hardware failure within the main processor. The system controls critical powertrain functions that affect overall vehicle reliability and efficiency. Without a functioning control module, the engine may not start or could enter a limp mode state. Proper operation ensures that all emissions systems function within designed parameters for your specific model. Regular diagnostics help identify issues before they lead to complete system shutdowns. Maintaining this component is essential for long-term drivability and compliance with regulatory inspection programs in your region.
Where the PCM Is Located and What Replacement Involves

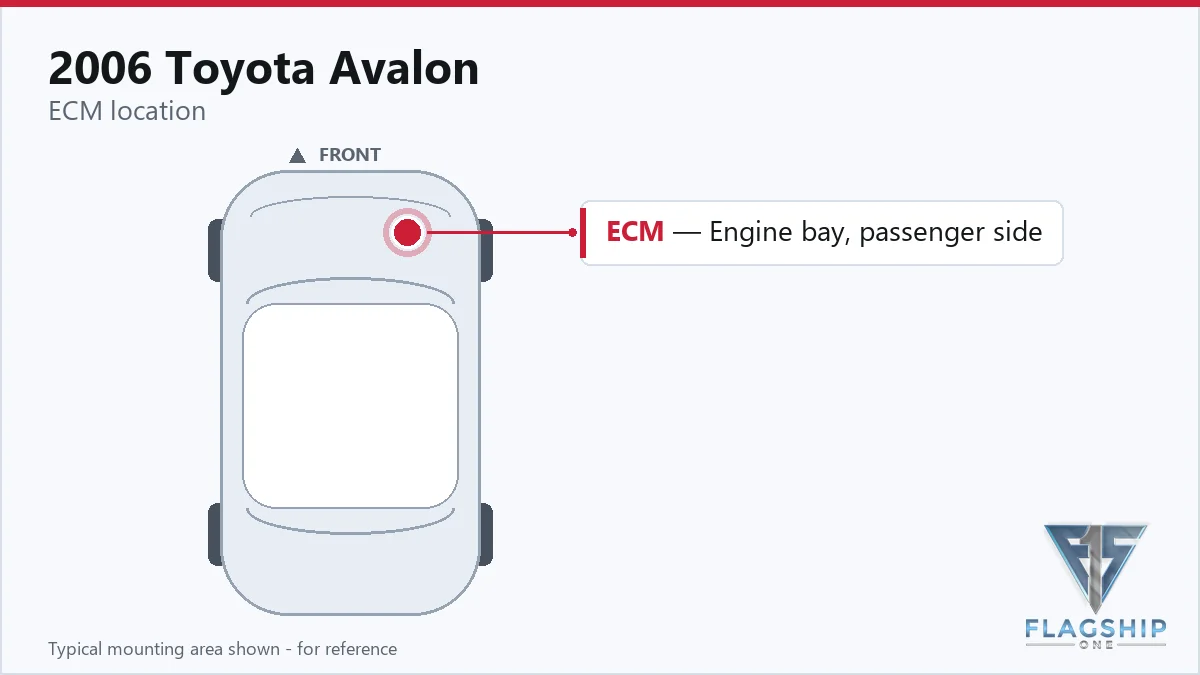

Service documentation indicates the computer resides behind the cowl trim panel on your 2006 Toyota Avalon. Accessing this component requires removing the cable from the negative battery terminal first. You must also remove the right-hand cowl side trim sub-assembly and the lower instrument panel under cover. The finish lower section of the instrument panel needs removal to complete the access path. Book time for engine control module removal and installation is 0.4 hours according to standard labor guides. Powertrain control module removal and installation also carries a book time of 0.4 hours for this vehicle. Relearn procedures for the engine control module typically require 0.5 hours of labor. The powertrain control module relearn process similarly allocates 0.5 hours in the service documentation. These steps ensure safe access to the electronic unit housed within the interior trim sections. Following the documented sequence prevents damage to surrounding components during the service operation.
How to Reach the PCM on the 2006 Toyota Avalon
- Disconnect cable from negative battery.
- Remove front door scuff plate rh (.
- Remove cowl side trim sub-assembly rh.
- Remove instrument panel under cover sub.
- Remove instrument panel finish lower.
- Disconnect the 5 connectors from the ECM.
- Remove the 2 nuts, bolt and ECM.
- Remove the 2 screws to separate the ECM bracket.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
Programming Requirements After Replacement
Factory instructions state you must enter the VIN using the diagnostic tester display interface after installation. Omitting the VIN entry may cause your vehicle to fail certain state or local emissions compliance checks. If the status does not match, you should re-enter the VIN following the completion message. Choosing a VIN-programmed replacement unit eliminates the need for these manual configuration steps upon arrival. This ensures the module is ready for operation without additional dealer tool requirements. Proper programming prevents issues associated with uninitialized modules during vehicle operation. Your vehicle benefits from pre-configured settings that align with factory specifications for the 2006 model year. This approach streamlines the repair process and reduces potential errors during the initialization phase.
Symptoms of a Failing PCM
Common signs of module failure include no-start conditions, stalling, or misfire codes appearing on your 2006 Toyota Avalon. You may experience dead scan-tool communication or shifting issues related to transmission control. Internal processor faults often trigger specific diagnostic trouble codes stored within the system memory. A code like internal random access memory indicates a problem with the control module hardware itself. These errors suggest the computer cannot process data correctly for engine management functions. Drivability concerns may worsen over time if the underlying electronic fault remains unaddressed. Warning lights on the dashboard often accompany these performance degradations during normal driving. Addressing these symptoms promptly helps prevent further complications with related powertrain components. Reliable operation depends on the integrity of the main processing unit within your vehicle.
Module Trouble Codes on the 2006 Toyota Avalon
The following list includes module-internal trouble codes documented for this vehicle. These codes specifically relate to processor performance and internal circuit malfunctions. Reviewing them helps identify if the computer requires replacement rather than sensor repair.
Factory Service Bulletins Worth Knowing
Technical service bulletin EG029-07 addresses ECM calibration for 06-07 Avalon models. This update provides improved shifting performance and smoothness characteristics for your vehicle. Another document, SS002-07, covers Toyota models from 01-08 regarding the flash reprogramming procedure using Techstream. These bulletins indicate that software updates may improve drivability characteristics without hardware changes. Technicians reference these numbers when diagnosing shifting concerns or preparing to flash the module. Checking for applicable calibrations ensures your 2006 Toyota Avalon benefits from the latest factory improvements. Always verify bulletin applicability before proceeding with reprogramming efforts during service.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| EG029-07 | :EG029-07: 06-07 Avalon: ECM Calibration: Enhancement to Shifting Performance & Smoothness | — |
| SS002-07 | :SS002-07: 01-08 Applicable Toyota: Techstream ECU Flash Reprogramming Procedure | — |
Protecting the PCM in Your 2006 Toyota Avalon
- Maintain charging-system health to prevent voltage spikes damaging the computer.
- Keep connector seals intact to protect against moisture intrusion.
- Address diagnostic codes promptly to avoid further internal stress.
- Ensure clean grounds and connectors for stable signal communication.
- Avoid jump-start voltage spikes that may harm electronic components.
Frequently Asked Questions
Does the 2006 Toyota Avalon require VIN programming after ECM replacement?
Yes, factory procedures require entering the VIN to avoid emissions inspection failures. Units purchased from Flagship One arrive with this step already completed.
Where is the engine computer located on the 2006 Toyota Avalon?
Service documentation indicates the computer resides behind the cowl trim panel. Access involves removing several instrument panel covers and the battery cable.
Are there service bulletins for shifting issues on the 2006 Toyota Avalon?
Bulletin EG029-07 covers ECM calibration for 06-07 Avalon models. Technicians may reference this during diagnostic procedures.
