2006 Dodge Dakota PCM Replacement Guide
In the 2006 Dodge Dakota, the Powertrain Control Module (PCM) manages engine timing, fuel delivery, emissions monitoring and communication with the ABS. A failure typically results in loss of engine control, diagnostic trouble codes and possible VIN broadcast issues on the vehicle network.
Quick Summary
- PCM is mounted in the right‑inner corner of the engine compartment.
- Factory cautions require temporary ABS controller disconnection during replacement.
- After install, the new PCM must be programmed with the original VIN and mileage.
- Flagship One units arrive pre‑programmed, eliminating the post‑install VIN step.
If your 2006 Dodge Dakota is showing no‑start conditions, rough idle, or a P0601 code, the Powertrain Control Module may need attention. This guide explains where the PCM lives, how long the labor typically takes, and what programming steps are required after a swap. You will understand the precautions needed to avoid ABS communication problems and see how a pre‑programmed replacement can simplify the job.
What the PCM Does in a 2006 Dodge Dakota
The Powertrain Control Module in the 2006 Dodge Dakota coordinates engine timing, fuel injection, emissions monitoring and communicates with the ABS system. It also broadcasts the vehicle identification number over the data bus, which some ABS configurations depend on for proper operation. Proper PCM function is essential for engine performance and emission compliance. replacement powertrain control modules for the 2006 Dodge Dakota ensure the vehicle runs as designed.

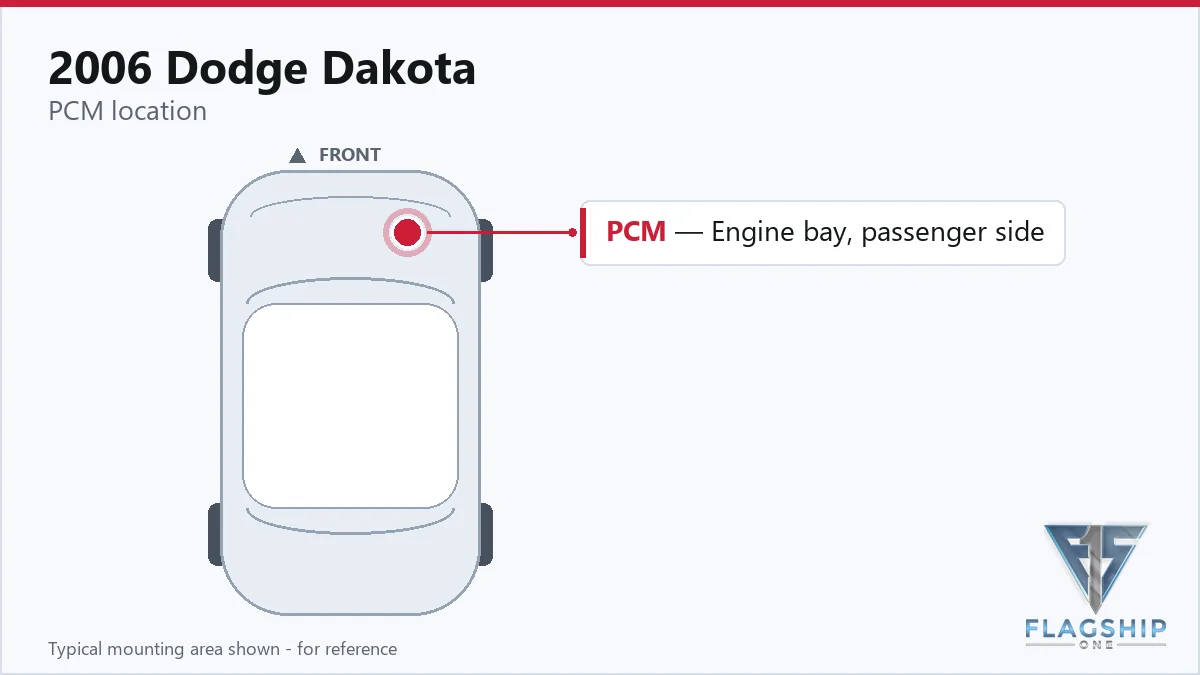

Where the PCM Is Located and What Replacement Involves
The PCM is attached to the right‑inner corner of the engine compartment in the 2006 Dodge Dakota. Access typically involves reaching into that corner, disconnecting the electrical connector and removing the mounting hardware. Labor times from the factory manual list 0.4 hours for removal and replacement, and an additional 0.5 hours for a relearn procedure after installation. No torque specifications were provided, so follow standard connector securing practices.
How to Reach the PCM on the 2006 Dodge Dakota
- Disconnect and isolate the negative battery cable.
- Unplug the four 38-way connectors from PCM.
- Remove three PCM mounting bolts, and position ground strap.
Work with the ignition off, and treat the module as static-sensitive: avoid touching the connector pins at any point.
| Operation | Configuration | Book Time |
|---|---|---|
| Engine Control Module Relearn | All configurations | 0.5 hr |
| Engine Control Module R&R | All configurations | 0.4 hr |
| Powertrain Control Module Relearn | All configurations | 0.5 hr |
| Powertrain Control Module R&R | All configurations | 0.4 hr |
Programming Requirements After Replacement
After the PCM is installed, the factory procedure calls for using a diagnostic scan tool to write the original VIN and mileage into the new unit. This step prevents diagnostic trouble codes related to the VIN broadcast. Flagship One supplies a VIN‑programmed replacement unit, so the reprogramming action is already completed when you receive it. a VIN‑programmed replacement unit eliminates the need for that final scan‑tool step.
Symptoms of a Failing PCM
When the PCM in a 2006 Dodge Dakota fails, you may experience a no‑start condition, intermittent stalling, rough idle, or loss of power‑train related diagnostic communication. The engine may also trigger emissions related codes or cause shifting irregularities. The presence of processor clock signal malfunction often points directly to a PCM internal fault.
Module Trouble Codes on the 2006 Dodge Dakota
The following internal diagnostic trouble code is documented for the 2006 Dodge Dakota PCM:
| Code | Meaning | Full Guide |
|---|---|---|
| P0601 | Internal memory checksum error | Full P0601 guide → |
Factory Service Bulletins Worth Knowing
Factory service bulletins include #08-030-06 Rev. A Powertrain Control Module Initialization and Rc-If08-06 Safety Recall F08 Reprogram CCN Control Module, which address initial programming and recall‑related reprogramming steps.
| Bulletin | Subject | What It Addresses |
|---|---|---|
| 08-030-06 Rev. A | 08-030-06 Rev. A Powertrain Control Module Initialization | — |
| — | Rc-If08-06 Safety Recall F08 Reprogram CCN Control Module | — |
Protecting the PCM in Your 2006 Dodge Dakota
- Maintain a healthy charging system to avoid voltage spikes.
- Ensure all ground connections are clean and secure.
- Avoid repeated jump‑starts that can stress electronic modules.
- Address any diagnostic codes promptly before they recur.
- Keep connector seals intact to protect against moisture.
Frequently Asked Questions
What should I do if the 2006 Dodge Dakota PCM shows a P0601 code?
A P0601 code indicates a processor clock signal issue, which often requires PCM replacement. Verify power and ground integrity first, then consider a Flagship One replacement that arrives pre‑programmed.
Do I need to disconnect the ABS controller when swapping the PCM in a 2006 Dodge Dakota?
Yes, the factory cautions recommend temporarily disconnecting the ABS controller to prevent VIN broadcast related DTCs during PCM replacement.
Is a diagnostic scan tool still required after installing a Flagship One PCM in a 2006 Dodge Dakota?
No, Flagship One units are shipped with the correct VIN and mileage already programmed, so the post‑install scan‑tool step is not necessary.
When the PCM in your 2006 Dodge Dakota needs service, you can choose a new factory‑sourced unit or a refurbished replacement. A Flagship One replacement arrives pre‑programmed with the correct VIN and mileage, reducing the steps you must perform and helping you get the vehicle back on the road faster.
Flagship One stocks a refurbished, VIN-programmed PCM for the 2006 Dodge Dakota with a lifetime warranty, free shipping and no core charge. The full Dodge Dakota module lineup covers other engine configurations as well.
Final Thoughts
The Powertrain Control Module is a critical component of the 2006 Dodge Dakota. Whether you opt for a new or refurbished unit, proper installation and programming ensure reliable operation. Consider a Flagship One pre‑programmed replacement to simplify the process.
